M0371YH450
M0371YH450

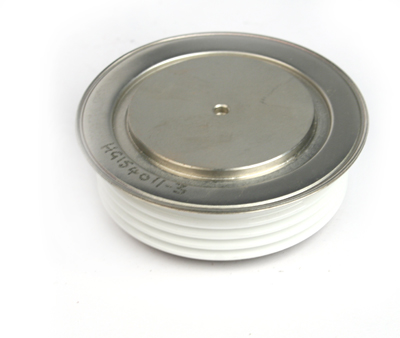

Images are for reference only, see product specifications for full details

M0371YH450 In stock

M0371YH450 Soft Recovery Diode 4500V, 371A

The M0371YH450 soft recovery diode is available with a range of reverse recovery characteristics tailored to meet the requirements of both freewheeling and snubber applications.

  • Blocking voltage of 4500V
  • Very low leakage current
  • Short recovery time
  • Soft reverse recovery for low EMI/RFI
  • Suitable for RCD snubbers, voltage clamping and snubberless applications
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

This soft recovery diode features a blocking voltage of 4500V and an average current rating of 371A. This device is particularly suitable where soft recovery is required, such as RCD snubbers, voltage clamping and snubberless applications.

Approvals
RoHS Compliant

Typical Applications

  • Antiparallel diode for high frequency switching devices
  • Antisaturation diode
  • Snubber diode
  • Free wheeling diode

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

4500V

Maximum Peak Surge Current (IFSM)

4900A

Maximum Non-Repetitive Reverse Blocking Diode (VRSM)

4600V

Nominal RMS Forward Current IF(RMS)

691A

DC Forward Current IF(d.c)

609A

Capacity for Fusing (I2t)

120 x 103 A2s

Threshold Voltage (VT0)

1.05V

Slope Resistance (RF)

1.65mΩ

Thermal Resistance Junction to Heatsink (RthJK) Double side cooled

0.1 K/W

Thermal Resistance Junction to Heatsink (RthJK) Single side cooled

0.2 K/W

Peak Reverse Current (IRRM)

20mA

Maximum Peak Forward Voltage (VFM)

2.1V

Operating Temperature Range (TJ op)

-40°C to +150°C

Product Type

Soft Recovery Diode Diode

Compliance

RoHS Compliant

Maximum Average Forward Current IF(AV)M

371A

IXYS UK Westcode is one the of the UK’s leading semiconductor manufacturers. Formerly known as Westcode, they launched the world’s first commercial rectifier in the early 1920’s. Westcode was acquired by IXYS Corporation in 2002, and shortly after changed its name to IXYS UK Westcode. Today, they manufacture high power thyristor capsules (GTO, fast & standard recovery), diode capsules (fast & standard recovery) and IGBT capsules.

As IXYS UK Westcode’s Official UK Distributor, we stock Europe’s largest range of IXYS UK’s semiconductors, fuses and capacitors. The company provide a large range fuses offering fast-acting, ultra rapid protection against device rupture and external short circuits. IXYS UK’s range of fuses feature proven advanced technology to international standards and are UL recognised. IXYS UK Westcode offer a range of power electronic capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

One of the industries leading power semiconductor manufacturers, IXYS UK Westcode supplies high technology components to a wide range of applications, including: welding, AC and DC drives, rectifier supplies, uninterruptible power supplies, motor soft starts, transportation, induction heating and power conditioning.

IXYS UK Westcode

IXYS UK Westcode, formerly Westcode Semiconductors has been at the forefront of power semiconductor design. Supporting a truly worldwide and diverse market place, IXYS UK Westcode has evolved in to one of the world’s leading manufacturers of high power semiconductors.

IXYS UK Westcode is now part of Littelfuse. Together, IXYS and Littelfuse will leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS UK Westcode products by getting in touch with GD Rectifiers.
