MCD501-18IO2

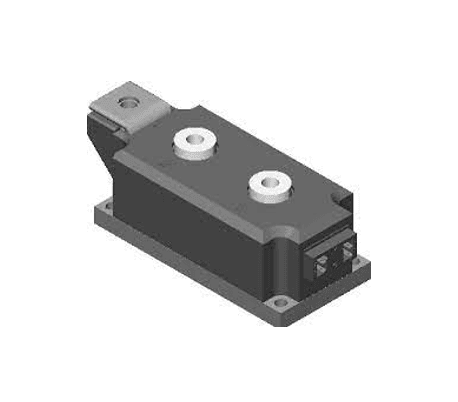

MCD501-18IO2 Thyristor/Diode Module 1800V, 503A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / [email protected]

The MCD501-18IO2 pressure contact thyristor/diode module is designed to industry standard with auxiliary cathode connections rated 1800V, 503A with standard housing.

  • Planar passivated chip
  • Long-term stability
  • Direct copper bonded Al2O3-ceramic
  • Advanced power cycling

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The MCD501-18IO2 thyristor/diode module is suitable for applications such as industrial DC drives, marine/rail propulsion systems, wind power converters, electrochemical power supplies, soft starters, variable speed drives and traction converters.

Approvals
RoHS Compliant

Typical Applications

  • Softstart AC motor control
  • DC motor control
  • Power converters
  • AC power control
  • Lighting and temperature control

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, , , , ,

Maximum Repetitive Reverse Voltage (VRRM)

1800V

Maximum Non-Repetitive Reverse Voltage (VRSM)

1900V

Maximum Average Forward Current IT(AV)M

503A

Maximum Repetitive Forward Blocking Voltage (VDRM)

1800V

Maximum Gate Trigger Current (IGT)

250mA

Maximum RMS Forward Current IT(RMS)M

1195A

Value for Fusing (I2t)

1.05 x 106 A2s

Threshold Voltage (VT0)

0.85V

Operating Junction Temperature (TVJ op)

-40°C to 125°C

Product Type

Thyristor/Diode Module

Compliance

RoHS Compliant

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.
