Images are for reference only, see product specifications for full details

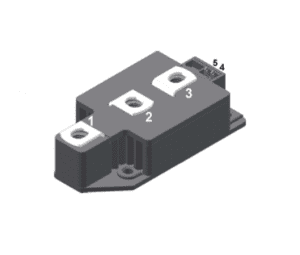

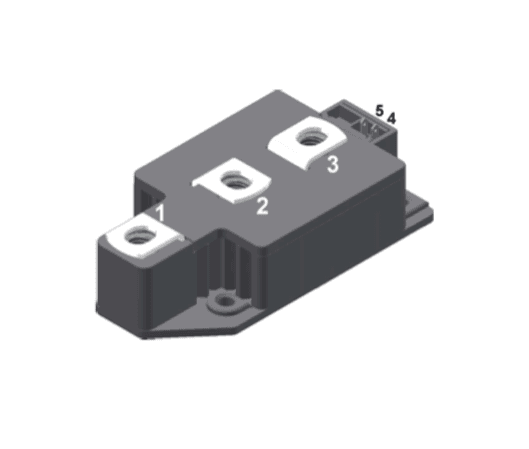

MCD310-18IO1 Thyristor/Diode Module 1800V, 320A
The MCD310-18IO1 thyristor/diode module is suitable for applications such as industrial DC drives, marine/rail propulsion systems, wind power converters, electrochemical power supplies, soft starters, variable speed drives and traction converters.
Approvals
RoHS Compliant, UL Recognised
Typical Applications
- Softstart AC motor control
- DC motor control
- Power converters
- AC power control
- Lighting and temperature control
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | AC Power Control, DC Motor Control, Lighting and Temperature Control, Power converter, Softstart AC motor control |
| Maximum Repetitive Reverse Voltage (VRRM) | 1800V |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1900V |
| Maximum Average Forward Current (ITAV) | 320A |
| Maximum Repetitive Forward Blocking Voltage (VDRM) | 1800V |
| Maximum Gate Trigger Current (IGT) | 150mA |
| RMS Forward Current IT(RMS) | 500A |
| Reverse Current, Drain Current (IR/D) | 1mA |
| Value for Fusing (I2t) | 423.2 kA2s |
| Threshold Voltage (VT0) | 0.80V |
| Operating Temperature (Top) | -40°C to 125°C |
| Package/Case | Y2 |
| Mounting Style | Screw Mount |
| Product Type | Thyristor/Diode Module |
| Compliance | RoHS Compliant, UL Recognised |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
Learn more about IXYS products by getting in touch with GD Rectifiers.
Datasheet
MCD310-18io1.pdf
