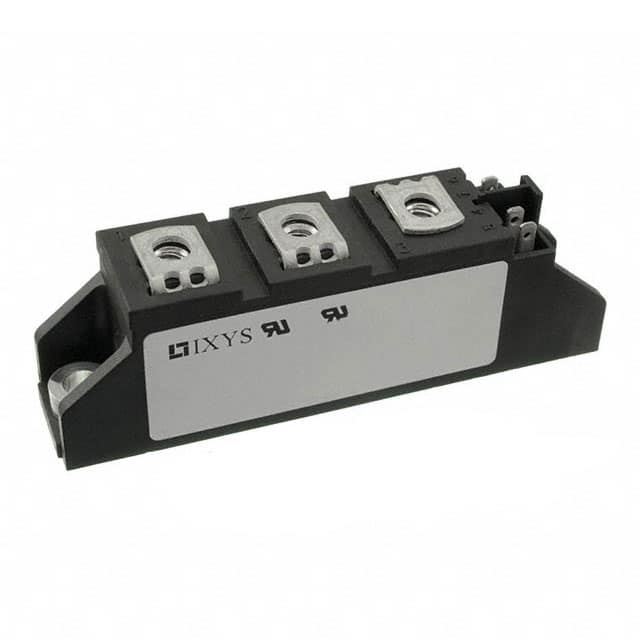

MCC56-12IO8B Dual Thyristor Module 2x1200V, 60A
The MCC56-12IO8B dual thyristor module simplifies the conventional multilayer module construction by the DCB (Direct Copper Bonding) technique.
- Thyristor for line frequency
- Direct copper bonded AI2O3-ceramic base plate
- Planar passivated chip
- Soldering pins for PCB mounting
- Advanced power cycling
The MCC dual thyristor series have screw terminals, offer space and weight savings and are designed to meet the general requirements of power control applications by providing high current handling capabilities.
Approvals
RoHS Compliant, UL Recognised
Typical Applications
- Softstart AC motor control
- Power converters
- AC power control
- Lighting and temperature control
- DC motor control
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | AC Power Control, DC Motor Control, Lighting and Temperature Control, Power Converters, Softstart AC motor control |
| Maximum Repetitive Reverse Voltage (VRRM) | 2x 1200V |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1300V |
| Value for Fusing (I2t) | 11.3 kA2s |
| Forward Voltage Drop (VT) | 1.24V |
| Reverse Current, Drain Current (IR/D) | 200μA |
| Threshold Voltage (VT0) | 0.85V |
| Slope Resistance (rT) | 3.7mΩ |
| Thermal Resistance Junction to Case (RthJC) | 0.45 K/W |
| Thermal Resistance Junction to Heatsink (RthCH) | 0.2 K/W |
| Total Power Dissipation (Ptot) | 222W |
| Maximum Forward Surge Current (ITSM), 125°C 50Hz, 60Hz | 1.28kA, 1.38kA |
| Turn-off Time (Tq) | 150μs |
| Operating Temperature (Top) | -40°C to +100°C |
| Package/Case | TO-240 AA |
| Mounting Style | Screw Mount |
| Type | Phase Leg |
| Product Type | Thyristor Module |
| Compliance | RoHS Compliant, UL Recognised |
