MCC56-18IO1B HT In stock

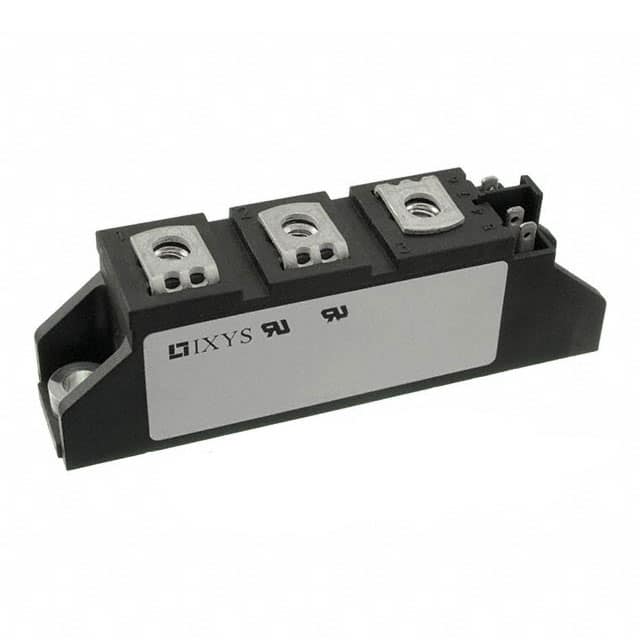

MCC56-18IO1B Dual Thyristor Module 2x1800V, 60A

The MCC56-18IO1B dual thyristor module has screw terminals, offers space and weight savings and are designed to meet the general requirements of power control applications by providing high current handling capabilities.

  • Thyristor for line frequency
  • Direct copper bonded AI2O3-ceramic base plate
  • Planar passivated chip
  • Soldering pins for PCB mounting
  • Advanced power cycling
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The MCC56-18IO1B dual thyristor module simplifies the conventional multilayer module construction by the DCB (Direct Copper Bonding) technique.

Approvals
RoHS Compliant, UL Recognised

Typical Applications

  • Softstart AC motor control
  • Power converters
  • AC power control
  • Lighting and temperature control
  • DC motor control

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL RecognisedREACH Compliant

Manufacturer

Applications

, , , ,

Maximum Repetitive Reverse Voltage (VRRM)

2x 1800V

Maximum Non-Repetitive Reverse Voltage (VRSM)

1900V

Value for Fusing (I2t)

11.3 kA2s

Forward Voltage Drop (VT)

1.24V

Reverse Current, Drain Current (IR/D)

200μA

Threshold Voltage (VT0)

0.85V

Slope Resistance (rT)

3.7mΩ

Thermal Resistance Junction to Case (RthJC)

0.45 K/W

Thermal Resistance Junction to Heatsink (RthCH)

0.2 K/W

Total Power Dissipation (Ptot)

222W

Maximum Forward Surge Current (ITSM), 125°C 50Hz, 60Hz

1.28kA, 1.38kA

Turn-off Time (Tq)

150μs

Operating Temperature (Top)

-40°C to +100°C

Package/Case

TO-240 AA

Mounting Style

Screw Mount

Type

Phase Leg

Product Type

Thyristor Module

Compliance

RoHS Compliant, UL Recognised

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.
