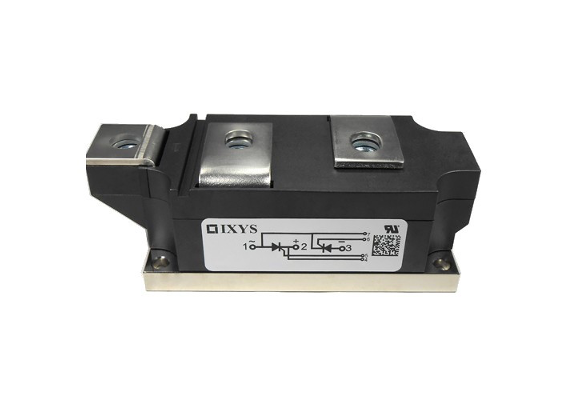

Images are for reference only, see product specifications for full details
MCC431-24IO2 Dual Thyristor Module 2x2400V, 431A
This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk
The MCC431-24IO2 dual thyristor module offers space and weight savings and is designed to meet the general requirements of power control applications by providing high current handling capabilities.
- International standard package
- Direct copper bonded AI2O3-ceramic with copper base plate
- Planar passivated chip
- Keyed gate/cathode twin pins
- Advanced power cycling
The MCC431-24IO2 dual thyristor module simplifies the conventional multilayer module construction by the DCB (Direct Copper Bonding) technique.
The MCC431-24IO2 is now obsolete and is not recommended for new designs.
Approvals
RoHS Compliant, UL Recognised
Typical Applications
- Softstarter motor control
- Power converters
- Heat and temperature control for industrial furnaces and chemical processes
- Lighting control
- Solid state switches
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Heat and temperature control for industrial furnaces and chemical processes, Lighting Control, Power Converters, Softstarter Motor Control, Solid State Switches |
| Maximum Repetitive Reverse Voltage (VRRM) | 2x 2400V |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 2500V |
| Value for Fusing (I2t) | 594×103 A2s |
| Threshold Voltage (VT0) | 1.00V |
| Slope Resistance (rT) | 0.41mΩ |
| Thermal Resistance Junction to Case (RthJC) Single Thyristor/Whole Module | 0.062W / 0.031W |
| Thermal Resistance Junction to Heatsink (RthCH) Single Thyristor/Whole Module | 0.02 K/W / 0.01 K/W |
| Maximum Forward Surge Current (ITSM) | 10.9kA |
| Turn-off Time (Tq) | 250μs |
| Virtual Junction Temperature (TVJ) | -40°C to +125°C |
| Mounting Style | Screw Mount |
| Type | Phase Leg |
| Product Type | Thyristor Module |
| Compliance | RoHS Compliant, UL Recognised |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
