IXFN140N20P In stock

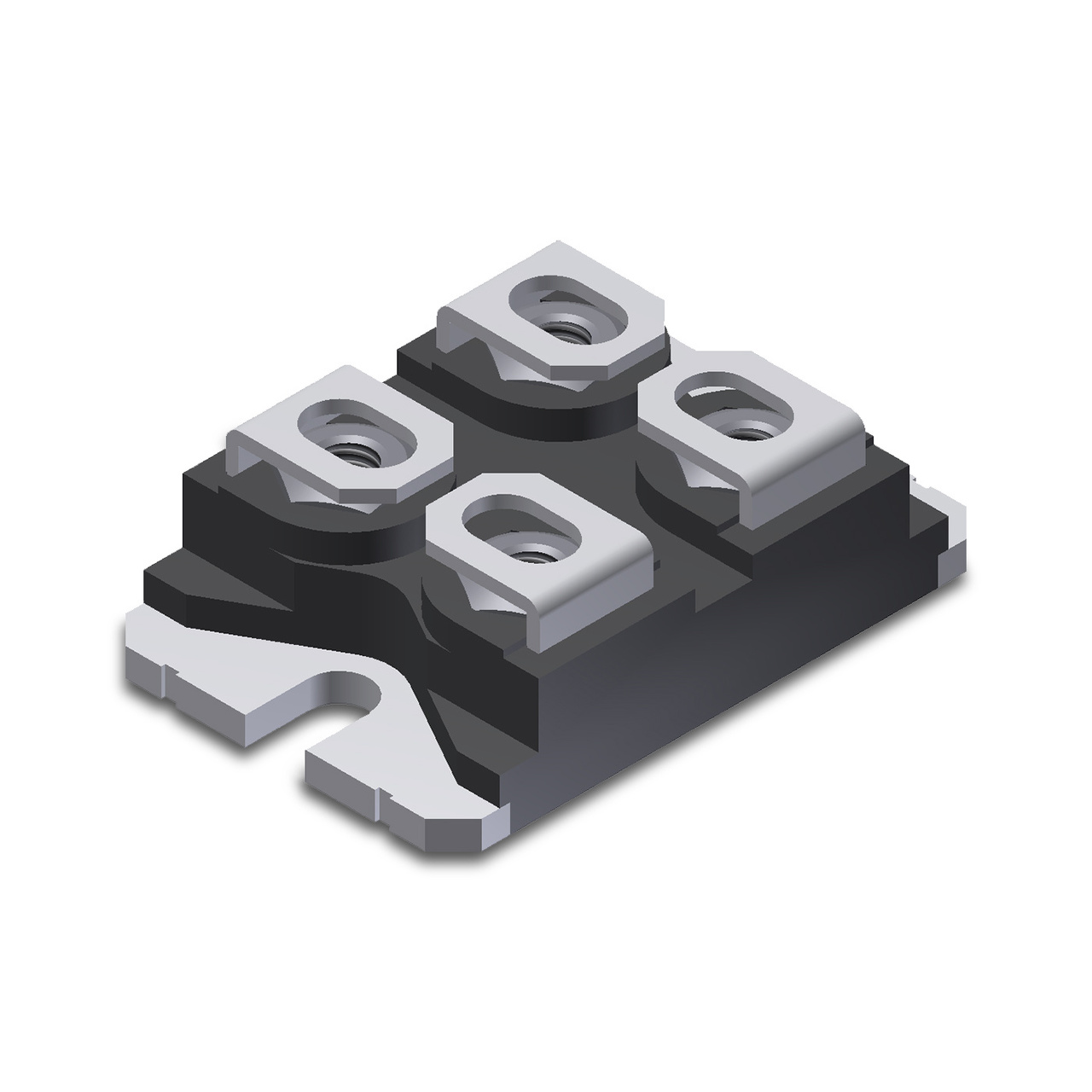

IXFN140N20P PolarHT™ HiPerFET™ Power MOSFET 200V, 115A

The IXFN140N20P is a PolarHT™ HiPerFET™ Power MOSFET, featuring low package inductance making it easy to drive and protect.

  • International standard package
  • Unclamped inductive switching (UIS) rated
  • Low package inductance
  • High power density
  • Space savings
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The IXFN140N20P PolarHT™ HiPerFET™ Power MOSFET also features a fast intrinsic diode and is suitable for AC motor drives, power supplies and battery chargers.

Approvals
RoHS Compliant, UL Recognised

Typical Applications

  • Battery chargers
  • Switched-mode and resonant-mode power supplies
  • DC choppers
  • Low voltage relays
  • Temperature and lighting controls

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL RecognisedREACH Compliant

Manufacturer

Applications

, , , ,

Drain Source Breakdown Voltage (VDSS)

200V

Continuous Drain Current (ID25)

115A

Configuration

Single

Package/Case

SOT-227-4

Mounting Style

Screw Mount

Product Type

Power MOSFET

Operating Junction Temperature (TJ)

-55°C to +150°C

Reverse Recovery Time (trr)

200na

Static Drain Source on Resistance RDS(on)

18Ω

Maximum Pulsed Drain Current (IDM)

280A

Drain Gate Voltage (VDGR)

200V

Gate Source Voltage (VGS) Continuous

±20V

Maximum Transient Gate Source Voltage (VGSM)

±30V

Repetitive Avalanche Current (IAR)

60A

Turn-on Delay Time TD (on)

30ns

Turn-off Delay Time TD (off)

150ns

Isolated Base

Yes

Compliance

RoHS Compliant, UL Recognised

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.
