IXFN120N20 In stock

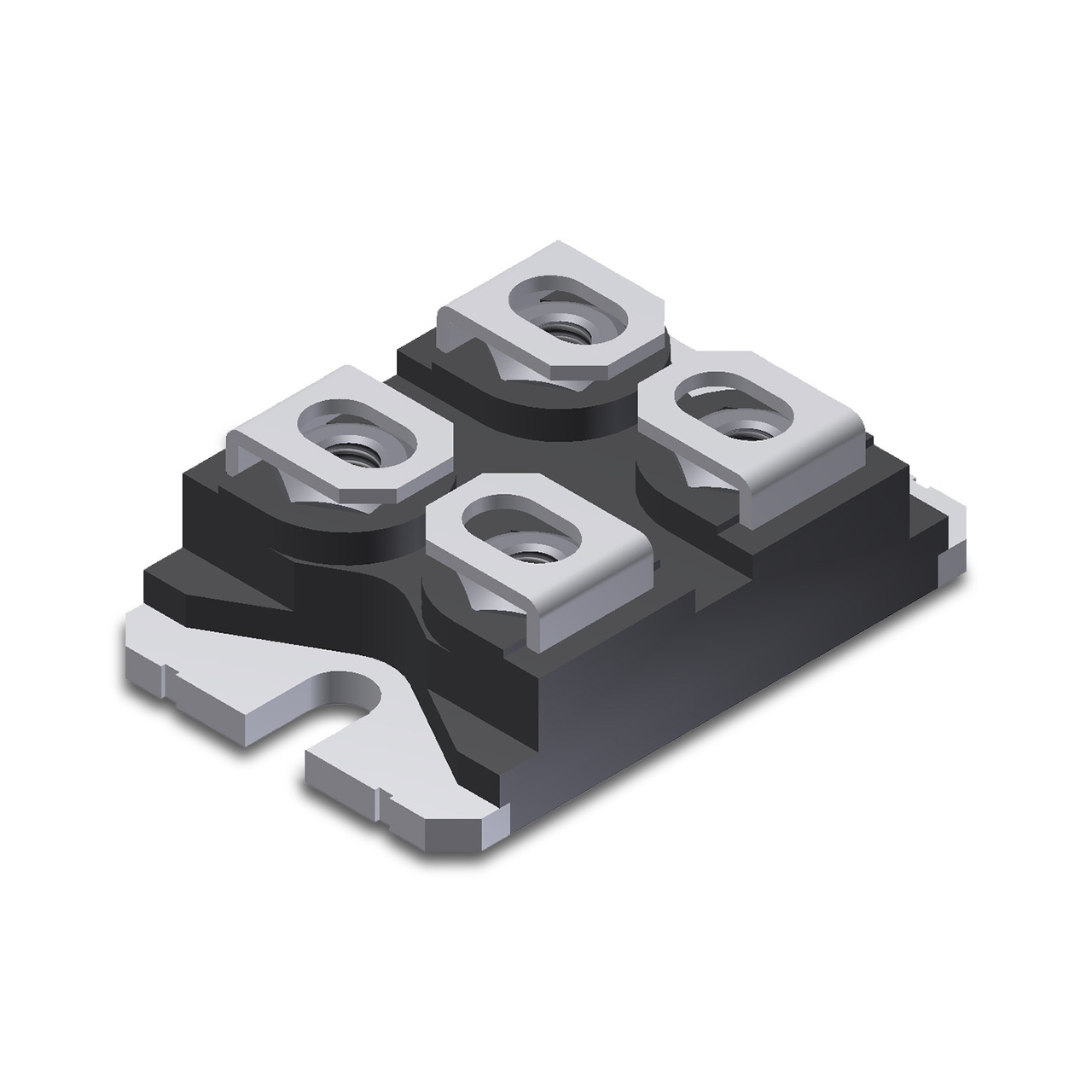

IXFN120N20 HiPerFET™ Power MOSFET 200V, 120A

The IXFN120N20 is a HiPerFET™ Power MOSFET, featuring low package inductance making it easy to drive and protect.

  • International standard package
  • Unclamped inductive switching (UIS) rated
  • Low RDS(on) HDMOS process
  • Rugged polysilicon gate cell structure
  • Low package inductance
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The IXFN120N20 HiPerFET™ Power MOSFET also features a fast intrinsic rectifier and is suitable for AC motor drives, power supplies and battery chargers.

Approvals
RoHS Compliant, UL Recognised

Typical Applications

  • DC-DC converters
  • Battery chargers
  • Switched-mode and resonant-mode power supplies
  • DC choppers
  • Low voltage relays
  • Temperature and lighting controls

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL RecognisedREACH Compliant

Manufacturer

Applications

, , , , ,

Drain Source Breakdown Voltage (VDSS)

200V

Continuous Drain Current (ID25)

120A

Configuration

Single

Package/Case

SOT-227-4

Mounting Style

Screw Mount

Product Type

Power MOSFET

Operating Junction Temperature (TJ)

-55°C to +150°C

Reverse Recovery Time (trr)

250ns

Static Drain Source on Resistance RDS(on)

17Ω

Maximum Pulsed Drain Current (IDM)

480A

Drain Gate Voltage (VDGR)

200V

Gate Source Voltage (VGS) Continuous

±20V

Maximum Transient Gate Source Voltage (VGSM)

±30V

Repetitive Avalanche Current (IAR)

120A

Turn-on Delay Time TD (on)

42ns

Turn-off Delay Time TD (off)

110ns

Isolated Base

Yes

Compliance

RoHS Compliant, UL Recognised

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

littelfuse_discrete_mosfets_n-channel_hiperfets_ixfn120n20_datasheet.pdf.pdf

Product Catalogues

Product Catalogues

IXYS IGBTs Product Catalogue

Product Catalogues

IXYS Product Catalogue 2022-2023

Product Catalogues

IXYS Selector Guide 2015

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

IXFN210N20P Polar™ HiPerFET™ Power MOSFET 200V, 188A

IXFN210N20P Polar™ HiPerFET™ Power MOSFET 200V, 188A

  • Download Datasheet
  • Parts List
  • Compare

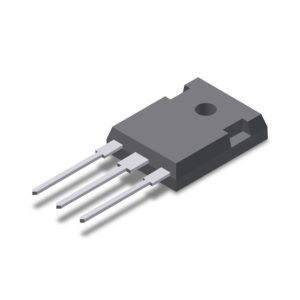

IXFH58N20 HiPerFET™ Power MOSFET 200V, 58A

IXFH58N20 HiPerFET™ Power MOSFET 200V, 58A

  • Download Datasheet
  • Parts List
  • Compare

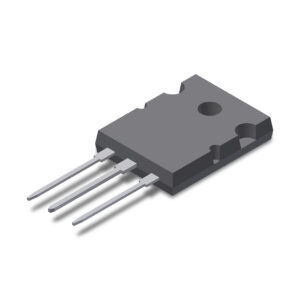

IXFK48N50Q Q-Class HiPerFET™ Power MOSFET 500V, 48A
