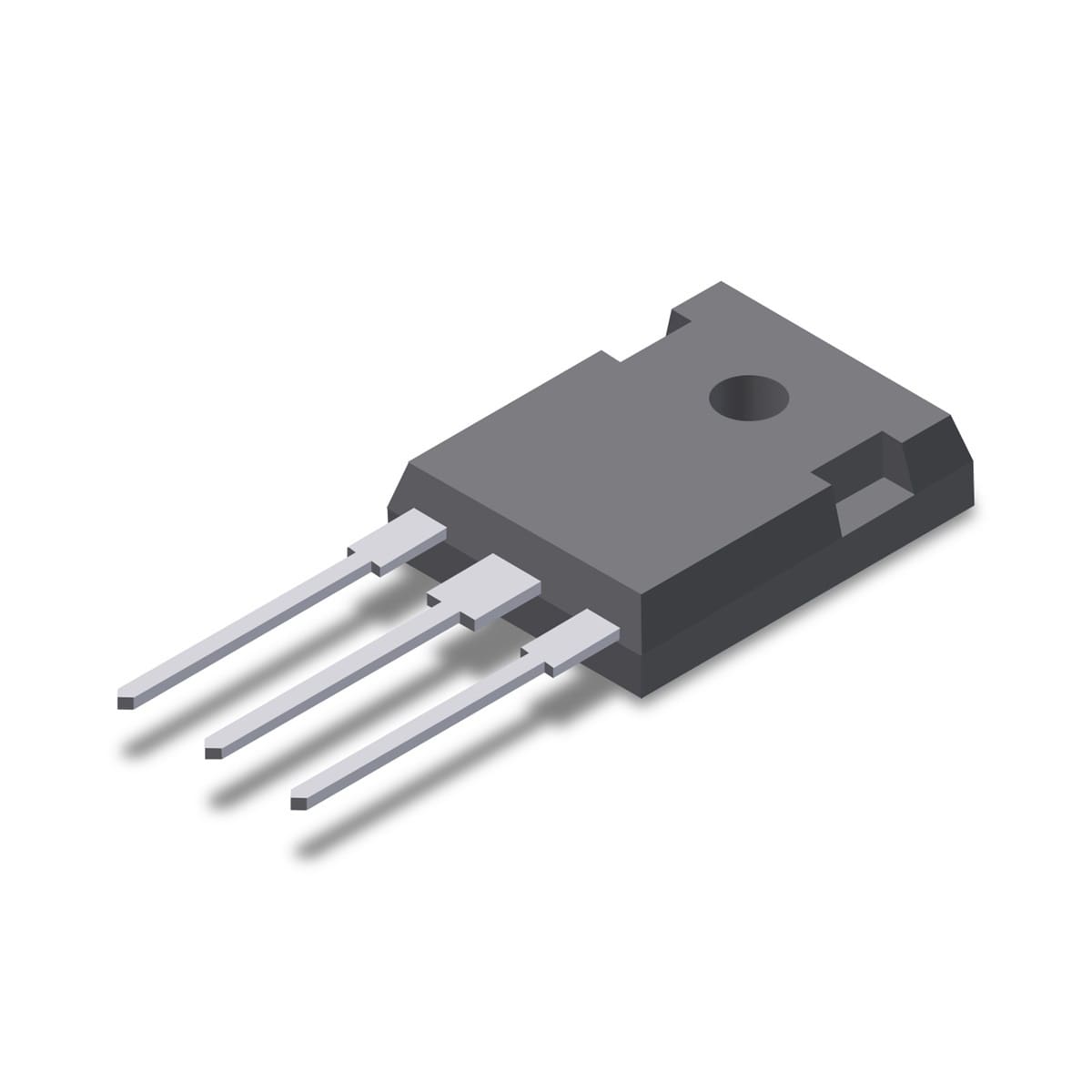

Images are for reference only, see product specifications for full details

IXDH35N60BD1 In stock

IXDH35N60BD1 High Speed IGBT 600V, 60A

The IXDH35N60BD1 high speed IGBT features NPT IGBT technology and provides low switching losses, short circuit capability and high power density. reduced thermal resistance, low energy losses, fast switching and high current densities.

  • Easy paralleling due to positive temperature coefficient of the on-state voltage
  • NPT technology
  • Low switching losses
  • MOS input, voltage controlled
  • International standard package
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The high speed, low saturation voltage IGBT provides positive temperature coefficient for easy paralleling and is available with an optional diode.

This IXDH35N60BD1 IGBT device offers space savings and high power density.

Approvals
RoHS Compliant

Typical Applications

  • AC motor speed control
  • DC servo and robot drives
  • Uninterruptible power supplies (UPS)
  • DC choppers
  • Switch-mode and resonant-mode power supplies

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, , , ,

Collector Emitter Voltage (VCES)

600V

Continuous DC Collector Current at 25°C (IC25)

60A

Collector Emitter Saturation Voltage VCE(sat)

2.2V

Package/Case

TO-247 AD

Turn-on Delay Time TD (on)

30ns

Turn-off Delay Time TD (off)

320ns

Isolated Base

Yes

Maximum DC Gate Voltage (VGES)

±20V

Product Type

High Speed IGBT IGBT Discrete IGBT

Compliance

RoHS Compliant

Continuous DC Collector Current at 90°C (IC90)

35A

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

media?resourcetype=datasheets&itemid=8e34cc39-c9a9-4a04-bab6-14099b6ad42c&filename=littelfuse-discrete-igbts-npt-ixd-35n60b---datasheet

Product Catalogues

Product Catalogues

IXYS IGBTs Product Catalogue

Product Catalogues

IXYS Product Catalogue 2022-2023

Product Catalogues

IXYS Selector Guide 2015
