IXSH35N100A In stock

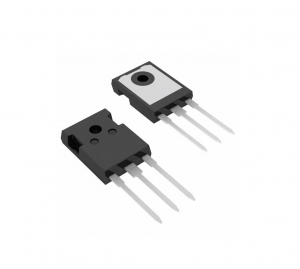

IXSH35N100A IGBT 1000V, 70A

The IXSH35N100A is a high speed IGBT with diode. It offers guaranteed Short Circuit SOA Capability.

  • Sqaure RBSOA
  • High current handling capability
  • Fast Recovery Epitaxial Diode (FRED) with soft recovery and low IRM
  • MOS input, voltage controlled
  • International standard package
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The IGBT IXSH35N100A IGBT offers space savings and can be easily mounted with two screws.

Approvals
RoHS Compliant

Typical Applications

  • AC motor speed control
  • Uninterruptible power supplies (UPS)
  • Welding

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , , ,

Collector Emitter Voltage (VCES)

1000V

Continuous DC Collector Current at 25°C (IC25)

70A

Collector Emitter Saturation Voltage VCE(sat)

3.5V

Package/Case

TO-247 AD (IXSH)

Turn-on Delay Time TD (on)

80ns

Turn-off Delay Time TD (off)

700ns

Isolated Base

Yes

Maximum DC Gate Voltage (VGES)

±20V

Product Type

High Speed IGBT IGBT Discrete IGBT

Compliance

RoHS Compliant

Continuous DC Collector Current at 90°C (IC90)

35A
