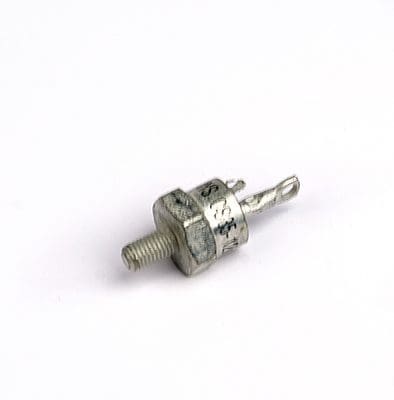

CS35-14IO4 Phase Control Thyristor 1400V, 69A

This part is obsolete, see below for alternative:
GDT35-14

The CS35-14IO4 is a 3-pin phase control thyristor for line frequencies.

  • Thyristor for line frequencies
  • International standard package JEDEC TO-208AC
  • Planar glassivated chip
  • Long-term stability of blocking currents and voltages
  • Improved temperature and power cycling
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

This series of phase control thyristors feature the highest current capacity per chip area especially at high voltage and are used as control devices in 50 and 60Hz AC mains equipment. Phase control thyristors are designed for optimal forward conduction and reverse blocking characteristics, due to only moderate requirements for turn-on and turn-off parameters.

The CS35-14io4 phase control thyristor is now obsolete and is not recommended for new designs.

Approvals
RoHS Compliant

Typical Applications

  • Motor controls
  • Power converters
  • AC power controllers

Refer to manufacturer’s datasheet for full technical information.
Images are for reference only, see product specifications for full details.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, ,

Maximum Repetitive Reverse Voltage (VRRM)

1400V

Maximum Repetitive Forward Blocking Voltage (VDRM)

1400V

Maximum Non-Repetitive Reverse Voltage (VRSM)

1500V

Value for Fusing (I2t)

7200 A2s

Maximum Surge On-state Current ITSM 50Hz, 60Hz

1200A, 1340A

Turn-off Time(Tq)

100μs

Configuration

Single

Package/Case

TO-208AC

Mounting Style

Stud Mount

Operating Junction Temperature (TJ)

-40°C to +125°C

Compliance

RoHS Compliant

Maximum Surge On-state Current (ITSM)

1200A

Maximum Average Forward Current 55° CHS IT(AV)M

69A

Maximum Gate Trigger Current (IGT)

100mA

RMS Forward Current IT(RMS)

120A

Turn-off Time (Tq)

100μs

Maximum Average Forward Current 85°C Case (ITAV)

63A

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.

Datasheet
