Images are for reference only, see product specifications for full details

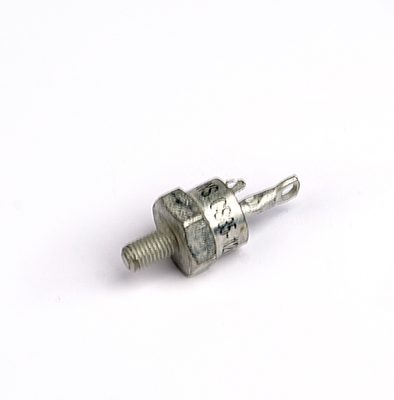

CS35-12IO4 Phase Control Thyristor 1200V, 69A
This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk
The CS35-12io4 is a 3-pin phase control thyristor designed for motor control, power converters and AC power controllers.
- Thyristor for line frequencies
- International standard package JEDEC TO-208AC
- Planar glassivated chip
- Long-term stability of blocking currents and voltages
- Improved temperature and power cycling
This series of phase control thyristors feature the highest current capacity per chip area especially at high voltage and are used as control devices in 50 and 60Hz AC mains equipment. Phase control thyristors are designed for optimal forward conduction and reverse blocking characteristics, due to only moderate requirements for turn-on and turn-off parameters.
The CS35-12io4 phase control thyristor is now obsolete and is not recommended for new designs.
Approvals
RoHS Compliant
Typical Applications
- Motor control
- Power converters
- AC power controllers
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | |
| Maximum Repetitive Reverse Voltage (VRRM) | 1200V |
| Value for Fusing (I2t) | 7200 A2s |
| Maximum Surge On-state Current ITSM 50Hz, 60Hz | 1200A, 1340A |
| Turn-off Time (Tq) | 100μs |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1300V |
| Configuration | Single |
| Package/Case | TO-208AC |
| Mounting Style | Stud Mount |
| Operating Junction Temperature (TJ) | -40°C to +125°C |
| Product Type | SCR |
| Compliance | RoHS Compliant |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
Learn more about IXYS products by getting in touch with GD Rectifiers.
Datasheet
CS35-08io4_CS35-12io4_CS35-14io4.pdf
Product Catalogues
IXYS IGBTs Product Catalogue
IXYS Product Catalogue 2022-2023
IXYS Selector Guide 2015
