Z120G In stock

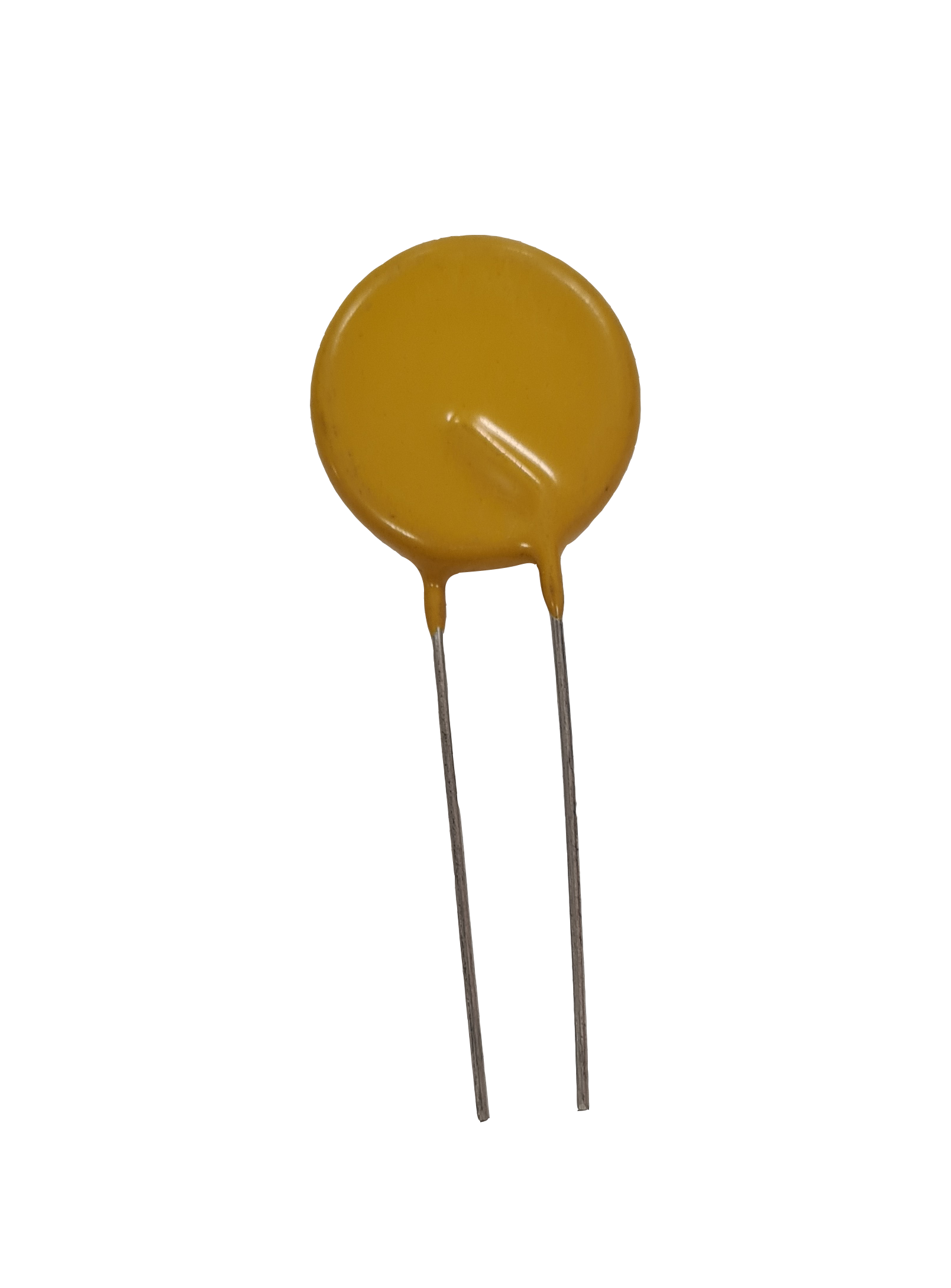

Z120G Varistor 120V, 100A

The Z120G has an operational voltage of 120V, a clipping voltage of 340V and an energy level of 70J. The Z120G metal oxide varistor (MOV) is part of the medium voltage G series with a peak current of up to 6.5kA.

  • Metal oxide varistor
  • G range with peak current up to 6.5kA
  • Ideal for consumer and power metering applications
  • Used for a wide range of voltage and currents
  • Reliable protection from multiple faults
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The Z120G varistor acts as an overvoltage suppressor by providing transient surge protection and clipping the voltage of a device to avoid overvoltage damage.

Approvals
RoHS Compliant, UL Recognised

Typical Applications

  • Overvoltage protection
  • Line to line protection
  • Voltage spike protection
  • Protection against excessive transient voltages
  • Device protection from multiple faults

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL Recognised

Manufacturer

Applications

, , ,

Operational Voltage (V)

120V

Test Current (A)

100A

Clipping Voltage (V)

340V

Energy Level (J)

70J

Maximum Continuous Voltage AC rms @ 25°C

132V

Peak Current 8/20

6500A

Product Type

Medium Voltage MOV

Compliance

RoHS Compliant, UL Recognised

With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.

The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.

The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.
