Images are for reference only, see product specifications for full details

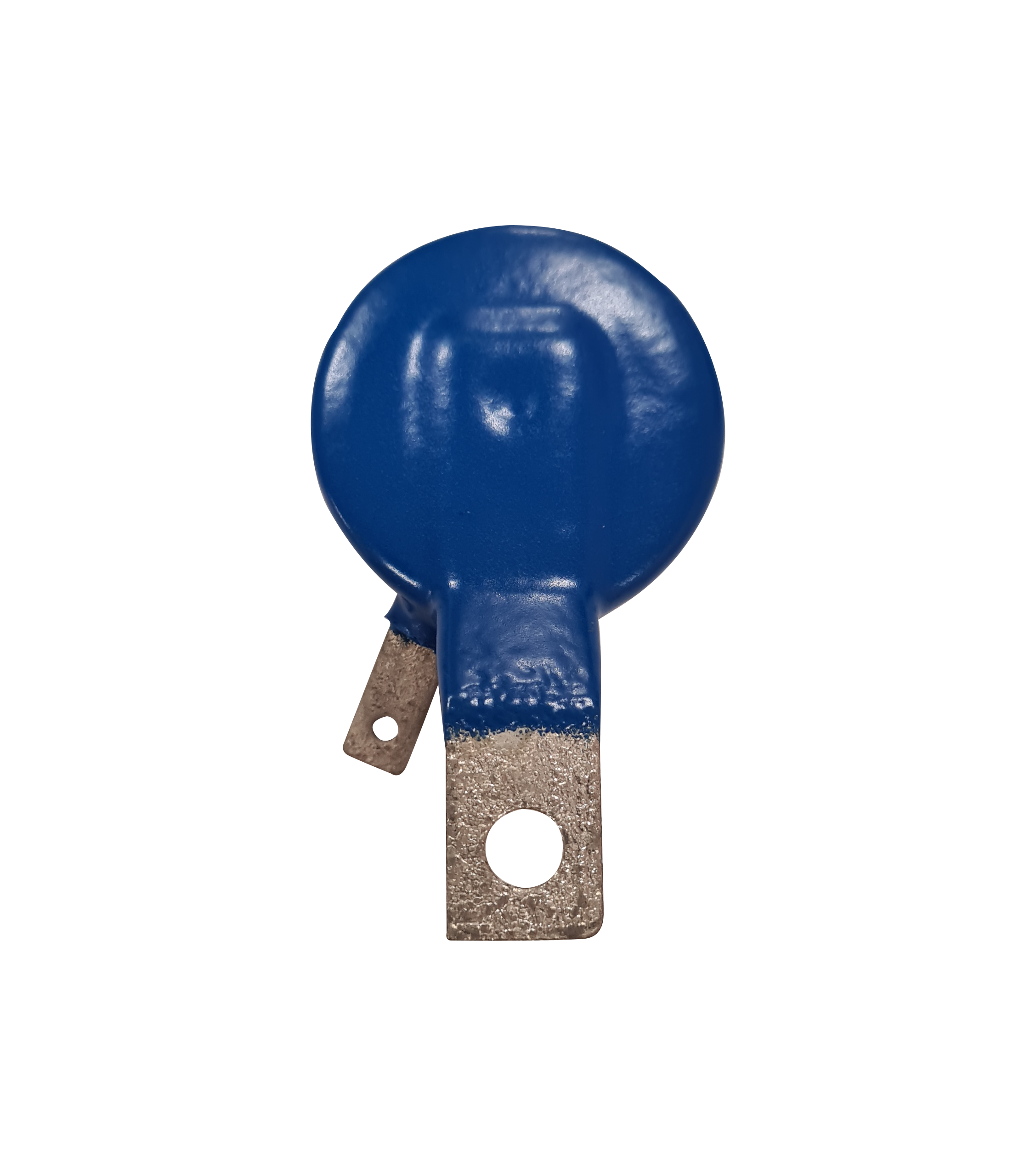

Z415G Varistor 415V, 100A
The Z415G has an operational voltage of 415V, a clipping voltage of 1180V and an energy level of 195J. The Z415G metal oxide varistor (MOV) is part of the medium voltage G series with a peak current of up to 6.5kA.
- Metal oxide varistor
- G range with peak current up to 6.5kA
- Ideal for consumer and power metering applications
- Used for a wide range of voltage and currents
- Reliable protection from multiple faults
The Z415G varistor acts as an overvoltage suppressor by providing transient surge protection by clipping the voltage of a device to avoid overvoltage damage.
Approvals
RoHS Compliant
UL Recognised
Typical Applications
- Overvoltage protection
- Line to line protection
- Voltage spike protection
- Protection against excessive transient voltages
- Device protection from multiple faults
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Device protection from multiple faults, Line to Line Protection, Overvoltage Protection, Voltage Spike Protection |
| Operational Voltage (V) | 415V |
| Test Current (A) | 100A |
| Clipping Voltage (V) | 1180V |
| Energy Level | 195J |
| Maximum Continuous Voltage AC rms @ 25°C | 460V |
| Peak Current 8/20 | 6500A |
| Product Type | Medium Voltage MOV |
| Compliance | RoHS Compliant, UL Recognised |
With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.
GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.
The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.
The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.
GD Rectifiers
GD Rectifiers design and manufacture selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.
We are one of the UK’s leading distributors of power electronic components and hold extensive stock of diodes, thyristors, IGBTs and MOSFETs from the world’s leading semiconductor manufacturers.
Learn more about our products by getting in touch with us.
Datasheet
GD-Rectifiers-Z415G-Datasheet.pdf
Line Card
GD Rectifiers Line Card 2023
Catalogue
GD Rectifiers Product Catalogue
