FIN47SNB.050.1M.X.Y

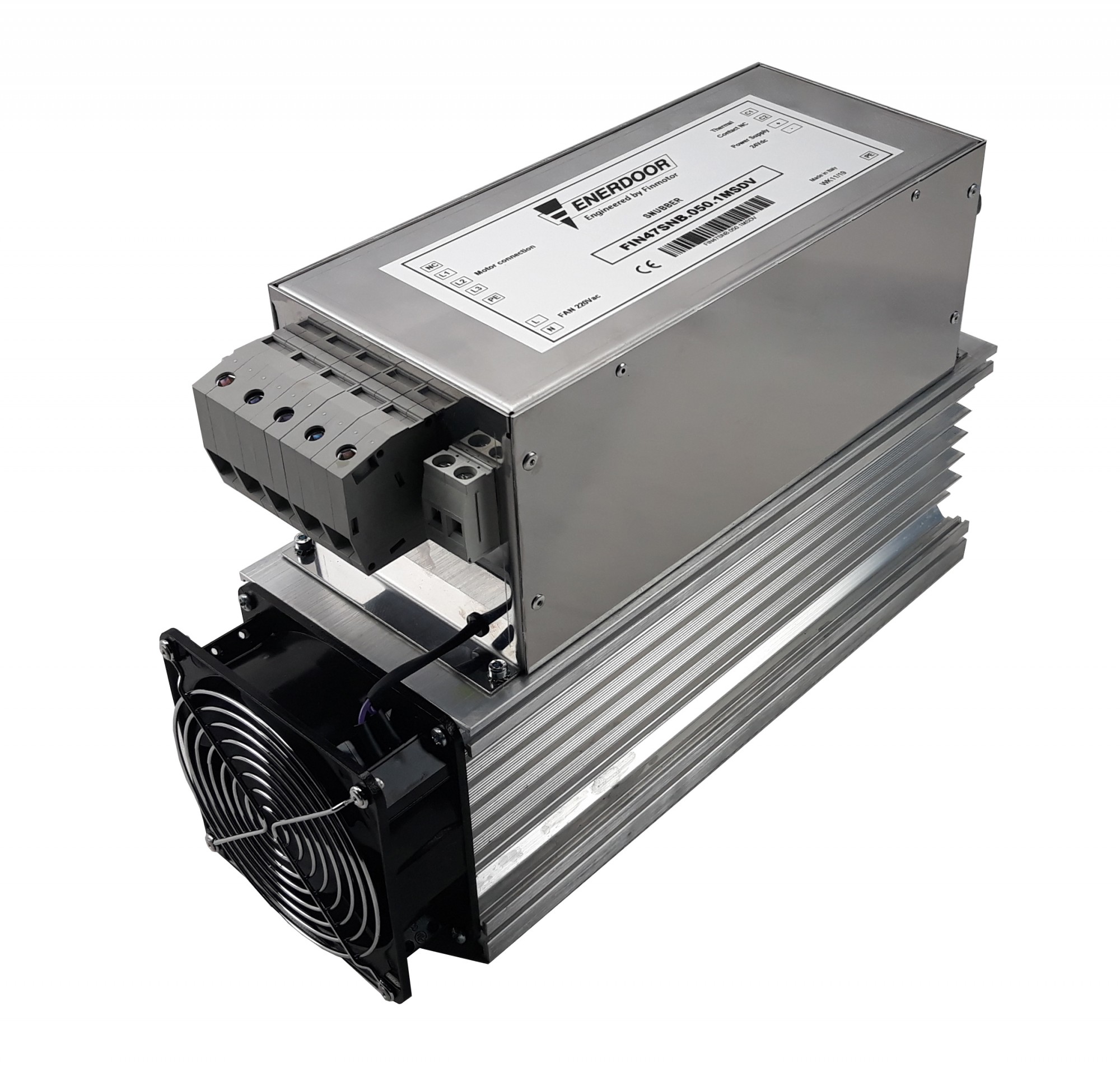

FIN47SNB.050.1M.X.Y Snubber dV/dt Filter

The FIN47SNB.050.1M.X.Y snubber dV/dt filter is a 3-phase plus neutral star point snubber with excellent attenuation to reduce dV/dt.

  • Reduces dV/dt
  • Protection of motor winding insulation and bearings
  • Remote contact indicator
  • Very low power loss
  • Compact dimension due to the parallel installation
  • Only one model for unlimited HP motors

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The snubber filter features 600Vac nominal voltage, <5 KHz frequency and 250W power loss. It provides protection of motor winding insulation and bearings with very low power loss. it offers a compact design due to the parallel installation and is available with a remote electronic control. The FIN47SNB series features easy installation and reduces dV/dt.

Approvals
RoHS Compliant, CE Marked

Typical Applications

  • Large motors
  • Spindle motors
  • Long cable applications with VFDs or servo drives

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS Compliant

Manufacturer

Applications

, ,

Nominal Voltage

600Vac

Compliance

CE Marked, RoHS Compliant

Drive Carrier Frequency (KHz)

<5 KHz

Power Loss at 100KHz (W)

250W

Maximum Peak Voltage Phase to Phase (V)

3000V

Maximum Peak Voltage Phase to Ground (V)

3500V

Fan Dissipation (W)

20W

IP Protection

IP20

Climatic Class

-40°C to +85°C

MTBF at 40°C

250 Hrs

The Enerdoor Group is the industry’s international leader in the development and production of Electromagnetic Solutions for automated and industrial machinery.  Enerdoor provides a wide array of solutions for protection of machinery and equipment, CE approval and testing and elimination of noise, improved reliability and reduced downtime. The Enerdoor Group consists of: Eichhoff Elektro, FinMotor and FinLab which all sit under the parent company.

Renowned for it’s high quality and innovative solutions, Enerdoor manufactures an extensive range of EMI filters, RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions from their Head Offices in North America and Europe.

Enerdoor supply single phase, three phase and surge protection filters designed to reduce conducted electrical interference in control cabinets. Enerdoor has EMC laboratories in the United States, Germany and Switzerland.

Eichhoff’s manufacturing plant is based in Hungary and strongly focuses on product development and EMC measurement. Eichhoff Elektro has over 40 years experience in safety transformers and electronic ignition systems. They manufacture a wide range of: RFI Filters, Sinus Filters, Reactors, Transformers, PCB Transformers and Ignition Systems.

FinMotor’s manufacturing plant and EMC laboratory is based in Italy. FinMotor manufactures Enerdoor’s EMC Filters, High Frequency inductance and Harmonic Filters for the medical and military markets. They manufacture a wide range of RFI Filters, Passive Harmonic Filters, High Current Sinus Filters, High Frequency Impedances, Motor Protection and Snubbers.

FinLab’s laboratory is based in Milan and focuses on EMC measurement (certification, analysis, solutions and training), harmonic measurement (analysis, solutions and training), acoustic measurement, technical construction file and vibration measurements carried out in their anechoic room and mobile laboratories.

Enerdoor

Enerdoor is part of The Enerdoor Group which consists of Enerdoor in North America and Europe; Finmotor and Finlab in Italy; and Eichhoff Elektro in Hungary.

The group is an international leader in the development and production of electromagnetic solutions for automated and industrial machinery.

The broad range of products include: EMI/RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions.

Learn more about Enerdoor products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

fin47snb_datasheet_0318en.pdf

Product Catalogues

Product Catalogues

Enerdoor Product Catalogue

Product Catalogues

Enerdoor Voltage Stabilisers Catalogue

Product Catalogues

Enerdoor Overview Catalogue

Product Catalogues

Enerdoor Surge Arresters Catalogue

Product Catalogues

Enerdoor EMI Filters Catalogue

Product Catalogues

Enerdoor DC Filters Catalogue

Product Catalogues

Enerdoor Motor Protection Catalogue

Product Catalogues

Enerdoor Harmonic Filters Catalogue

Product Catalogues

Enerdoor Parallel Filter Catalogue

White Papers

White Papers

Enerdoor EMI Filters White Paper

White Papers

Enerdoor Power Factor Correction White Paper

White Papers

Enerdoor Passive Harmonic Filter White Paper

White Papers

Enerdoor CE Certification White Paper

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Parts List
  • Compare

FIN5955.006.M Differential Inductance Choke

FIN5955.006.M Differential Inductance Choke

  • Download Datasheet
  • Parts List
  • Compare

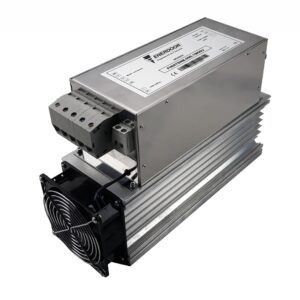

FIN47SNB.050.2M.X.Y Snubber dV/dt Filter

FIN47SNB.050.2M.X.Y Snubber dV/dt Filter

  • Parts List
  • Compare

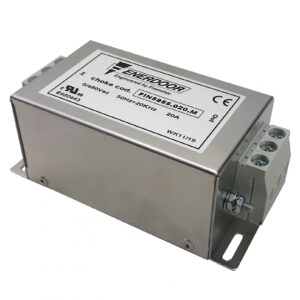

FIN5955.003.M Differential Inductance Choke
