FIN930.200.M

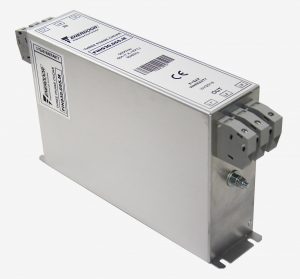

FIN930.200.M Common Mode Choke

The FIN930.200.M is a common mode choke with very high attenuation for reducing dV/dt. The common mode choke protects against voltage spikes on the motor and has a current rating of 200A and a voltage rating of 600Vac.

  • Protects against voltage spikes on the motor
  • Compact design
  • Increases motor life
  • 5 year warranty
  • Helps pass emission tests for the IEC61000-6-2 and IEC61000-6-4 Standards

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The common mode choke features a compact design, increases motor life and helps pass emission tests for the IEC61000-6-2 and IEC61000-6-4 Standards.

This motor protection series protects motors from harmful overvoltage and dV/dt spikes generated by the drive’s output and is designed for applications with variable frequency drives, servo drives, and long cable applications.

Approvals
RoHS Compliant, CE Marked

Typical Applications

  • Motors controlled by drives
  • Pumps
  • Conveyors
  • Spindle motors closed loop

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS Compliant

Manufacturer

Applications

, , ,

Voltage (Vac)

600Vac

Current (A)

200A

Carrier Frequency (kHz)

0-16kHz

Output Frequency (Hz)

50-3500 Hz

Potential Test Voltage Phase to Phase

2400 Vdc (2 sec.)

Potential Test Voltage Phase to Ground

3200 Vdc (2 sec.)

IP Protection

IP20

Climatic Class

-40°C to +85°C

MTBF at 40°C

250 Hrs

Compliance

CE Marked, RoHS Compliant

The Enerdoor Group is the industry’s international leader in the development and production of Electromagnetic Solutions for automated and industrial machinery.  Enerdoor provides a wide array of solutions for protection of machinery and equipment, CE approval and testing and elimination of noise, improved reliability and reduced downtime. The Enerdoor Group consists of: Eichhoff Elektro, FinMotor and FinLab which all sit under the parent company.

Renowned for it’s high quality and innovative solutions, Enerdoor manufactures an extensive range of EMI filters, RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions from their Head Offices in North America and Europe.

Enerdoor supply single phase, three phase and surge protection filters designed to reduce conducted electrical interference in control cabinets. Enerdoor has EMC laboratories in the United States, Germany and Switzerland.

Eichhoff’s manufacturing plant is based in Hungary and strongly focuses on product development and EMC measurement. Eichhoff Elektro has over 40 years experience in safety transformers and electronic ignition systems. They manufacture a wide range of: RFI Filters, Sinus Filters, Reactors, Transformers, PCB Transformers and Ignition Systems.

FinMotor’s manufacturing plant and EMC laboratory is based in Italy. FinMotor manufactures Enerdoor’s EMC Filters, High Frequency inductance and Harmonic Filters for the medical and military markets. They manufacture a wide range of RFI Filters, Passive Harmonic Filters, High Current Sinus Filters, High Frequency Impedances, Motor Protection and Snubbers.

FinLab’s laboratory is based in Milan and focuses on EMC measurement (certification, analysis, solutions and training), harmonic measurement (analysis, solutions and training), acoustic measurement, technical construction file and vibration measurements carried out in their anechoic room and mobile laboratories.

Enerdoor

Enerdoor is part of The Enerdoor Group which consists of Enerdoor in North America and Europe; Finmotor and Finlab in Italy; and Eichhoff Elektro in Hungary.

The group is an international leader in the development and production of electromagnetic solutions for automated and industrial machinery.

The broad range of products include: EMI/RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions.
