FIN230SP.001.M

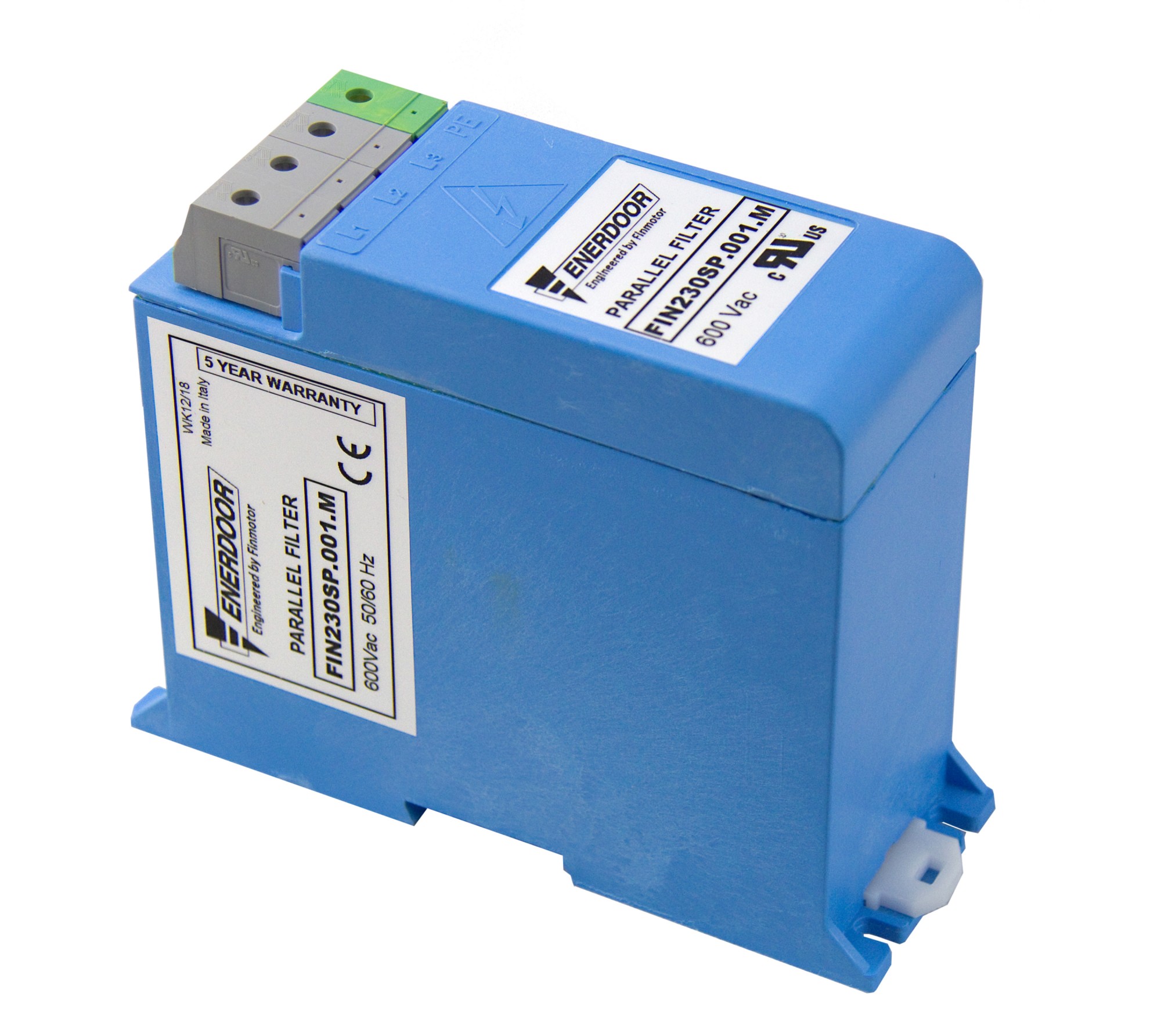

FIN230SP.001.M Parallel Filter

The FIN230SP.001.M parallel filter has a voltage of 600Vac, a low leakage current of 25mA.The FIN230SP series parallel filter features a compact design and has excellent attenuation in a low frequency range.

  • High differential and common mode
  • Low leakage current
  • DIN rail or panel mounting
  • 5 year warranty
  • Compact design
  • Easy Installation

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Parallel filters are unique because they are compact and attenuate RF noise in lower frequencies than other EMI filters. The FIN230SP.001.M Parallel Filter is the most general-purpose filter recommended by Enerdoor for OEM equipment. The FIN230SP family is affected starting at 70 kHz to 6 MHz and reduces interruptions due to quick spikes and dips.

This series offers a unique solution available with nominal voltage up to 750Vac and any current level due to the parallel connection to the line. Offered in three phase and three phase plus neutral, this line carries CE and UL approvals and features panel and DIN rail mounting for fast and easy installation.

Approvals
RoHS Compliant, CE Marked, carUus Marked, UL 1283

Typical Applications

  • CNC machines
  • Recharging stations
  • Multiple drive applications
  • Renewable energy
  • SCR applications

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantcaRUusUL1283

Manufacturer

Applications

, , ,

Voltage (Vac)

600Vac

Leakage (mA)

25mA

Compliance

caRUus, CE Marked, RoHS, UL1283

Case

1

The Enerdoor Group is the industry’s international leader in the development and production of Electromagnetic Solutions for automated and industrial machinery.  Enerdoor provides a wide array of solutions for protection of machinery and equipment, CE approval and testing and elimination of noise, improved reliability and reduced downtime. The Enerdoor Group consists of: Eichhoff Elektro, FinMotor and FinLab which all sit under the parent company.

Renowned for it’s high quality and innovative solutions, Enerdoor manufactures an extensive range of EMI filters, RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions from their Head Offices in North America and Europe.

Enerdoor supply single phase, three phase and surge protection filters designed to reduce conducted electrical interference in control cabinets. Enerdoor has EMC laboratories in the United States, Germany and Switzerland.

Eichhoff’s manufacturing plant is based in Hungary and strongly focuses on product development and EMC measurement. Eichhoff Elektro has over 40 years experience in safety transformers and electronic ignition systems. They manufacture a wide range of: RFI Filters, Sinus Filters, Reactors, Transformers, PCB Transformers and Ignition Systems.

FinMotor’s manufacturing plant and EMC laboratory is based in Italy. FinMotor manufactures Enerdoor’s EMC Filters, High Frequency inductance and Harmonic Filters for the medical and military markets. They manufacture a wide range of RFI Filters, Passive Harmonic Filters, High Current Sinus Filters, High Frequency Impedances, Motor Protection and Snubbers.

FinLab’s laboratory is based in Milan and focuses on EMC measurement (certification, analysis, solutions and training), harmonic measurement (analysis, solutions and training), acoustic measurement, technical construction file and vibration measurements carried out in their anechoic room and mobile laboratories.

Enerdoor

Enerdoor is part of The Enerdoor Group which consists of Enerdoor in North America and Europe; Finmotor and Finlab in Italy; and Eichhoff Elektro in Hungary.

The group is an international leader in the development and production of electromagnetic solutions for automated and industrial machinery.

The broad range of products include: EMI/RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions.

Learn more about Enerdoor products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

fin130sp_fin230sp_fin735_datasheet_0319en.pdf

Product Catalogues

Product Catalogues

Enerdoor Product Catalogue

Product Catalogues

Enerdoor Voltage Stabilisers Catalogue

Product Catalogues

Enerdoor Overview Catalogue

Product Catalogues

Enerdoor Surge Arresters Catalogue

Product Catalogues

Enerdoor EMI Filters Catalogue

Product Catalogues

Enerdoor DC Filters Catalogue

Product Catalogues

Enerdoor Motor Protection Catalogue

Product Catalogues

Enerdoor Harmonic Filters Catalogue

Product Catalogues

Enerdoor Parallel Filter Catalogue

White Papers

White Papers

Enerdoor EMI Filters White Paper

White Papers

Enerdoor Power Factor Correction White Paper

White Papers

Enerdoor Passive Harmonic Filter White Paper

White Papers

Enerdoor CE Certification White Paper

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

FIN730.002.MC Parallel Filter

FIN730.002.MC Parallel Filter

  • Download Datasheet
  • Parts List
  • Compare

FIN730.001.MLCP Parallel Filter

FIN730.001.MLCP Parallel Filter

  • Download Datasheet
  • Parts List
  • Compare

FIN730.001.M Parallel Filter

FIN730.001.M Parallel Filter

  • Download Datasheet
  • Parts List
  • Compare

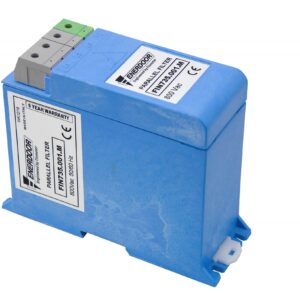

FIN735.001.M Parallel Filter
