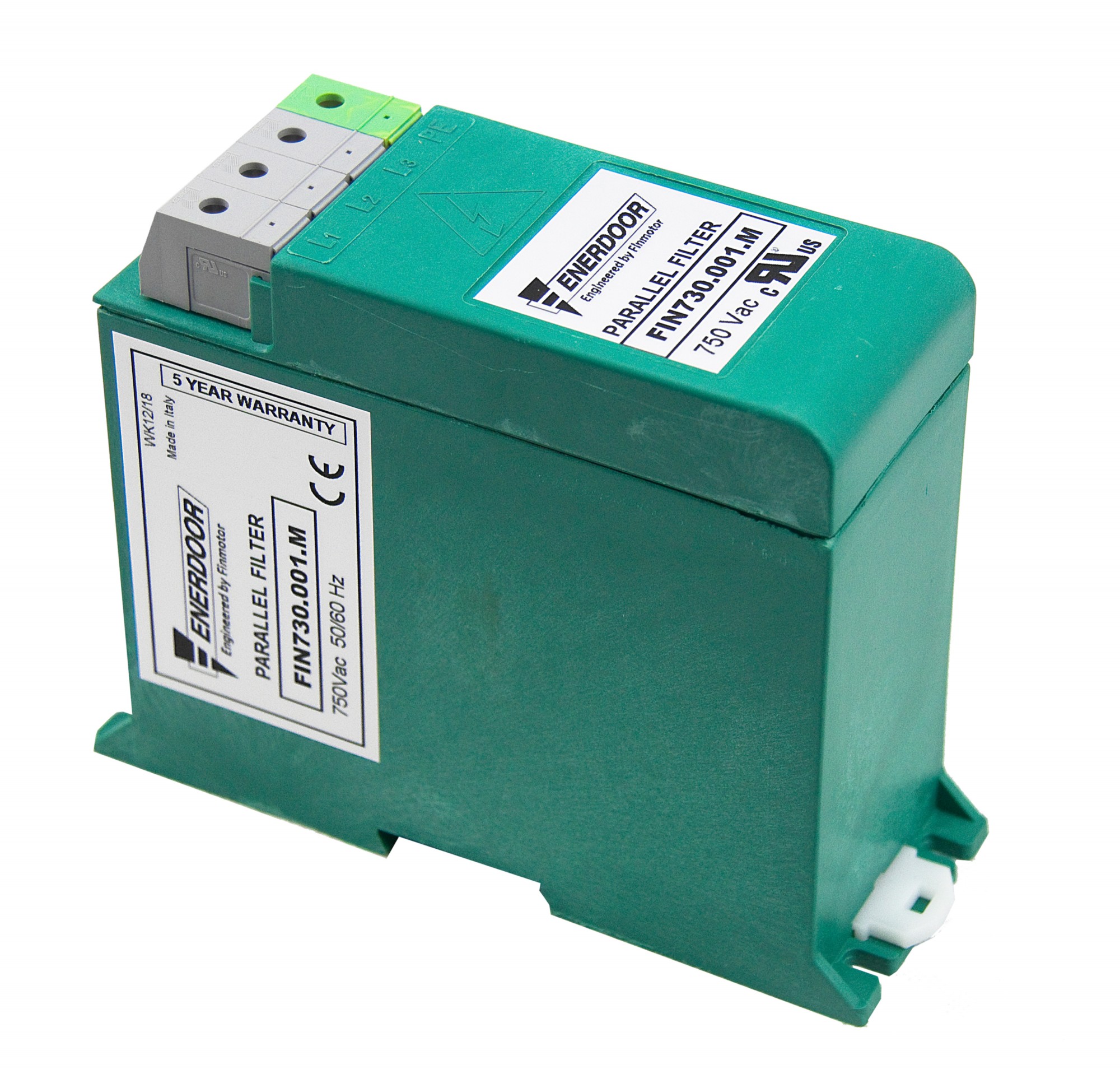

FIN730.001.MLCP Parallel Filter
The FIN730.001.MLCP parallel filter has a voltage of 480Vac, a low leakage current of 25mA.The FIN730 series parallel filter features a compact design, easy installation and has excellent attenuation in a low frequency range.
- Independent from nominal current
- Low leakage current
- DIN rail or panel mounting
- 5 year warranty
- Compact design
- Easy Installation
Currently Out of Stock
Get notified when this item is back in stock or contact us for alternatives
Parallel filters are unique because they are compact and attenuate RF noise in lower frequencies than other EMI filters.
This series offers a unique solution available with nominal voltage up to 750Vac and any current level due to the parallel connection to the line. Offered in three phase and three phase plus neutral, this line carries CE and UL approvals and features panel and DIN rail mounting for fast and easy installation.
Approvals
RoHS Compliant, CE Marked, carUus Marked, UL 1283
Typical Applications
- CNC machinery
- Recharging stations
- Multiple drive applications
- Renewable energy
Refer to manufacturer’s datasheet for full technical information.
Manufacturer | |
---|---|
Applications | CNC Machinery, Multiple Drive Applications, Recharging Stations, Renewable Energy |
Voltage (Vac) | 480Vac |
Leakage (mA) | 25mA |
Compliance | caRUus, CE Marked, RoHS Compliant, UL1283 |
Case | 1 |
The Enerdoor Group is the industry’s international leader in the development and production of Electromagnetic Solutions for automated and industrial machinery. Enerdoor provides a wide array of solutions for protection of machinery and equipment, CE approval and testing and elimination of noise, improved reliability and reduced downtime. The Enerdoor Group consists of: Eichhoff Elektro, FinMotor and FinLab which all sit under the parent company.
Renowned for it’s high quality and innovative solutions, Enerdoor manufactures an extensive range of EMI filters, RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions from their Head Offices in North America and Europe.
Enerdoor supply single phase, three phase and surge protection filters designed to reduce conducted electrical interference in control cabinets. Enerdoor has EMC laboratories in the United States, Germany and Switzerland.
Eichhoff’s manufacturing plant is based in Hungary and strongly focuses on product development and EMC measurement. Eichhoff Elektro has over 40 years experience in safety transformers and electronic ignition systems. They manufacture a wide range of: RFI Filters, Sinus Filters, Reactors, Transformers, PCB Transformers and Ignition Systems.
FinMotor’s manufacturing plant and EMC laboratory is based in Italy. FinMotor manufactures Enerdoor’s EMC Filters, High Frequency inductance and Harmonic Filters for the medical and military markets. They manufacture a wide range of RFI Filters, Passive Harmonic Filters, High Current Sinus Filters, High Frequency Impedances, Motor Protection and Snubbers.
FinLab’s laboratory is based in Milan and focuses on EMC measurement (certification, analysis, solutions and training), harmonic measurement (analysis, solutions and training), acoustic measurement, technical construction file and vibration measurements carried out in their anechoic room and mobile laboratories.
Enerdoor
Enerdoor is part of The Enerdoor Group which consists of Enerdoor in North America and Europe; Finmotor and Finlab in Italy; and Eichhoff Elektro in Hungary.
The group is an international leader in the development and production of electromagnetic solutions for automated and industrial machinery.
The broad range of products include: EMI/RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions.
