Converters for Passenger Coaches
KONČAR offers several generations of high-quality wagon converters which differ in input voltages, output power and different output voltages.

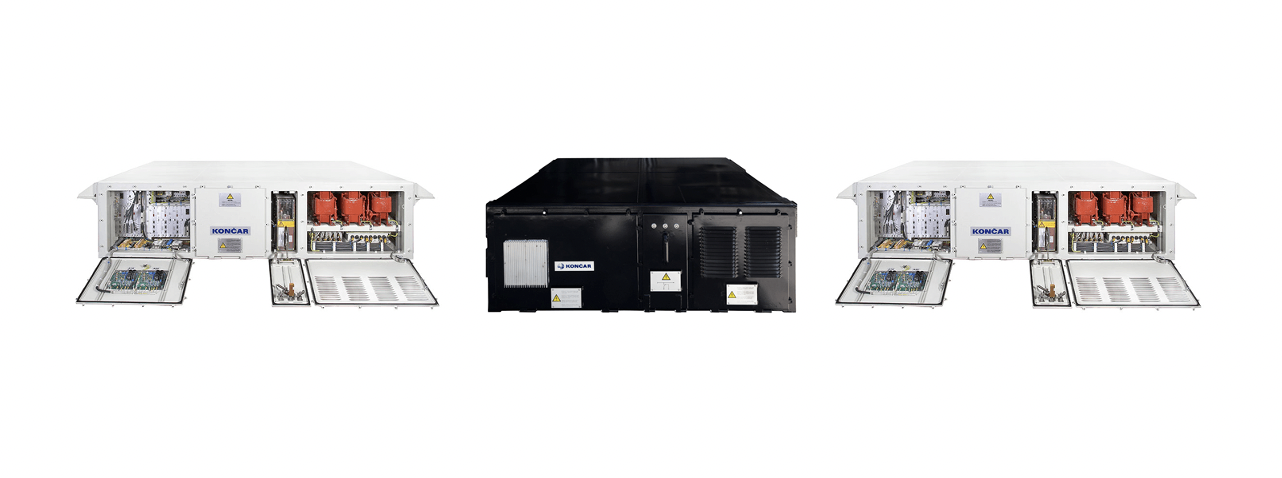

Converters for Coaches
Modular designs enable easy access and low maintenance costs
KONČAR offer a wide range of wagon converters which differ in input voltages, output power and different output voltages. All of KONČAR’s converters offer high quality and reliability that significantly increase traffic availability of passenger coach, whether the passenger coach is in international, regional or suburban traffic.
KONČAR’s four converters for coaches include: KONTRAC PN30MS, KONTRAC PN50MS and KONTRAC PN60MS.
Two System Converter for Passenger Coach – KONTRAC PN30MS
KONTRAC PN30MS serves as a power supply for air conditioned passenger coaches, it can be supplied from two conventional UIC voltages (1500V, 50Hz or 1500VDC) used by European railways.
Download KONTRAC PN30MS Datasheet
Features
- Two input voltages
- Microprocessor control and diagnostics
- Input/output galvanic insulation
- Active control of input impedance
- Easy maintenance
- Modular design
- Integrated disconnecting and earthing device
- Flat battery power supply
- Automatic switching to another input voltage i.e. supply system
Technical Data
| Input voltages | 1500V, 50Hz
1500VDC |
| AC output | 3 x 400V, 50Hz, 28kVA
230V, 50Hz, 2,8kVA |
| DC outputs | 30VDC 6kW |
| Cooling | Forced air-cooling |
| Size | 2150 x 2100 x 600mm |
| Weight | 1020kg |
| Mounting position | Under-floor |
| Connecting interface | CAN / MVB / Ethernet |
Multi-system Converter for Passenger Coach – KONTRAC PN50MS
KONTRAC PN50MS is used as the power supply in modern air conditioned coaches on European railways. It is powered by one of four UIC voltages, switching to another UIC system is performed automatically and without external supervision.
Download KONTRAC PN50MS Datasheet
Features
- Four input voltages i.e. supply systems
- Microprocessor control and diagnostics
- Input/output galvanic insulation
- Easy maintenance
- Modular design
- Integrated disconnecting and earthing device
- Flat battery power supply
- Automatic switching to another input voltage i.e. supply system
Technical Data
| Input voltages | 1000V, 16 2/3 (22,50)Hz, 1500V, 50Hz
1500 / 3000VDC |
| AC output | 3 x 400V, 50Hz, 30kVA + 22kVA
3 x 400 / 230V, 50hz, 8kVA |
| DC outputs | 30VDC 6kW |
| Cooling | Forced air-cooling |
| Size | 2150 x 2750 x 605mm |
| Weight | 1630kg |
| Mounting position | Under-floor |
| Connecting interface | CAN / MVB / Ethernet |
Multi-system Converter for Passenger Coach – KONTRAC PN60MS
The KONTRAC PN60MS is powered by any of four UIC voltages and serves as the source of electric energy for the coach air conditioning system, all single-phase and three-phase consumers, as well as charging batteries and power supply of all DC consumers onboard a passenger coach. Switching to another UIC system is performed automatically and without external supervision.
Download KONTRAC PN60MS Datasheet
Features
- Four input voltages i.e. supply systems
- Microprocessor control and diagnostics
- Input/output galvanic insulation
- Active control of input impedance
- Easy maintenance
- Modular design
- Integrated disconnecting and earthing device
- Flat-battery power supply
- Automatic switching to another input voltage i.e. supply system
Technical Data
| Input voltages | 1000V, 16 2/3 (22, 50)Hz, 1500V, 50Hz
1500 / 3000 VDC |
| AC outputs | 3 x 400V, 50Hz, 30kVA + 22kVA
3 x 400 / 230V, 50Hz, 8kVA |
| DC output | 30VDC 12kW |
| Cooling | Forced air-cooling |
| Size | 2150 x 2980 x 605mm |
| Weight | 1802kg |
| Mounting position | Under-floor |
| Connecting interface | CAN / MVB / Ethernet |
For further information on KONČAR’s traction converters for coaches please call us on 01444 243 452 or email: enquiries@gdrectifiers.co.uk.
