1N5811 In stock

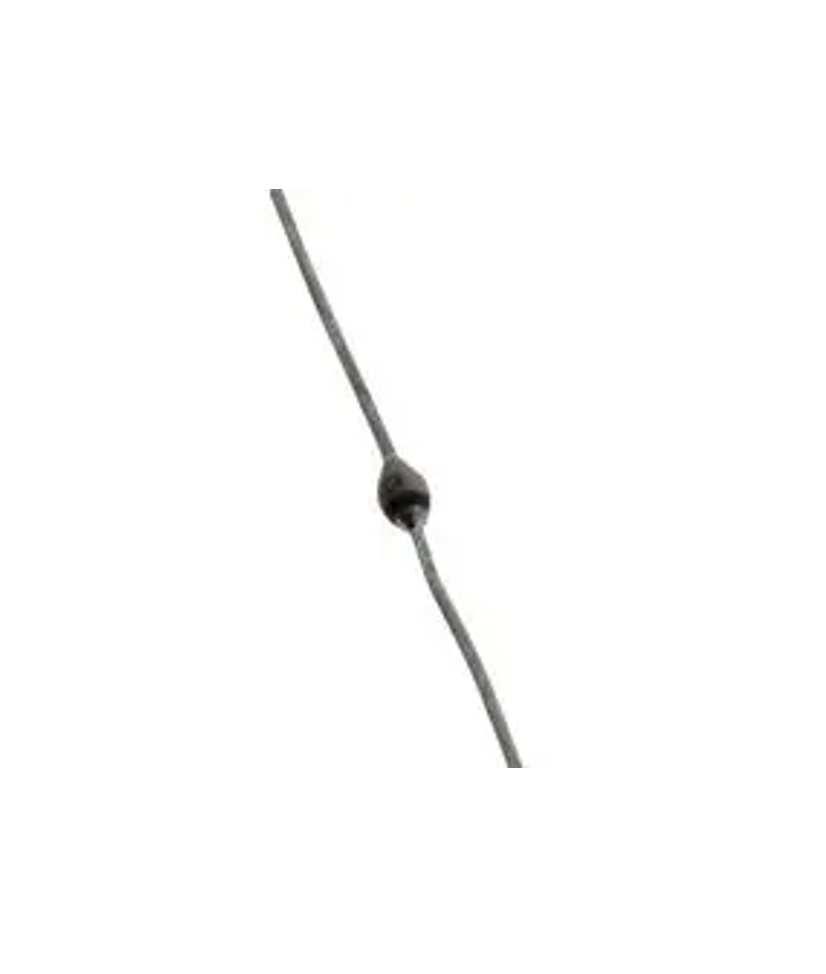

1N5811 Ultra Fast Diode 150V, 6A

The 1N5811 ultra fast diode features a voltage of 150V and a current rating of 6A.

  • Exceptional efficiency
  • Low forward voltage
  • Extremely fast reverse recovery time
  • Extremely fast forward recovery time
  • High surge
  • Small size
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

This series of high efficiency power rectifiers allows circuit designers to design high current, high frequency supplies to 500kHz with very low diode losses. The high forward surge capability makes these devices ideal for protective circuits.

Typical Applications

  • Protective circuits
  • Power management

Refer to manufacturer’s datasheet for full technical information.

Manufacturer

Applications

,

Repetitive Peak Reverse Voltage (VRRM)

150V

Average Forward Current (IFAV)

6A

Maximum Average DC Output Current ID(AV)M

6A

Maximum Surge Forward Current (IFSM)

125A

Operating Temperature Range (TJ op)

-65°C to +175°C

Maximum Forward Voltage Drop (VF)

0.875V

Leakage Current (mA)

5μA

Maximum Reverse Recovery Time (trr)

30ns

Typical Forward Recovery Time (Tfr)

15ns

Typical Forward Recovery Voltage (Vfr)

1.5V

Typical Junction Capacitance

45pf

Configuration

Single

Package/Case

Axial Leaded

Product Type

Ultra Fast Diode Diode Rectifier

Datasheet

Datasheet

Solid-State-Inc.-1N5811-Datasheet.pdf
