PS835 Heatsink
PS835 Heatsink

Images are for reference only, see product specifications for full details

PS835

PS835 Large Module Device and LED Heatsink

The PS835 is a high efficiency heatsink profile designed specifically for large devices and LED heatsinks. We stock and machine a large range of heatsinks suitable for stud, modules and capsule semiconductors, alongside high power LED applications.

  • Profile dimensions – 84mm x 750mm
  • Suitable for large modules and LED heatsinks
  • Extrusion in stock
  • Cut to any length
  • Machined to order
  • Optional finishes

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

As one of the UK’s leading heatsink suppliers, we stock and machine a wide range of extruded aluminium heatsinks and offer custom designs to cater to customers drawings. We have been supplying heatsinks to customers for many years in the rail, LED lighting, solar, industrial, automotive and marine industries.

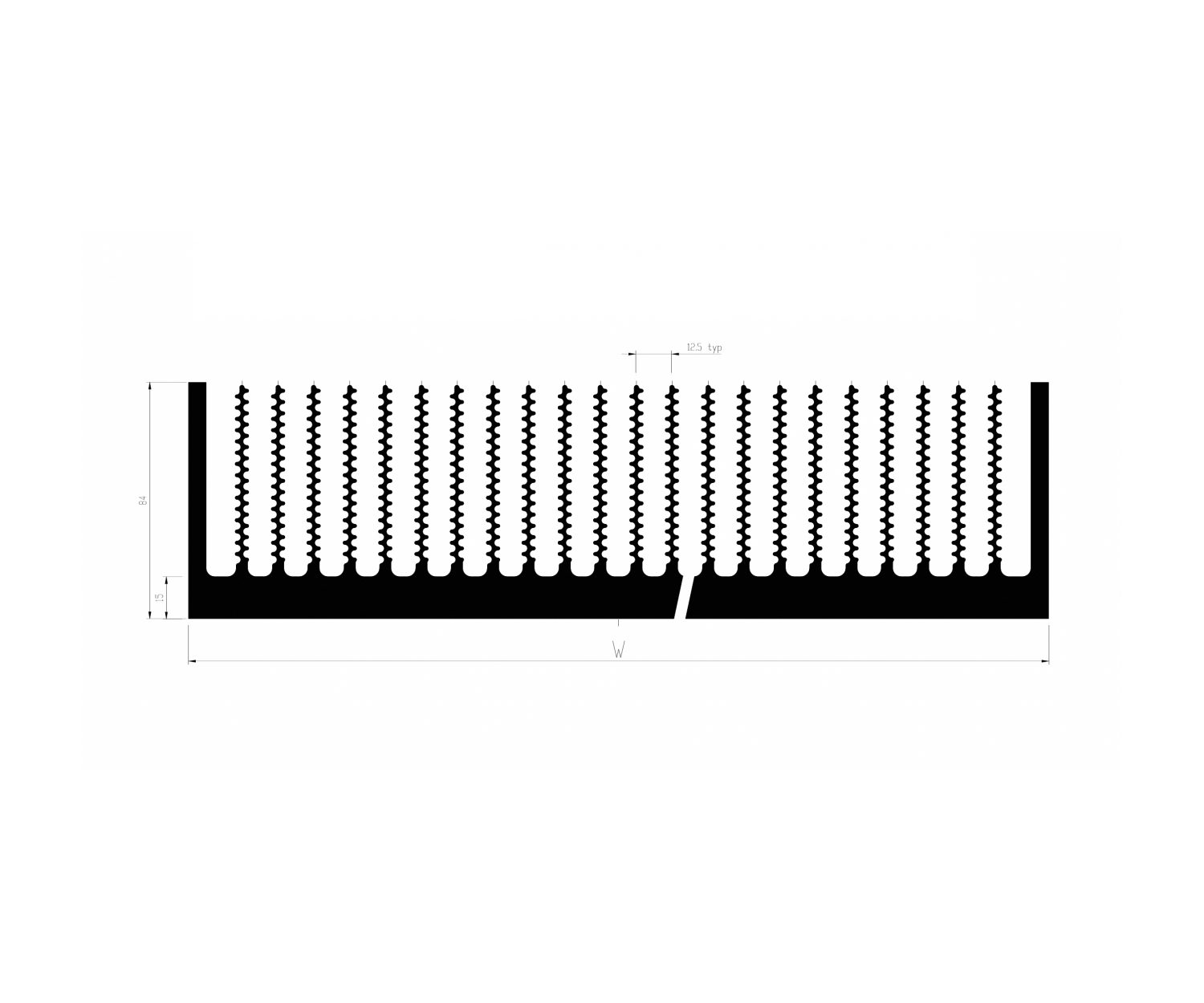

Profile Dimensions
84mm x 750mm

Thermal Data

Heatsink Ref. Width mm No. Fins Length 100mm RthC/W NAC Length 200mm Rth C/W NAC Length 300mm Rth C/W NAC Length 400mm Rth C/W NAC Length 300mm Rth C/W 7M/S Length 300mm Rth C/W 10M/S
PS835 750 60 0.146 0.09 0.078 0.067 0.0165 0.009



Comparison Guide
Browse the heatsink range by device type, part number or comparison guide. The comparison guide allows you to compare the various sizes of each device along with the thermal impedance.

PS835 Comparison Guide

Compliance
ISO 9001:2015, RoHS Compliant

Typical Applications

  • Rail
  • LED Lighting
  • Solar
  • Electrical & Industrial equipment
  • Automotive
  • Marine

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , , , ,

Height (mm)

84mm

Width (mm)

750mm

Compliance

RoHS Compliant

With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.

The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.

The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.

GD Rectifiers

GD Rectifiers design and manufacture selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

We are one of the UK’s leading distributors of power electronic components and hold extensive stock of diodes, thyristors, IGBTs and MOSFETs from the world’s leading semiconductor manufacturers.

Learn more about our products by getting in touch with us.

Datasheet

Datasheet

GD Rectifiers PS835 Datasheet.pdf
