Images are for reference only, see product specifications for full details
PS484C Large Isolated Device Heatsink
The PS484C is a high efficiency heatsink profile designed specifically for large isolated devices. We stock and machine a large range of heatsinks suitable for stud, modules and capsule semiconductors, alongside high power LED applications.
- Profile dimensions – 84mm x 400mm
- Suitable for large isolated modules
- Extrusion in stock
- Cut to any length
- Machined to order
- Optional finishes
As one of the UK’s leading heatsink suppliers, we stock and machine a wide range of extruded aluminium heatsinks and offer custom designs to cater to customers drawings. We have been supplying heatsinks to customers for many years in the rail, LED lighting, solar, industrial, automotive and marine industries.

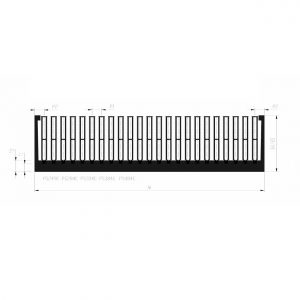

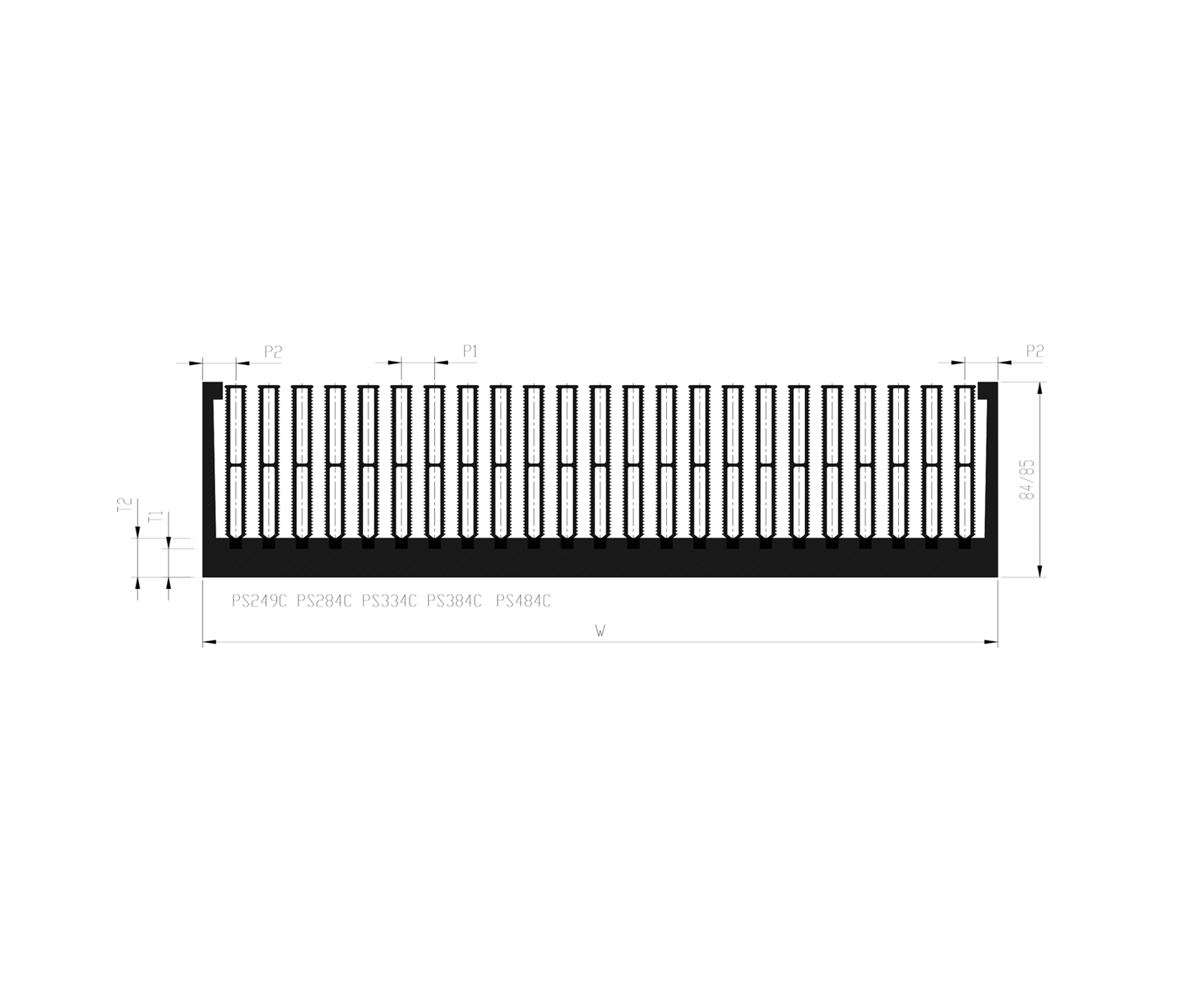

Profile Dimensions
84mm x 400mm
Thermal Data
| Heatsink Ref. | Width mm | No. Fins | T1 mm | T2 mm | P1 mm | P2 mm | Length RthC/W 100mm | Length Rth C/W 200mm | Length Rth C/W 300mm | Length Rth C/W 400mm | Length Rth C/W 500mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PS484C | 400mm | 31 | 16 | 20 | 13 | 13 | 0.036 | 0.026 | 0.019 | 0.0176 | 0.0165 |
Compliance
ISO 9001:2015, RoHS Compliant
Typical Applications
- Rail
- Solar
- Electrical & Industrial equipment
- Automotive
- Marine
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Automotive, Electrical and Industrial Equipment, Marine, Rail, Solar Power |
| Compliance | RoHS Compliant |
| Height (mm) | 84mm |
| Width (mm) | 400mm |
