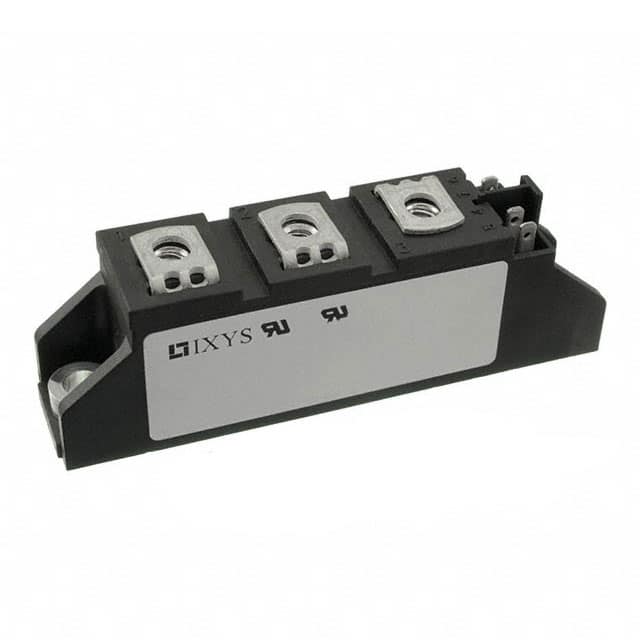

MCC95-12IO1B Dual Thyristor Module 2x1200V, 116A
The MCC95-12IO1B dual thyristor module offers space and weight savings and are designed to meet the general requirements of power control applications by providing high current handling capabilities.
- Thyristor for line frequency
- Direct copper bonded AI2O3-ceramic base plate
- Planar passivated chips
- Isolation voltage 4800V
- Advanced power cycling
The MCC95-12IO1B dual thyristor module simplifies the conventional multilayer module construction by the DCB (Direct Copper Bonding) technique.
Approvals
RoHS Compliant, UL Recognised
Typical Applications
- Softstart AC motor controller
- Lighting and temperature control
- DC motor control
- Power converters
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | DC Motor Control, Lighting and Temperature Control, Power Converters, Softstart AC Motor Controller |
| Maximum Repetitive Reverse Voltage (VRRM) | 2x 1300V |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1300V |
| Value for Fusing (I2t) | 25.3kA2s |
| Forward Voltage Drop (VT) | 1.28V |
| Reverse Current, Drain Current (IR/D) | 200μA |
| Threshold Voltage (VT0) | 0.85V |
| Slope Resistance (rT) | 2.4mΩ |
| Thermal Resistance Junction to Case (RthJC) | 0.22 K/W |
| Thermal Resistance Junction to Heatsink (RthCH) | 0.2 K/W |
| Total Power Dissipation (Ptot) | 455W |
| Maximum Forward Surge Current (ITSM), 125°C 50Hz, 60Hz | 1.92kA, 2.07kA |
| Turn-off Time (Tq) | 185μs |
| Operating Temperature (Top) | -40°C to +100°C |
| Package/Case | TO-240 AA |
| Mounting Style | Screw Mount |
| Type | Phase Leg |
| Product Type | Thyristor Module |
| Compliance | RoHS Compliant, UL Recognised |
