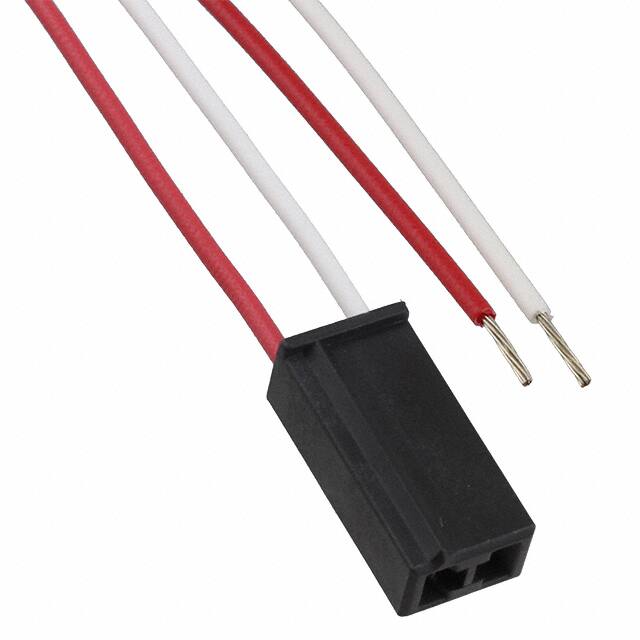

ZY180R350 Keyed Gate Cathode Twin Plugs
The ZY180R350 keyed gate cathode twin plug is a spacer to lift MCC310 terminals to the height of MCC312.
- MCC modules require 2 leads (both ZY180L for pin pair 4/5 and ZY180R for pin pair 6/7)
- MCD/MCO modules only require one lead (ZY180L for pin pair 4/5)
- Keyed Gate Cathode twin plugs
- Wire length = 350mm
- Gate = Yellow (or white) wire, Cathode = Red wire
For further information on semiconductor accessories, please contact us on: 01444 243 452 or email enquiries@gdrectifiers.co.uk.
Optional accessories for modules
ZY180 Module Leads for module types MCC/MCD/MCO/MCMA 132 and up:
MCC132/MCD132; MCC161/MCD161; MCC162/MCD162; MCC200/MCD200; MCC220/MCD220; MCC224/MCD224; MCC225/MCD225; MCC250/MCD250; MCC255/MCD255; MCC260/MCD260; MCC265/MCD265; MCC310/MCD310; MCC312/MCD312; MCC500/MCD500; MCC501/MCD501, MCC700/MCD700.
Also all MCO and MCMA modules of the same type.
Notes
How to distinguish Right and Left leads:
Look at black plastic terminal connector end on: the triangular nodule should be facing downwards. If it is on the left it is a Left lead, if it is on the right it is a Right lead.
On a ZY180 lead the nodule is above the cathode (red) wire.
On a ZY200 lead the nodule is above the gate (yellow or white) wire.
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Product Status | Active |
| Product Type | Keyed Gate Cathode Twin Plugs |
| Wire Length | 350mm |
