W6262ZC220

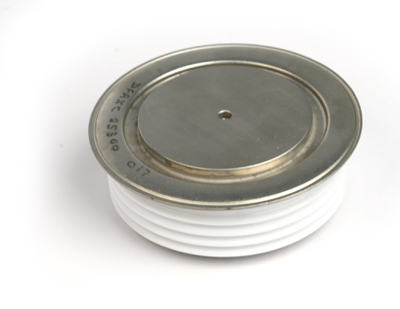

W6262ZC220 Rectifier Diode 2200V, 6262A

The W6262ZC220 is a capsule type rectifier diode has a voltage of 2200V and a current of 6262A.

  • Low conduction losses
  • High temperature alloyed die construction
  • Low thermal impedance
  • High overload capacity
  • Low temperature sintering technology and improved package design

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The rectifier diode offers class leading performance and reliability, devices are optimised to provide low conduction losses and are ideally suited to line frequency applications up to 400Hz.

Approvals
RoHS Compliant

Typical Applications

  • Input rectifiers for variable speed drives
  • Traction converters
  • Trackside substations
  • Welding and DC power supplies

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

2200V

Maximum Surge Forward Current (IFSM)

67kA

Value for Fusing (I2t)

22.4 x 106 A2s

RMS Forward Current (IFRMS)

11327A

Non-Repetitive Peak Reverse Voltage (VRSM)

2300V

DC Forward Current, Tsink = 25°C IF(d.c.)

9885A

Maximum Peak Forward Voltage (VFM)

1.18V

Thermal Resistance Junction to Heatsink (RthJK) Double side cooled

0.011 K/W

Operating Temperature Range (TJ op)

-40°C to +175°C

Maximum Repetitive Reverse Current (IRRM)

150mA

Product Type

Rectifier Diode Capsule Rectifier Diode

Compliance

RoHS Compliant

IXYS UK Westcode is one the of the UK’s leading semiconductor manufacturers. Formerly known as Westcode, they launched the world’s first commercial rectifier in the early 1920’s. Westcode was acquired by IXYS Corporation in 2002, and shortly after changed its name to IXYS UK Westcode. Today, they manufacture high power thyristor capsules (GTO, fast & standard recovery), diode capsules (fast & standard recovery) and IGBT capsules.

As IXYS UK Westcode’s Official UK Distributor, we stock Europe’s largest range of IXYS UK’s semiconductors, fuses and capacitors. The company provide a large range fuses offering fast-acting, ultra rapid protection against device rupture and external short circuits. IXYS UK’s range of fuses feature proven advanced technology to international standards and are UL recognised. IXYS UK Westcode offer a range of power electronic capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

One of the industries leading power semiconductor manufacturers, IXYS UK Westcode supplies high technology components to a wide range of applications, including: welding, AC and DC drives, rectifier supplies, uninterruptible power supplies, motor soft starts, transportation, induction heating and power conditioning.

IXYS UK Westcode

IXYS UK Westcode, formerly Westcode Semiconductors has been at the forefront of power semiconductor design. Supporting a truly worldwide and diverse market place, IXYS UK Westcode has evolved in to one of the world’s leading manufacturers of high power semiconductors.

IXYS UK Westcode is now part of Littelfuse. Together, IXYS and Littelfuse will leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS UK Westcode products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

IXYS-UK-Westcode-W6262ZC220-Datasheet.pdf

Product Catalogue

Product Catalogue

IXYS UK Westcode Product Catalogue

Selector Guides

Selector Guides

IXYS UK Westcode PSC Square Body Fuses Selector Guide

Selector Guides

IXYS UK Westcode NH Square Body Fuses

Selector Guides

IXYS UK Westcode Power Capacitors Selector Guide

Selector Guides

IXYS UK Westcode PSC Fuses Selector Guide

Selector Guides

IXYS UK Westcode Cylindrical Fuse Selector Guide

Selector Guides

IXYS UK Westcode BS88 Fuse Selector Guide

Press Releases

Press Releases

IXYS UK Westcode Press Pack IGBT Press Release

Press Releases

IXYS UK Westcode 4.5kV FRD Press Release

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

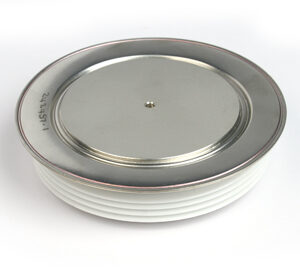

W5838ZD200 Rectifier Diode 2000V, 5838A

W5838ZD200 Rectifier Diode 2000V, 5838A

  • Download Datasheet
  • Parts List
  • Compare

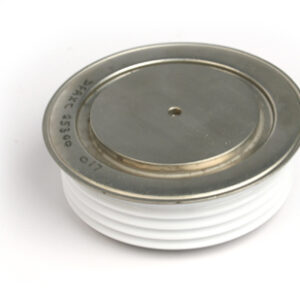

W5696VC140 Rectifier Diode 1400V, 5696A
