SW06PCR040 In stock

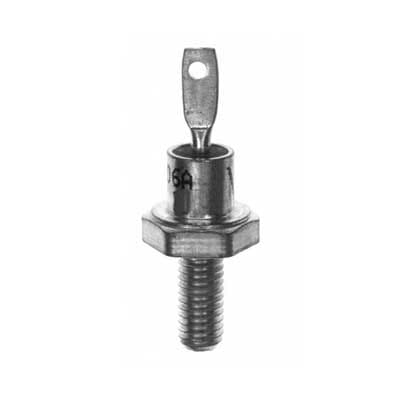

SW06PCR040 Silicon Rectifier Diode 600V, 70A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / [email protected]

The SW06PCR040 is a silicon rectifier diode with a voltage rating of 600V. The SW06PCR040 has an average forward current of 70A and an I2t value of 2113 A2s.

  • Voltage range 600V
  • Stud type
  • Plastic and metal housings
  • Obsolete semiconductor
  • The DS-series and DSI-series are modern day alternatives
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The rectifier diode is available with plastic and metal housings and different diode bridges are also available for standard line voltages from 110V to 690Vac.

This device is now obsolete and is not recommended for new designs.

Typical Applications

  • Rectifiers
  • Power supplies

Refer to manufacturer’s datasheet for full technical information.

Manufacturer

Applications

,

Maximum Repetitive Reverse Voltage (VRRM)

600V

RMS Forward Current (IFRMS)

118A

Forward Current (IF)

118A

Maximum Surge Forward Current (IFSM)

650A

Value for Fusing (I2t)

2113 A2s

Maximum Repetitive Reverse Current (IRRM)

8mA

Forward Conduction Threshold Voltage (V0)

1V

Maximum Junction Temperature (TJ Max.)

175°C

Mounting Style

Stud Mount

Product Type

Rectifier Diode Diode

IXYS UK Westcode is one the of the UK’s leading semiconductor manufacturers. Formerly known as Westcode, they launched the world’s first commercial rectifier in the early 1920’s. Westcode was acquired by IXYS Corporation in 2002, and shortly after changed its name to IXYS UK Westcode. Today, they manufacture high power thyristor capsules (GTO, fast & standard recovery), diode capsules (fast & standard recovery) and IGBT capsules.

As IXYS UK Westcode’s Official UK Distributor, we stock Europe’s largest range of IXYS UK’s semiconductors, fuses and capacitors. The company provide a large range fuses offering fast-acting, ultra rapid protection against device rupture and external short circuits. IXYS UK’s range of fuses feature proven advanced technology to international standards and are UL recognised. IXYS UK Westcode offer a range of power electronic capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

One of the industries leading power semiconductor manufacturers, IXYS UK Westcode supplies high technology components to a wide range of applications, including: welding, AC and DC drives, rectifier supplies, uninterruptible power supplies, motor soft starts, transportation, induction heating and power conditioning.

IXYS UK Westcode

IXYS UK Westcode, formerly Westcode Semiconductors has been at the forefront of power semiconductor design. Supporting a truly worldwide and diverse market place, IXYS UK Westcode has evolved in to one of the world’s leading manufacturers of high power semiconductors.

IXYS UK Westcode is now part of Littelfuse. Together, IXYS and Littelfuse will leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS UK Westcode products by getting in touch with GD Rectifiers.
