SM08PCN074 HT In stock

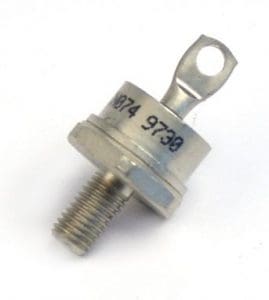

SM08PCN074 Fast Recovery Diode, 800V 65A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

The SM08PCN074 Fast Recovery Diode (FRD) features low switching losses and soft recovery behaviour. It is suitable for power management, HVAC, motor drives and control applications.

  • Fast recovery stud-base diode
  • Cathode stud (forward) polarity
  • Low switching losses
  • Soft recovery behaviour
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

Ideally suited for use as antiparallel diodes in Gate Turn-Off thyristors and Fast Thyristor inverters; and as series and freewheel diodes for choppers.

SM08PCN074 can be used instead of SM06PCN074; SM04PCN074; SM02PCN074; SM08PCN046; SM06PCN046; SM04PCN046; SM02PCN046 as the device is mechanically and electrically superior.

Approvals
RoHS Compliant

Typical Applications

  • Power Management
  • Motor Drives & Control
  • HVAC

This part is now obsolete and stock is limited.
For further information on this device please contact our sales team on 01444 243 452 or email enquiries@gdrectifiers.co.uk.

Refer to manufacturer’s datasheet for full technical information.

Manufacturer

Applications

, ,

Maximum Repetitive Reverse Voltage (VRRM)

800V

IXYS UK Westcode is one the of the UK’s leading semiconductor manufacturers. Formerly known as Westcode, they launched the world’s first commercial rectifier in the early 1920’s. Westcode was acquired by IXYS Corporation in 2002, and shortly after changed its name to IXYS UK Westcode. Today, they manufacture high power thyristor capsules (GTO, fast & standard recovery), diode capsules (fast & standard recovery) and IGBT capsules.

As IXYS UK Westcode’s Official UK Distributor, we stock Europe’s largest range of IXYS UK’s semiconductors, fuses and capacitors. The company provide a large range fuses offering fast-acting, ultra rapid protection against device rupture and external short circuits. IXYS UK’s range of fuses feature proven advanced technology to international standards and are UL recognised. IXYS UK Westcode offer a range of power electronic capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

One of the industries leading power semiconductor manufacturers, IXYS UK Westcode supplies high technology components to a wide range of applications, including: welding, AC and DC drives, rectifier supplies, uninterruptible power supplies, motor soft starts, transportation, induction heating and power conditioning.

IXYS UK Westcode

IXYS UK Westcode, formerly Westcode Semiconductors has been at the forefront of power semiconductor design. Supporting a truly worldwide and diverse market place, IXYS UK Westcode has evolved in to one of the world’s leading manufacturers of high power semiconductors.

IXYS UK Westcode is now part of Littelfuse. Together, IXYS and Littelfuse will leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS UK Westcode products by getting in touch with GD Rectifiers.
