R1446NC12E HT In stock

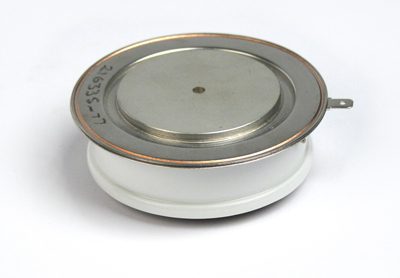

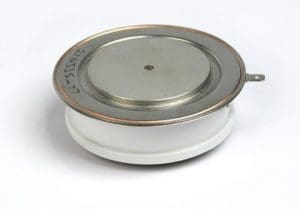

R1446NC12E Distributed Gate Thyristor 1600V, 1446A

The R1446NC12E is a capsule type distributed gate thyristor designed for induction power supplies, high frequency inverters/converters, UPS and pulse power.

  • High di/dt capability
  • Low on-state voltage drop
  • Fast, low recovery turn-off
  • Industry standard outline
  • High reliability
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

These devices are available with blocking voltages to 4.5kV and average currents in excess of 5kA, with tq ratings from 10μs. The unique distributed gate design and lifetime control features give these devices both high di/dt capability and fast, low recovery turn-off, while maintaining a low on-state voltage drop.

Typical Applications

  • Induction power supplies
  • High frequency inverters/converters
  • UPS and pulse power applications

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, ,

Repetitive Peak Off-state Voltage (VDRM)

1200V

Peak Non-Repetitive Surge (ITSM)

19.5kA

Turn-off Time (Tq)

30μs

Non-Repetitive Peak Reverse Voltage (VRSM)

1300V

Nominal RMS On-state Current IT(RMS)

2940A

Capacity for Fusing (I2t)

1.9 x 106 A2s

Operating Temperature Range (THS)

-40°C to +125°C

Threshold Voltage (VT0)

1.304V

Slope Resistance (rs)

0.199mΩ

Product Type

Distributed Gate Thyristor

Compliance

RoHS Compliant

Mean On-State Current (ITAV)

1446A

IXYS UK Westcode is one the of the UK’s leading semiconductor manufacturers. Formerly known as Westcode, they launched the world’s first commercial rectifier in the early 1920’s. Westcode was acquired by IXYS Corporation in 2002, and shortly after changed its name to IXYS UK Westcode. Today, they manufacture high power thyristor capsules (GTO, fast & standard recovery), diode capsules (fast & standard recovery) and IGBT capsules.

As IXYS UK Westcode’s Official UK Distributor, we stock Europe’s largest range of IXYS UK’s semiconductors, fuses and capacitors. The company provide a large range fuses offering fast-acting, ultra rapid protection against device rupture and external short circuits. IXYS UK’s range of fuses feature proven advanced technology to international standards and are UL recognised. IXYS UK Westcode offer a range of power electronic capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

One of the industries leading power semiconductor manufacturers, IXYS UK Westcode supplies high technology components to a wide range of applications, including: welding, AC and DC drives, rectifier supplies, uninterruptible power supplies, motor soft starts, transportation, induction heating and power conditioning.

IXYS UK Westcode

IXYS UK Westcode, formerly Westcode Semiconductors has been at the forefront of power semiconductor design. Supporting a truly worldwide and diverse market place, IXYS UK Westcode has evolved in to one of the world’s leading manufacturers of high power semiconductors.

IXYS UK Westcode is now part of Littelfuse. Together, IXYS and Littelfuse will leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS UK Westcode products by getting in touch with GD Rectifiers.
