R0878LC20L HT In stock

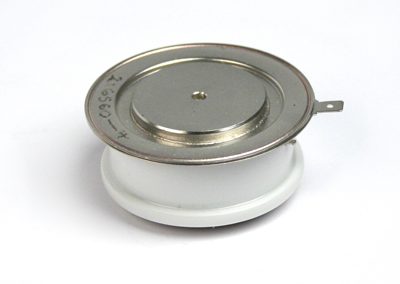

R0878LC20L Distributed Gate Thyristor 2000V, 878A

The R0878LC20L is a capsule type distributed gate thyristor designed for induction power supplies, high frequency inverters/converters, UPS and pulse power.

  • High di/dt capability
  • Low on-state voltage drop
  • Fast, low recovery turn-off
  • Industry standard outline
  • High reliability
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

These devices are available with blocking voltages to 4.5kV and average currents in excess of 5kA, with tq ratings from 10μs. The unique distributed gate design and lifetime control features give these devices both high di/dt capability and fast, low recovery turn-off, while maintaining a low on-state voltage drop.

Typical Applications

  • Induction power supplies
  • High frequency inverters/converters
  • UPS and pulse power applications

Refer to manufacturer’s datasheet for full technical information. Images are for reference only, see product specifications for full details.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, ,

Repetitive Peak Off-state Voltage (VDRM)

2000V

Non-Repetitive Peak Reverse Voltage (VRSM)

2100V

Mean On-state Current IT(AV)M

878A

Peak Non-Repetitive Surge (ITSM)

7500A

Turn-off Time (Tq)

65μs

Nominal RMS On-state Current IT(RMS)

1765A

Capacity for Fusing (I2t)

281 x 103 A2s

Operating Temperature Range (TJ op)

-40°C to +125°C

Threshold Voltage (VT0)

1.447V

Slope Resistance (rT)

0.480mΩ

Product Type

Distributed Gate Thyristor

Compliance

RoHS Compliant

IXYS UK Westcode is one the of the UK’s leading semiconductor manufacturers. Formerly known as Westcode, they launched the world’s first commercial rectifier in the early 1920’s. Westcode was acquired by IXYS Corporation in 2002, and shortly after changed its name to IXYS UK Westcode. Today, they manufacture high power thyristor capsules (GTO, fast & standard recovery), diode capsules (fast & standard recovery) and IGBT capsules.

As IXYS UK Westcode’s Official UK Distributor, we stock Europe’s largest range of IXYS UK’s semiconductors, fuses and capacitors. The company provide a large range fuses offering fast-acting, ultra rapid protection against device rupture and external short circuits. IXYS UK’s range of fuses feature proven advanced technology to international standards and are UL recognised. IXYS UK Westcode offer a range of power electronic capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

One of the industries leading power semiconductor manufacturers, IXYS UK Westcode supplies high technology components to a wide range of applications, including: welding, AC and DC drives, rectifier supplies, uninterruptible power supplies, motor soft starts, transportation, induction heating and power conditioning.

IXYS UK Westcode

IXYS UK Westcode, formerly Westcode Semiconductors has been at the forefront of power semiconductor design. Supporting a truly worldwide and diverse market place, IXYS UK Westcode has evolved in to one of the world’s leading manufacturers of high power semiconductors.

IXYS UK Westcode is now part of Littelfuse. Together, IXYS and Littelfuse will leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS UK Westcode products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

r0878lc20l.aspx?desktop=true

Product Catalogue

Product Catalogue

IXYS UK Westcode Product Catalogue

Selector Guides

Selector Guides

IXYS UK Westcode PSC Square Body Fuses Selector Guide

Selector Guides

IXYS UK Westcode NH Square Body Fuses

Selector Guides

IXYS UK Westcode Power Capacitors Selector Guide

Selector Guides

IXYS UK Westcode PSC Fuses Selector Guide

Selector Guides

IXYS UK Westcode Cylindrical Fuse Selector Guide

Selector Guides

IXYS UK Westcode BS88 Fuse Selector Guide

Press Releases

Press Releases

IXYS UK Westcode Press Pack IGBT Press Release

Press Releases

IXYS UK Westcode 4.5kV FRD Press Release

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

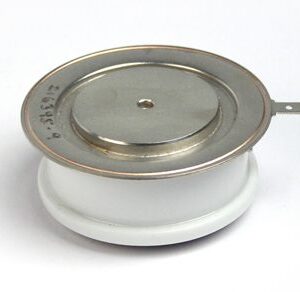

R0929LC12B Distributed Gate Thyristor 1200V, 929A

R0929LC12B Distributed Gate Thyristor 1200V, 929A

  • Parts List
  • Compare

R0878LC21J Distributed Gate Thyristor 2100V, 878A

R0878LC21J Distributed Gate Thyristor 2100V, 878A

  • Parts List
  • Compare

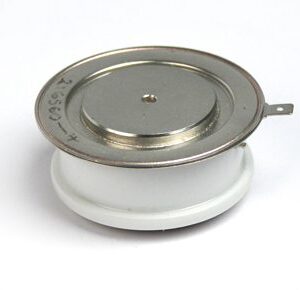

R0878LS21K Distributed Gate Thyristor 2100V, 878A
