P1007LS12D HT In stock

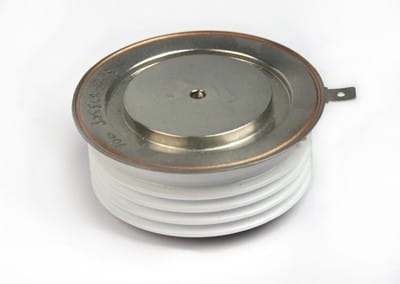

P1007LS12D Fast Turn-off Thyristor 1200V, 1007A

The P1007LS12D is a fast turn-off capsule type thyristor featuring a regenerative gate structure to ensure low switching losses and high di/dt performance.

  • Low reverse recovery charge values
  • Pressure contact technology
  • Low forward switching losses
  • Industry standard outline
  • High reliability
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The P series devices are suitable for existing inverters, DC chopper drives, UPS and pulse power applications.

In addition to pressure contact technology, these devices offer low reverse recovery charge values, low forward switching losses and high reliability. These fast thyristors allow for the development of highly efficient; compact and reliable high frequency resonant converters for demanding applications such as induction heating; traction and UPS. Additionally these devices make an excellent choice for fast high-energy switches such as pulsed power and crowbars.

Typical Applications

  • Existing inverters
  • DC chopper drives
  • UPS and pulse power applications

Refer to manufacturer’s datasheet for full technical information.

Manufacturer

Applications

, ,

Maximum Repetitive Reverse Voltage (VRRM)

1200V

Turn-off Time (Tq)

25μs

Non-Repetitive Peak Reverse Voltage (VRSM)

1300V

Value for Fusing (I2t)

4.51 x 105 A2s

Operating Temperature Range (THS)

-40°C to +125°C

Threshold Voltage (V0)

1.509V

Slope Resistance (rs)

0.265mΩ

Product Type

Fast Thyristor

IXYS UK Westcode is one the of the UK’s leading semiconductor manufacturers. Formerly known as Westcode, they launched the world’s first commercial rectifier in the early 1920’s. Westcode was acquired by IXYS Corporation in 2002, and shortly after changed its name to IXYS UK Westcode. Today, they manufacture high power thyristor capsules (GTO, fast & standard recovery), diode capsules (fast & standard recovery) and IGBT capsules.

As IXYS UK Westcode’s Official UK Distributor, we stock Europe’s largest range of IXYS UK’s semiconductors, fuses and capacitors. The company provide a large range fuses offering fast-acting, ultra rapid protection against device rupture and external short circuits. IXYS UK’s range of fuses feature proven advanced technology to international standards and are UL recognised. IXYS UK Westcode offer a range of power electronic capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

One of the industries leading power semiconductor manufacturers, IXYS UK Westcode supplies high technology components to a wide range of applications, including: welding, AC and DC drives, rectifier supplies, uninterruptible power supplies, motor soft starts, transportation, induction heating and power conditioning.

IXYS UK Westcode

IXYS UK Westcode, formerly Westcode Semiconductors has been at the forefront of power semiconductor design. Supporting a truly worldwide and diverse market place, IXYS UK Westcode has evolved in to one of the world’s leading manufacturers of high power semiconductors.

IXYS UK Westcode is now part of Littelfuse. Together, IXYS and Littelfuse will leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS UK Westcode products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

IXYS UK Westcode P1007LS12D Datasheet.pdf

Product Catalogue

Product Catalogue

IXYS UK Westcode Product Catalogue

Selector Guides

Selector Guides

IXYS UK Westcode PSC Square Body Fuses Selector Guide

Selector Guides

IXYS UK Westcode NH Square Body Fuses

Selector Guides

IXYS UK Westcode Power Capacitors Selector Guide

Selector Guides

IXYS UK Westcode PSC Fuses Selector Guide

Selector Guides

IXYS UK Westcode Cylindrical Fuse Selector Guide

Selector Guides

IXYS UK Westcode BS88 Fuse Selector Guide

Press Releases

Press Releases

IXYS UK Westcode Press Pack IGBT Press Release

Press Releases

IXYS UK Westcode 4.5kV FRD Press Release

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Parts List
  • Compare

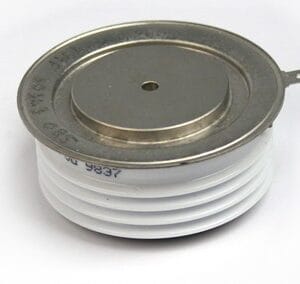

P1007LS12E Fast Turn-off Thyristor 1200V, 1007A
