M0588LC400

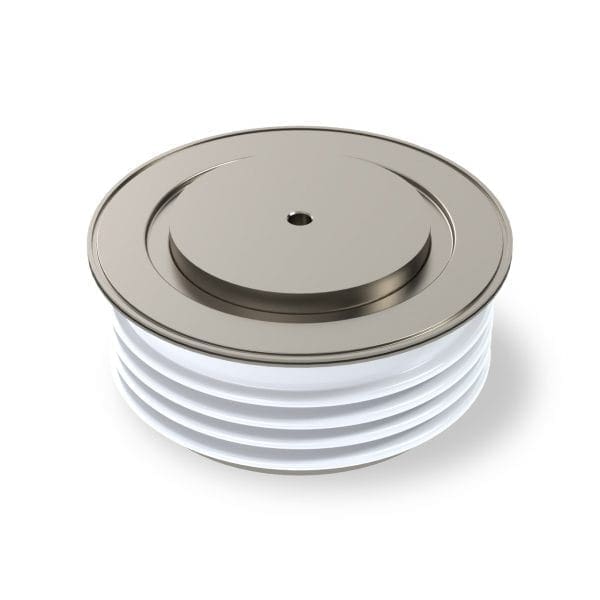

M0588LC400 Fast Recovery Diode 4000V, 588A

The M0588LC400 is suitable for use as anti-parallel diodes used in Gate Turn-Off and Fast Thyristor inverters and as diodes for choppers.

  • Repetitive peak reverse voltage 4000V
  • Mean forward current 588A
  • M0588 Series
  • Mounting force 20 kN
  • DO-200AB Package Type

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The M0588LC400 fast diodes use a combination of different technologies to complement the wide range of fast switching products.

Approvals
RoHS Compliant

Typical Applications

  • Ideal for use as anti-parallel diodes in Gate Turn-Off thyristors
  • Suitable for use as fast thyristor inverters, diodes for choppers

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, ,

Repetitive Peak Reverse Voltage (VRRM)

4000V

Non-Repetitive Peak Reverse Voltage (VRSM)

4100V

Mean Forward Current (IFAV)

588A

Package/Case

DO-200AB

Nominal RMS Forward Current IF(RMS)

1108A

Operating Temperature Range (THS)

-40 to +150°C

DC Forward Current, Tsink = 25°C IF(d.c.)

969A

Mounting Force

20 kN

Product Type

Fast Recovery Diode

IXYS UK Westcode is one the of the UK’s leading semiconductor manufacturers. Formerly known as Westcode, they launched the world’s first commercial rectifier in the early 1920’s. Westcode was acquired by IXYS Corporation in 2002, and shortly after changed its name to IXYS UK Westcode. Today, they manufacture high power thyristor capsules (GTO, fast & standard recovery), diode capsules (fast & standard recovery) and IGBT capsules.

As IXYS UK Westcode’s Official UK Distributor, we stock Europe’s largest range of IXYS UK’s semiconductors, fuses and capacitors. The company provide a large range fuses offering fast-acting, ultra rapid protection against device rupture and external short circuits. IXYS UK’s range of fuses feature proven advanced technology to international standards and are UL recognised. IXYS UK Westcode offer a range of power electronic capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

One of the industries leading power semiconductor manufacturers, IXYS UK Westcode supplies high technology components to a wide range of applications, including: welding, AC and DC drives, rectifier supplies, uninterruptible power supplies, motor soft starts, transportation, induction heating and power conditioning.

IXYS UK Westcode

IXYS UK Westcode, formerly Westcode Semiconductors has been at the forefront of power semiconductor design. Supporting a truly worldwide and diverse market place, IXYS UK Westcode has evolved in to one of the world’s leading manufacturers of high power semiconductors.

IXYS UK Westcode is now part of Littelfuse. Together, IXYS and Littelfuse will leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS UK Westcode products by getting in touch with GD Rectifiers.
