DSI17-02A HT In stock

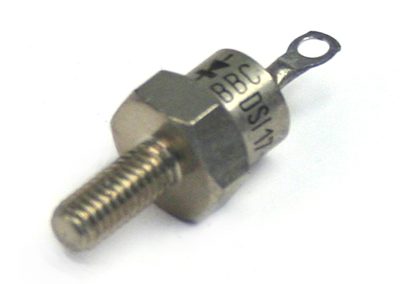

DSI17-02A Rectifier Diode 200V, 25A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

The DSI17-02A is a standard rectifier diode rated 200V and 25A.

  • International standard package
  • Planar glassivated chips
  • Improved temperature and power cycling
  • Reduced protection circuits
  • Space and weight savings
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Offering a broad range of rectifier diodes in various packages and ratings, these devices are commonly used for rectifying 50 or 60 Hz main currents. The DSI17-02A rectifier diode is ideal for DC power supplies and equipment.

Approvals
RoHS Compliant

Typical Applications

  • Supplies for DC power equipment
  • DC supply for PWM inverter
  • Field supply for DC motors
  • Battery DC power supplies

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

200V

Maximum Average Forward Current IF(AV)M

25A

RMS Forward Current (IFRMS)

40A

Maximum Peak Surge Current (IFSM)

370A

Maximum Surge Reverse Power Dissipation (PRSM)

7kW

Value for Fusing (I2t)

680 A2s

Virtual Junction Temperature (TVJ)

-40°C to +180°C

Package/Case

DO-203AB

Product Type

Rectifier Diode

Compliance

RoHS Compliant

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

IXYS DSI17-02A Datasheet.pdf

Product Catalogues

Product Catalogues

IXYS IGBTs Product Catalogue

Product Catalogues

IXYS Product Catalogue 2022-2023

Product Catalogues

IXYS Selector Guide 2015

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

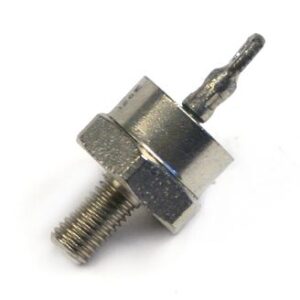

DSI35-04A Rectifier Diode 400V, 49A

DSI35-04A Rectifier Diode 400V, 49A

  • Download Datasheet
  • Parts List
  • Compare

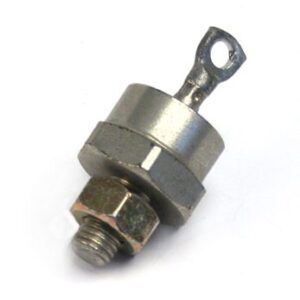

DSI35-02A Rectifier Diode 200V, 49A

DSI35-02A Rectifier Diode 200V, 49A

  • Parts List
  • Compare

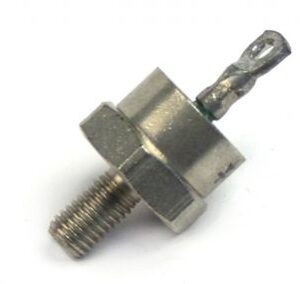

DSI35-07A Rectifier Diode 700V, 49A
