FINSVG.040.5.X.W.Z

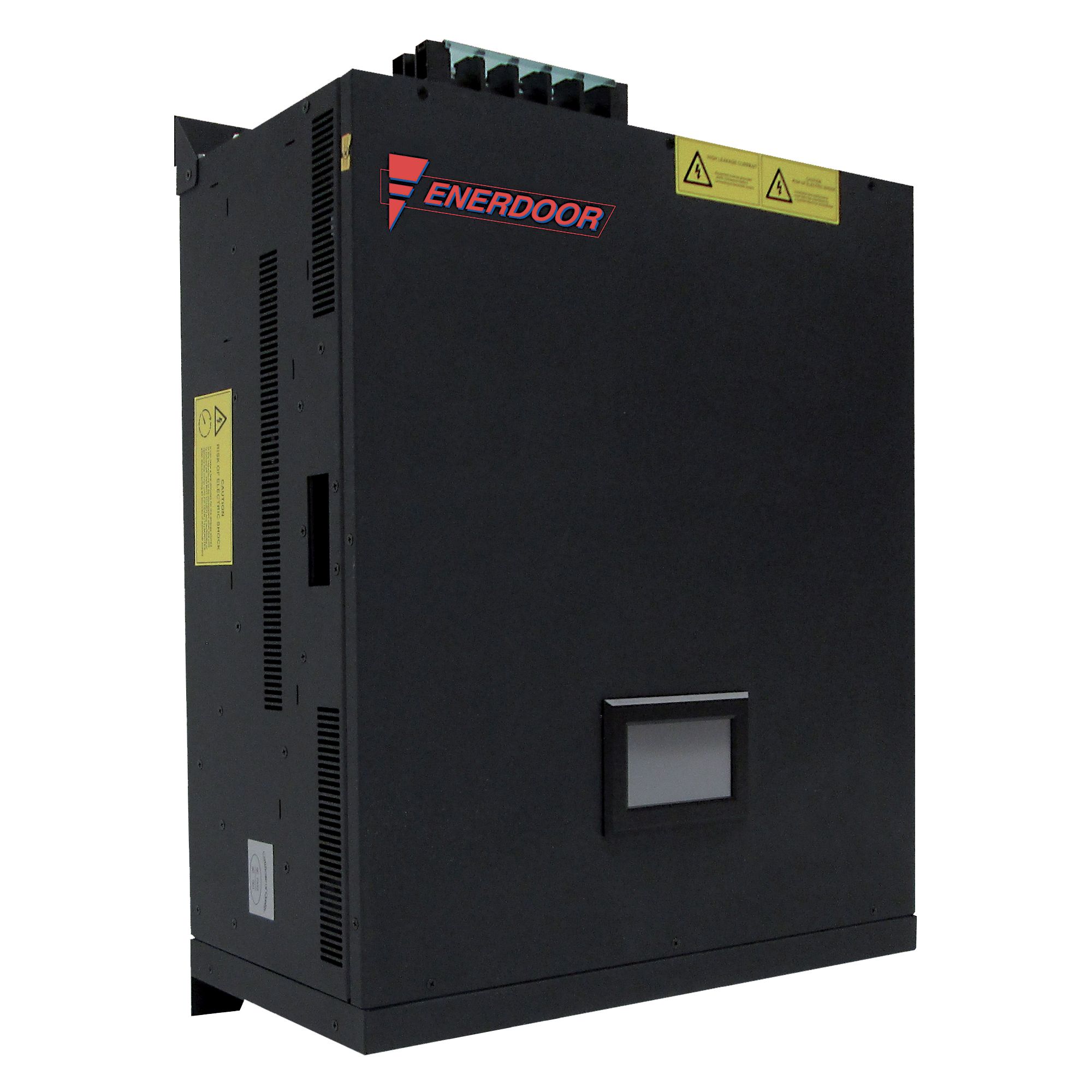

FINSVG.040.5.X.W.Z Static Var Generator

The FINSVG.040.5,X.W.Z static var generator has a nominal voltage of 480Vac, a current rating of 40A and features compensation from 30 Kvar.

  • Excellent attenuation of inductive and reactive power
  • No capacitor bank
  • Unaffected by harmonic resonance
  • High speed response
  • Modular design

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The static var generator has excellent attenuation of inductive and reactive power, controls power factor compensation and is used in the automation industry.

The FINSVG series provides a better solution for power factor correction than the commonly used capacitor banks. The FINSVG is immune to harmonics through active load balancing by advanced digital control. The compensation capacity never declines and the system is capable of compensating both inductive and capacitive reactive power.

The FINSVG offers compensation starting from 30 KVAR with a modular design and can be either wall or rack mounted. It is available starting at 208 Vac and may be installed in either a single unit system or multiple, parallel modules for entire facilities.

Approvals
RoHS Compliant, CE Certified, ETL Listed

Typical Applications

  • Soft start motors
  • DC motors
  • Oil and water plants
  • Processing machinery
  • End-user facilities

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantETL Listed

Manufacturer

Applications

, , , , , ,

Voltage (Vac)

480Vac

Current (A)

40A

PF Compensation

0.99

Case

Wall

The Enerdoor Group is the industry’s international leader in the development and production of Electromagnetic Solutions for automated and industrial machinery.  Enerdoor provides a wide array of solutions for protection of machinery and equipment, CE approval and testing and elimination of noise, improved reliability and reduced downtime. The Enerdoor Group consists of: Eichhoff Elektro, FinMotor and FinLab which all sit under the parent company.

Renowned for it’s high quality and innovative solutions, Enerdoor manufactures an extensive range of EMI filters, RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions from their Head Offices in North America and Europe.

Enerdoor supply single phase, three phase and surge protection filters designed to reduce conducted electrical interference in control cabinets. Enerdoor has EMC laboratories in the United States, Germany and Switzerland.

Eichhoff’s manufacturing plant is based in Hungary and strongly focuses on product development and EMC measurement. Eichhoff Elektro has over 40 years experience in safety transformers and electronic ignition systems. They manufacture a wide range of: RFI Filters, Sinus Filters, Reactors, Transformers, PCB Transformers and Ignition Systems.

FinMotor’s manufacturing plant and EMC laboratory is based in Italy. FinMotor manufactures Enerdoor’s EMC Filters, High Frequency inductance and Harmonic Filters for the medical and military markets. They manufacture a wide range of RFI Filters, Passive Harmonic Filters, High Current Sinus Filters, High Frequency Impedances, Motor Protection and Snubbers.

FinLab’s laboratory is based in Milan and focuses on EMC measurement (certification, analysis, solutions and training), harmonic measurement (analysis, solutions and training), acoustic measurement, technical construction file and vibration measurements carried out in their anechoic room and mobile laboratories.

Enerdoor

Enerdoor is part of The Enerdoor Group which consists of Enerdoor in North America and Europe; Finmotor and Finlab in Italy; and Eichhoff Elektro in Hungary.

The group is an international leader in the development and production of electromagnetic solutions for automated and industrial machinery.

The broad range of products include: EMI/RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions.
