FINSTP.068.M100

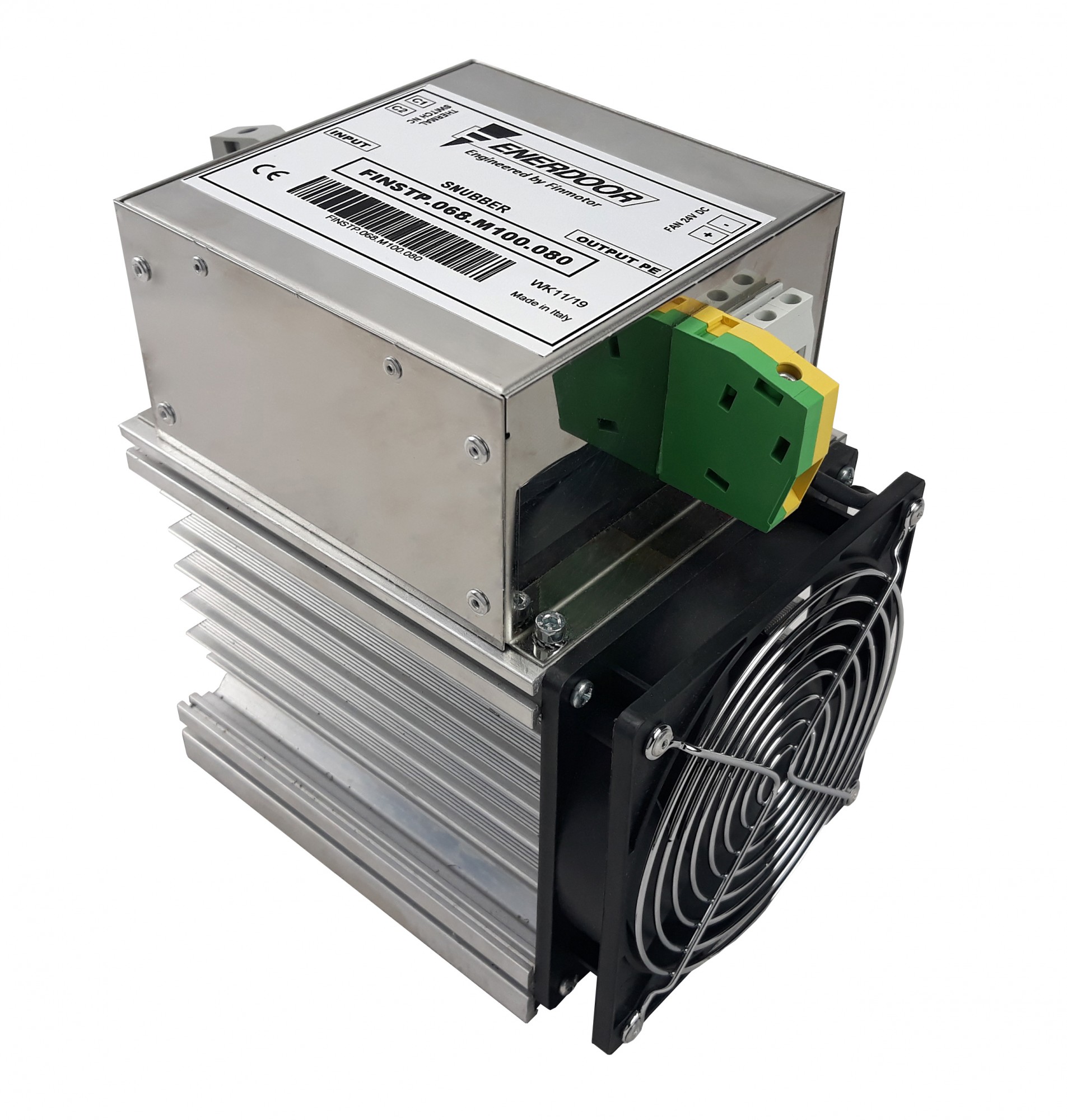

FINSTP.068.M100 Star Point Snubber

The FINSTP.068.M100 is a star point snubber with excellent attenuation to reduce dV/dt. It has a current rating of 68A, with a voltage rating of 600Vac in a compact design.

  • Reduces dV/dt star point – PE
  • Protection of motor winding insulation and bearings
  • Very low power loss
  • Remote contact indicator
  • Compact dimension due to the parallel installation

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The star point snubber protects motor winding insulation and bearings, provides over temperature protection and has very low power loss.

The motor protection series protects motors from harmful overvoltage and dV/dt spikes generated by the drive’s output and is important for applications with variable frequency drives, servo drives, and long cable applications.

Approvals
RoHS Compliant, CE Marked, carUus marked, UL508

Typical Applications

  • Large motors
  • Spindle motors
  • Long cable applications with variable frequency drives or servo drives

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS Compliant

Manufacturer

Applications

, ,

Voltage (Vac)

600Vac

Carrier Frequency (kHz)

0-5kHz

Output Frequency (Hz)

50-1000Hz

Maximum Peak Voltage Phase to Phase (V)

3000V

Maximum Peak Voltage Phase to Ground (V)

3500V

Maximum Power Dissipation (W)

250W

IP Protection

IP20

Climatic Class

-40°C to +85°C

MTBF at 40°C

250 Hrs

Compliance

caRUus, CE Marked, RoHS Compliant, UL508

The Enerdoor Group is the industry’s international leader in the development and production of Electromagnetic Solutions for automated and industrial machinery.  Enerdoor provides a wide array of solutions for protection of machinery and equipment, CE approval and testing and elimination of noise, improved reliability and reduced downtime. The Enerdoor Group consists of: Eichhoff Elektro, FinMotor and FinLab which all sit under the parent company.

Renowned for it’s high quality and innovative solutions, Enerdoor manufactures an extensive range of EMI filters, RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions from their Head Offices in North America and Europe.

Enerdoor supply single phase, three phase and surge protection filters designed to reduce conducted electrical interference in control cabinets. Enerdoor has EMC laboratories in the United States, Germany and Switzerland.

Eichhoff’s manufacturing plant is based in Hungary and strongly focuses on product development and EMC measurement. Eichhoff Elektro has over 40 years experience in safety transformers and electronic ignition systems. They manufacture a wide range of: RFI Filters, Sinus Filters, Reactors, Transformers, PCB Transformers and Ignition Systems.

FinMotor’s manufacturing plant and EMC laboratory is based in Italy. FinMotor manufactures Enerdoor’s EMC Filters, High Frequency inductance and Harmonic Filters for the medical and military markets. They manufacture a wide range of RFI Filters, Passive Harmonic Filters, High Current Sinus Filters, High Frequency Impedances, Motor Protection and Snubbers.

FinLab’s laboratory is based in Milan and focuses on EMC measurement (certification, analysis, solutions and training), harmonic measurement (analysis, solutions and training), acoustic measurement, technical construction file and vibration measurements carried out in their anechoic room and mobile laboratories.

Enerdoor

Enerdoor is part of The Enerdoor Group which consists of Enerdoor in North America and Europe; Finmotor and Finlab in Italy; and Eichhoff Elektro in Hungary.

The group is an international leader in the development and production of electromagnetic solutions for automated and industrial machinery.

The broad range of products include: EMI/RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions.

Learn more about Enerdoor products by getting in touch with GD Rectifiers.
