FINHRMAD.100.4.X.Y.Z

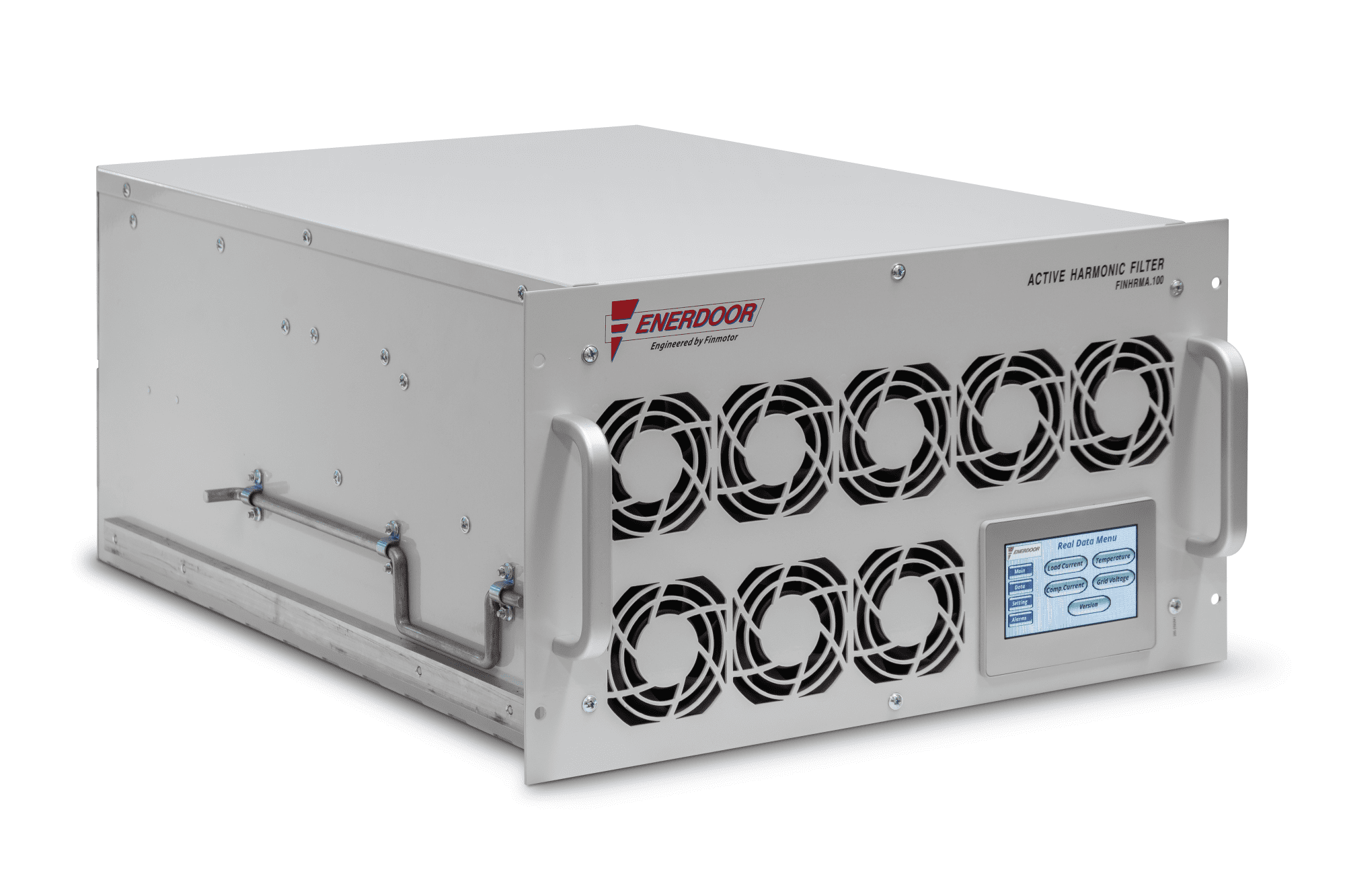

FINHRMAD.100.4.X.Y.Z Active Harmonic Filter

The FINHRMAD.100.4.X.Y.Z active harmonic filter is rated 100A and features advanced digital control, touch screen LCD HMI, a modular system and a remote control RS485 standard.

  • Advanced digital control
  • Rack unit or wall mounting installation options
  • Modular system
  • Remote control RS485 standard (Modbus-Profibus optional)
  • Complete protection for overvoltage, under voltage, over current and over heating
  • Unaffected by network conditions

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The FINHRMD series offers complete protection for overvoltage, under voltage, over current and over heating. It provides compensation for inductive and capacitive reactive power and remains unaffected by network conditions.

This filter works in parallel and compensates current for single or multiple load applications operating under varied loads. Used for single applications or an entire facility.

Approvals
RoHS Compliant, CE Marked

Typical Applications

  • Variable frequency drives
  • Commerical buildings
  • Oil and water plant
  • Process automation
  • End-user plant

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS Compliant

Manufacturer

Applications

, , , ,

Compliance

CE Marked, RoHS Compliant

Rated Current (A)

100A

Rated Voltage (Vac)

400 Vac

Frequency

-5/+3%, 50 – 60 Hz

Overall Efficiency

>97%

Reaction Time

<50us

Overall Response Time

<5ms

Switching Frequency

20KHz

Operating Temperature

-10°C to +40°C

Protection Class

IP 20

Noise Level

<56 dB

The Enerdoor Group is the industry’s international leader in the development and production of Electromagnetic Solutions for automated and industrial machinery.  Enerdoor provides a wide array of solutions for protection of machinery and equipment, CE approval and testing and elimination of noise, improved reliability and reduced downtime. The Enerdoor Group consists of: Eichhoff Elektro, FinMotor and FinLab which all sit under the parent company.

Renowned for it’s high quality and innovative solutions, Enerdoor manufactures an extensive range of EMI filters, RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions from their Head Offices in North America and Europe.

Enerdoor supply single phase, three phase and surge protection filters designed to reduce conducted electrical interference in control cabinets. Enerdoor has EMC laboratories in the United States, Germany and Switzerland.

Eichhoff’s manufacturing plant is based in Hungary and strongly focuses on product development and EMC measurement. Eichhoff Elektro has over 40 years experience in safety transformers and electronic ignition systems. They manufacture a wide range of: RFI Filters, Sinus Filters, Reactors, Transformers, PCB Transformers and Ignition Systems.

FinMotor’s manufacturing plant and EMC laboratory is based in Italy. FinMotor manufactures Enerdoor’s EMC Filters, High Frequency inductance and Harmonic Filters for the medical and military markets. They manufacture a wide range of RFI Filters, Passive Harmonic Filters, High Current Sinus Filters, High Frequency Impedances, Motor Protection and Snubbers.

FinLab’s laboratory is based in Milan and focuses on EMC measurement (certification, analysis, solutions and training), harmonic measurement (analysis, solutions and training), acoustic measurement, technical construction file and vibration measurements carried out in their anechoic room and mobile laboratories.

Enerdoor

Enerdoor is part of The Enerdoor Group which consists of Enerdoor in North America and Europe; Finmotor and Finlab in Italy; and Eichhoff Elektro in Hungary.

The group is an international leader in the development and production of electromagnetic solutions for automated and industrial machinery.

The broad range of products include: EMI/RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions.
