FINHRM5C.380.B-XX

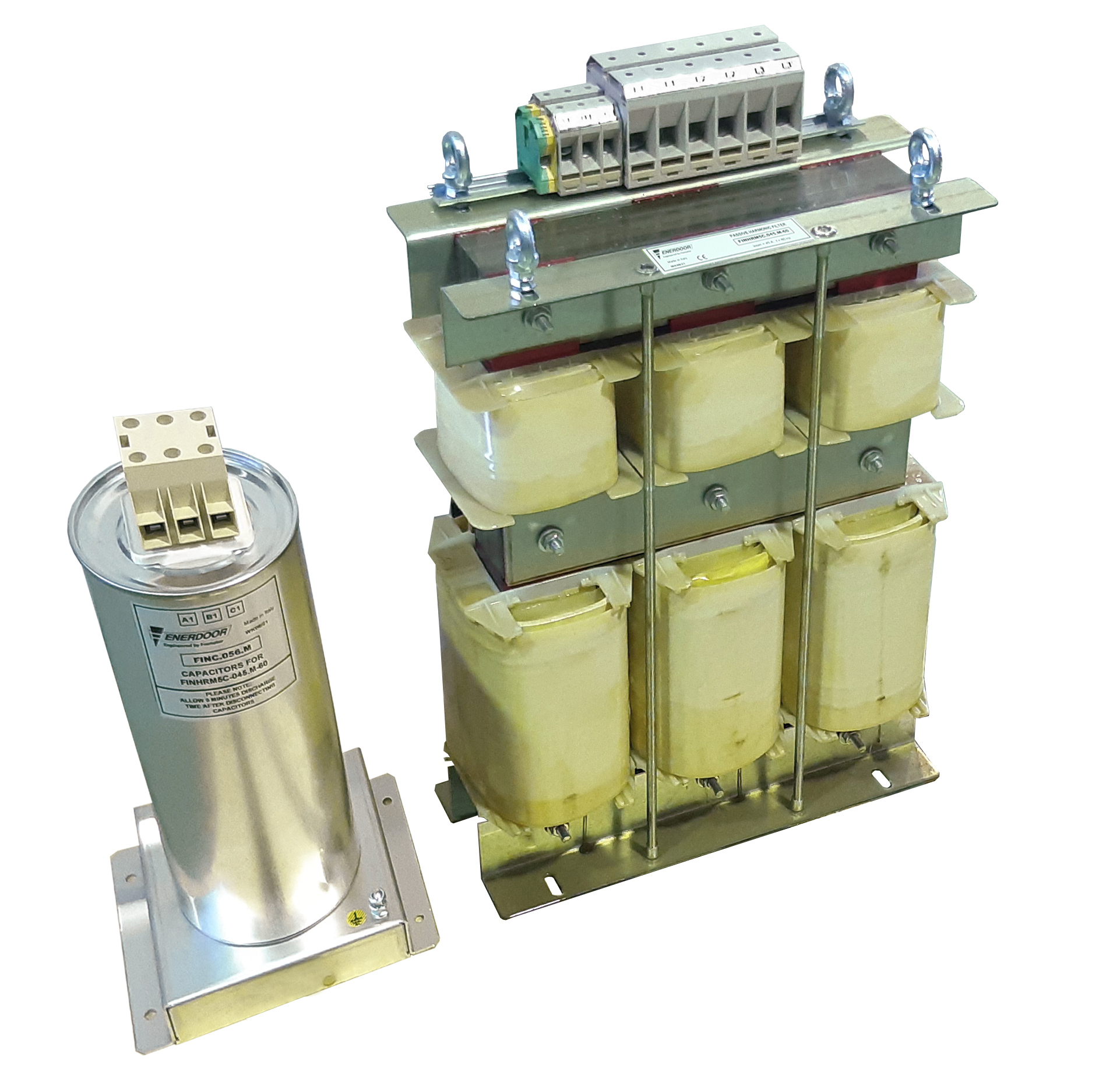

FINHRM5C.380.B-XX Passive Harmonic Filter

The FINHRM5C.380.B-XX passive harmonic filter is rated 380A, reduces current THD <5% with an unbalanced voltage of 2.5%. The FINHRM5C series offers a slow power loss and operating temperature, improves flicker and power factor and is UL recognised.

  • Reduces current THD <5% with an unbalanced voltage of 2.5%
  • Improves flicker and power factor <5%
  • Very compact case, open frame or enclosed
  • Low power loss and operating temperature
  • Breakers and finger safe protection available
  • Ensures IEEE519 and EN61000-3-12 Compliance
  • Remote power quality monitor available

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

This series is recommended for single drive applications and sized by the total current. Available up to 1400A with nominal voltage up to 750Vac.

Harmonic filters reduce and mitigate harmonics to a tolerable amount, helping to lower harmonic distortion levels to meet IEEE-519 compliance. A popular choice for controlling the flow of harmonic currents, passive harmonic filters prevent excessive damage to components and reduce production downtime.

Approvals
RoHS Compliant, CE Marked, UL Recognised

Typical Applications

  • Variable frequency drives and servo drives
  • Processing and industrial automation
  • HVAC systems
  • Oil & Gas
  • Water and wastewater
  • End user facilities

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantUL RecognisedcaRUus

Manufacturer

Applications

, , , , ,

Compliance

caRUus, CE Marked, RoHS Compliant

Voltage (Vac)

480 Vac

Rated Current 50°C

380A

Rated Power (KW) 400Vac

184KW

Rated Power (KW) 480Vac

221KW

Power Loss (W) 400Vac

690W

Power Loss (W) 480Vac

828W

Potential Test Voltage Phase to Phase

2400 Vdc (2 sec.)

Potential Test Voltage Phase to Ground

3200 Vdc (2 sec)

IP Protection

IP20 up to 210A IP00 over 210A

Climatic Class

-40°C to +85° C

MTBF at 40°C

250 Hrs

The Enerdoor Group is the industry’s international leader in the development and production of Electromagnetic Solutions for automated and industrial machinery.  Enerdoor provides a wide array of solutions for protection of machinery and equipment, CE approval and testing and elimination of noise, improved reliability and reduced downtime. The Enerdoor Group consists of: Eichhoff Elektro, FinMotor and FinLab which all sit under the parent company.

Renowned for it’s high quality and innovative solutions, Enerdoor manufactures an extensive range of EMI filters, RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions from their Head Offices in North America and Europe.

Enerdoor supply single phase, three phase and surge protection filters designed to reduce conducted electrical interference in control cabinets. Enerdoor has EMC laboratories in the United States, Germany and Switzerland.

Eichhoff’s manufacturing plant is based in Hungary and strongly focuses on product development and EMC measurement. Eichhoff Elektro has over 40 years experience in safety transformers and electronic ignition systems. They manufacture a wide range of: RFI Filters, Sinus Filters, Reactors, Transformers, PCB Transformers and Ignition Systems.

FinMotor’s manufacturing plant and EMC laboratory is based in Italy. FinMotor manufactures Enerdoor’s EMC Filters, High Frequency inductance and Harmonic Filters for the medical and military markets. They manufacture a wide range of RFI Filters, Passive Harmonic Filters, High Current Sinus Filters, High Frequency Impedances, Motor Protection and Snubbers.

FinLab’s laboratory is based in Milan and focuses on EMC measurement (certification, analysis, solutions and training), harmonic measurement (analysis, solutions and training), acoustic measurement, technical construction file and vibration measurements carried out in their anechoic room and mobile laboratories.

Enerdoor

Enerdoor is part of The Enerdoor Group which consists of Enerdoor in North America and Europe; Finmotor and Finlab in Italy; and Eichhoff Elektro in Hungary.

The group is an international leader in the development and production of electromagnetic solutions for automated and industrial machinery.

The broad range of products include: EMI/RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions.

Learn more about Enerdoor products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

finhrm5c_datasheet_0321en.pdf

Product Catalogues

Product Catalogues

Enerdoor Product Catalogue

Product Catalogues

Enerdoor Voltage Stabilisers Catalogue

Product Catalogues

Enerdoor Overview Catalogue

Product Catalogues

Enerdoor Surge Arresters Catalogue

Product Catalogues

Enerdoor EMI Filters Catalogue

Product Catalogues

Enerdoor DC Filters Catalogue

Product Catalogues

Enerdoor Motor Protection Catalogue

Product Catalogues

Enerdoor Harmonic Filters Catalogue

Product Catalogues

Enerdoor Parallel Filter Catalogue

White Papers

White Papers

Enerdoor EMI Filters White Paper

White Papers

Enerdoor Power Factor Correction White Paper

White Papers

Enerdoor Passive Harmonic Filter White Paper

White Papers

Enerdoor CE Certification White Paper

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

FINHRM5C.470.B-60 Passive Harmonic Filter

FINHRM5C.470.B-60 Passive Harmonic Filter

  • Download Datasheet
  • Parts List
  • Compare

FINHRM5C.650.B-50 Passive Harmonic Filter

FINHRM5C.650.B-50 Passive Harmonic Filter

  • Download Datasheet
  • Parts List
  • Compare

FINHRM5C.650.B-60 Passive Harmonic Filter

FINHRM5C.650.B-60 Passive Harmonic Filter

  • Download Datasheet
  • Parts List
  • Compare

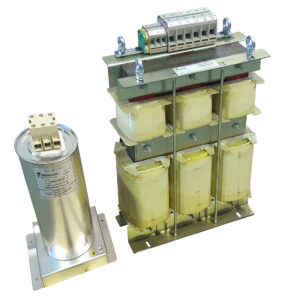

FINHRM5C.470.B-50 Passive Harmonic Filter
