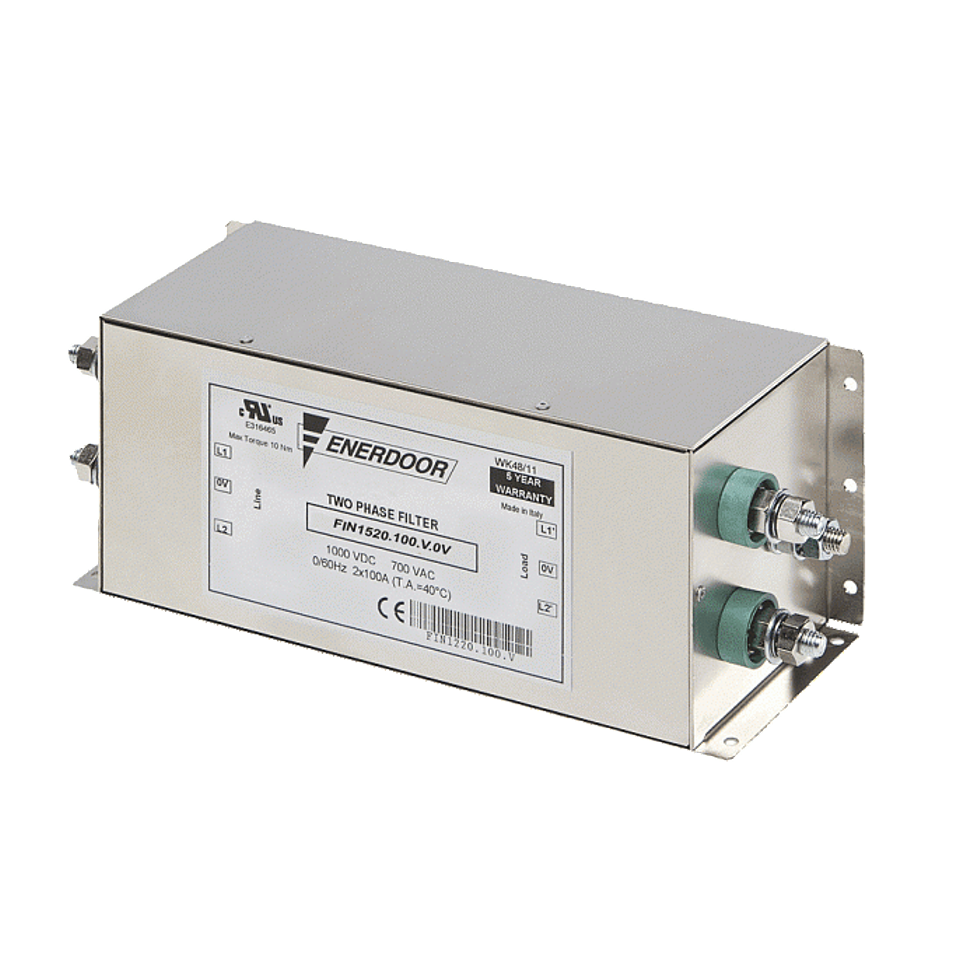

Images are for reference only, see product specifications for full details
The FIN1520.180.V.0V DC EMI filter offers excellent common mode attenuation and low leakage current. The FIN1520.0V DC EMI filters are available with various connections.
- Rated current 180A
- Excellent common mode attenuation
- Zero volt connector for PE floating systems
- Low leakage current
- 5 Year warranty
- Various connections available
Expert technical support
Design Inspiration, whenever you need it
Custom & flexible ordering
DC EMI filters are designed specifically for the solar industry and recharging stations. DC EMI filters allow DC and low-frequency currents to pass through while blocking harmful high-frequency currents. This allows electronic devices to work correctly by diverting unnecessary noise.
RoHS Compliant, CE Marked, UL1283, caRUus, SCCR by UL508A
- Renewable energy
- AC/DC converters
- Single phase machines up to 700Vac
Refer to manufacturer’s datasheet for full technical information.
caRUus, CE Marked, RoHS Compliant, SCCR by UL508A, UL1283
50 – 60Hz
|Rated Current at 40°C
|Rated Current at 50°C
|Power Loss (W)
|Potential Test Voltage Phase to Phase
3100 Vdc (2 sec.)
|Potential Test Voltage Phase to Ground
3400 Vdc (2 sec.)
|Leakage Current (Normal Conditions)
|Leakage Current (Worst Conditions)
IP20 up to 280A IP00 over 280A IP20 available with protection FINPRT
4 x Rated current (Switch ON) 2 x In 10 seconds 1.5 In for 10 minutes
|MTBF at 40°C
The Enerdoor Group is the industry’s international leader in the development and production of Electromagnetic Solutions for automated and industrial machinery. Enerdoor provides a wide array of solutions for protection of machinery and equipment, CE approval and testing and elimination of noise, improved reliability and reduced downtime. The Enerdoor Group consists of: Eichhoff Elektro, FinMotor and FinLab which all sit under the parent company.
Renowned for it’s high quality and innovative solutions, Enerdoor manufactures an extensive range of EMI filters, RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions from their Head Offices in North America and Europe.
Enerdoor supply single phase, three phase and surge protection filters designed to reduce conducted electrical interference in control cabinets. Enerdoor has EMC laboratories in the United States, Germany and Switzerland.
Eichhoff’s manufacturing plant is based in Hungary and strongly focuses on product development and EMC measurement. Eichhoff Elektro has over 40 years experience in safety transformers and electronic ignition systems. They manufacture a wide range of: RFI Filters, Sinus Filters, Reactors, Transformers, PCB Transformers and Ignition Systems.
FinMotor’s manufacturing plant and EMC laboratory is based in Italy. FinMotor manufactures Enerdoor’s EMC Filters, High Frequency inductance and Harmonic Filters for the medical and military markets. They manufacture a wide range of RFI Filters, Passive Harmonic Filters, High Current Sinus Filters, High Frequency Impedances, Motor Protection and Snubbers.
FinLab’s laboratory is based in Milan and focuses on EMC measurement (certification, analysis, solutions and training), harmonic measurement (analysis, solutions and training), acoustic measurement, technical construction file and vibration measurements carried out in their anechoic room and mobile laboratories.
Enerdoor is part of The Enerdoor Group which consists of Enerdoor in North America and Europe; Finmotor and Finlab in Italy; and Eichhoff Elektro in Hungary.
The group is an international leader in the development and production of electromagnetic solutions for automated and industrial machinery.
The broad range of products include: EMI/RFI filters, motor protection, harmonic filters, line reactors, surge arresters, voltage stabilisers and customised solutions.
