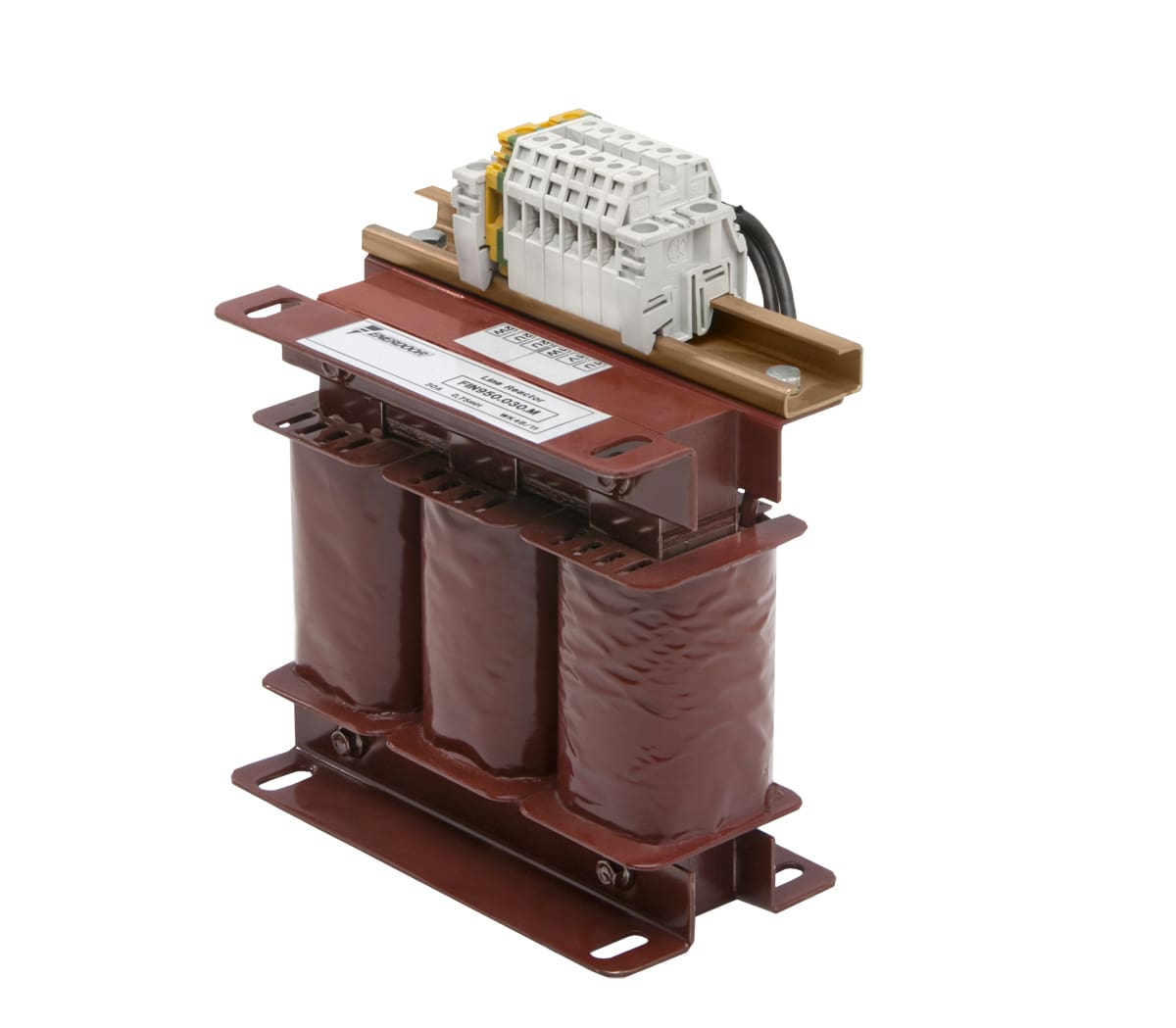

FF02P2104P81293 FINFF 3% Line Reactor 230 Vac

The FF02P2104P81293 is a FINFF 3% impedance, 230Vac line reactor and features high attenuation of current distortion and overvoltage spikes.

  • Rated current 4.6A
  • High differential mode attenuation
  • Terminal blocks up to 130A
  • Various connections available
  • Finger safe protection available

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Line reactors are used to protect motors and reduce power line distortion from variable frequency drives. Line reactors are used in a number of applications to extend the life of variable frequency drives and motors. The 3% impedance reactors are typically used for the line side of a drive while the 5% impedance reactors are generally used on the load side of the drive.

RoHS Compliant, CE Marked, UL1283, caRUus

Typical Applications

  • Wind power
  • Automation
  • Variable frequency drives/servo drives
  • Automated machinery
  • Industrial automation
  • Pumps

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantcaRUusUL1283



, , ,


caRUus, CE Marked, RoHS Compliant, UL1283

Voltage (Vac)


HP @ 230Vac


Rated Current 40°C


Potential Test Voltage Phase to Phase

2400 Vdc (2 sec.)

Potential Test Voltage Phase to Ground

3200 Vdc (2 sec)

Saturation Current

1.5 x In

Dielectric Strength


IP Protection

IP20 up to 180A IP00 over 180A

Climatic Class

-40°C to +85° C

MTBF at 40°C

250 Hrs
