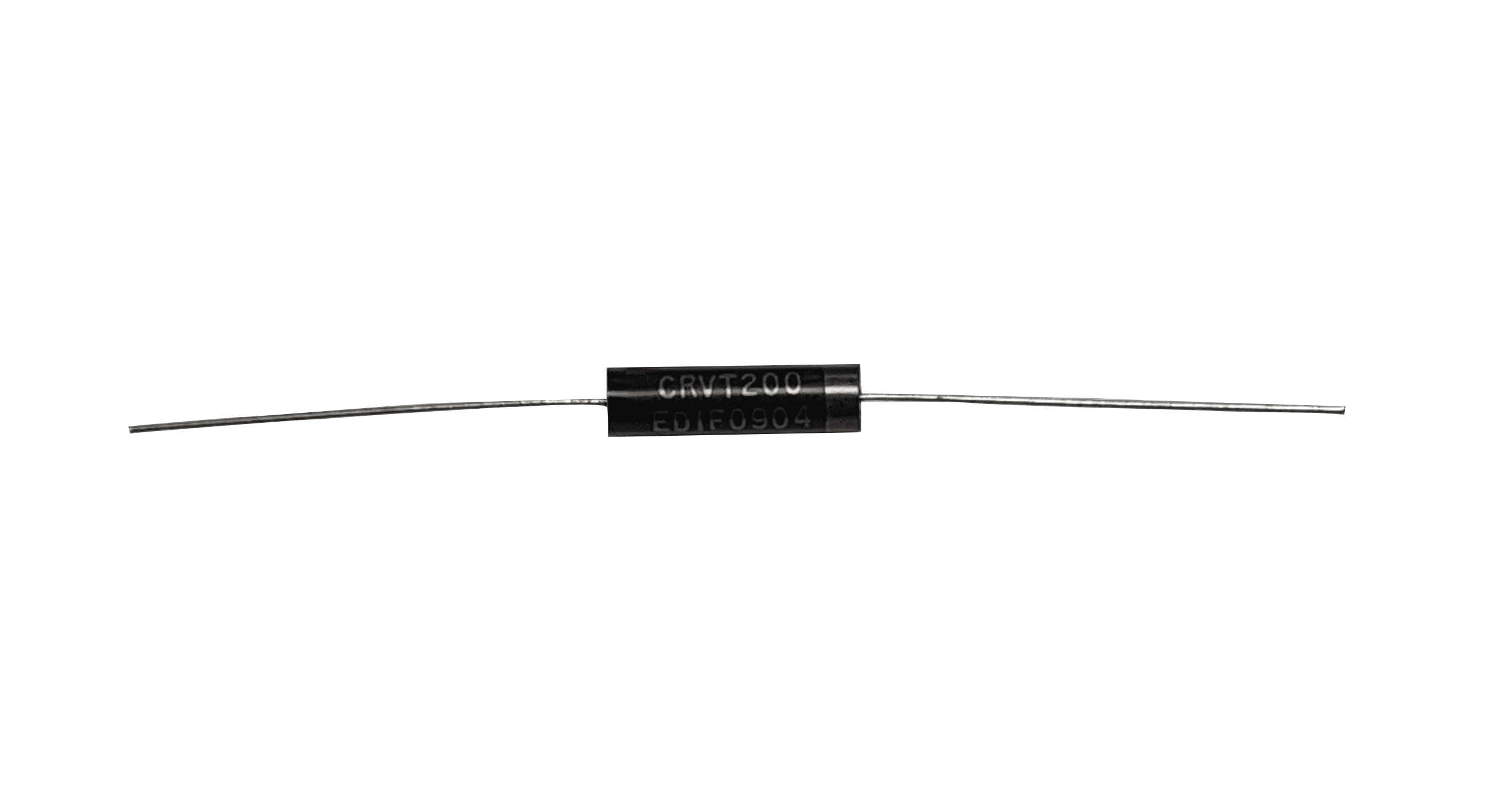

Images are for reference only, see product specifications for full details
Product Details
Electronic Devices Inc. offers an extensive selection of bridges, low and high voltage rectifiers, high voltage fast recovery diodes, and high voltage assemblies that are available in a wide range of voltage and current ratings, recovery times, case configurations, and terminations. Each is designed with special characteristics to match specific applications.
Approvals
RoHS Compliant
Typical Applications
- Power regulators
- Motor control
- High power applications
- High voltage applications
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | High Power, High voltage, Motor Control, Power Management, Power Regulators |
| Peak Reverse Voltage (PRV) | 20000V |
| Maximum Forward Voltage Drop (VF) | 35V |
| Maximum Peak Surge Current (IFSM) | 3A |
| Average Rectified Forward Current (IO) | 25mA |
| Operating Junction Temperature (TJ) | -55°C to +125°C |
| Maximum DC Reverse Current (VR) at 25°C | 1uA |
| Maximum DC Reverse Current (VR) at 100°C | 25uA |
| Reverse Recovery Time (trr) | 100ns |
| Recovery Time (ns) | Standard |
| Package/Case | Axial |
| Product Type | High voltage diode |
Electronic Devices Inc. is a leading manufacturer of specialised silicon rectifiers, standard and special high voltage assemblies, rectifier bridges, surface mount devices and diode arrays. The EDI product range is available in a wide range of voltage and current ratings, recovery times, case configurations, and terminations.
Rectifiers are available in single-phase and three-phase configurations and in standard, fast recovery and ultra-fast recovery. The night vision diodes and arrays feature ultra-low leakage, sub-miniature high voltage diodes and diode arrays.
- Bridge rectifiers: 1 ampere through 120 amperes, 50 volts through 1200 volts, single-phase and three-phase configurations.
- Axial lead rectifiers: 5 milliamperes through 6 amperes, 50 volts through 30,000 volts, in standard, fast recovery and ultra-fast recovery.
- Night vision diodes and arrays: Ultra-low leakage, sub-miniature high voltage diodes and diode arrays.
- Assemblies: Catalog and custom designed rectifier assemblies covering a broad spectrum of voltages (up to 250,000 volts), currents (up to 25 amperes), and package styles.
- Surface mount devices: Rectifiers, bridge rectifiers, UHF diodes, Zener diodes, Schottky diodes, switching diodes, transistors and junctions fets.
Electronic Devices Inc. (EDI)
Electronic Devices Inc. offers an extensive selection of bridges, low and high voltage rectifiers, high voltage fast recovery diodes, and high voltage assemblies that are available in a wide range of voltage and current ratings, recovery times, case configurations, and terminations.
Learn more about EDI products by getting in touch with GD Rectifiers.
Datasheet
EDI_CRVT_Datasheet.pdf
