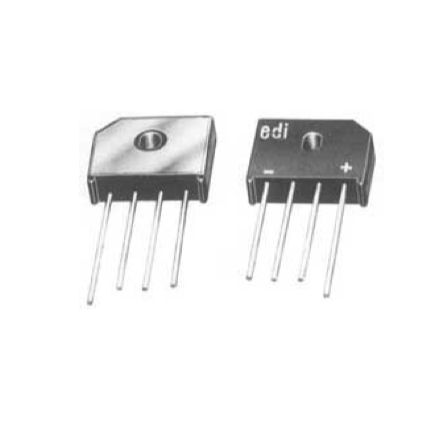

10PH80 Single Phase Full Wave Bridge 800V, 10A
The 10PH80 single phase full wave bridge features a current rating of 10A and a voltage rating of 800V. The 10PH series offers a voltage rating from 50-1000V.
- Maximum peak surge current 300A
- Average thermal resistance 4.5°C/W
- Space saving in-line design
- Integrally molded heatsink provides low thermal resistance
- UL Recognised
Currently Out of Stock
Get notified when this item is back in stock or contact us for alternatives
Offering EDI bridge rectifiers: 1 ampere through 120 amperes, 50 volts through 1200 volts in single-phase and three-phase configurations.
A bridge rectifier is a full-wave rectifier that uses four or more diodes in a bridge circuit configuration to convert alternating (AC) current to a direct (DC) current. Bridge rectifiers provide full-wave rectification from a two-wire AC input and offer weight and cost savings compared to a rectifier with a three-wire input.
Approvals
UL Recognised
Typical Applications
- PCB and heatsink mounting
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field Supply for DC motors
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Battery DC Power Supplies, Field supply for DC motors, Input rectifiers for PWM inverter, PCB and heatsink mounting, Supplies for DC Power Equipment |
| Average Output Current (A) | 10A |
| PRV (Volts) | 800V |
| Recovery (ns) | Standard |
| Surge Current (A) | 300A |
| Series | 10PH Series |
Electronic Devices Inc. is a leading manufacturer of specialised silicon rectifiers, standard and special high voltage assemblies, rectifier bridges, surface mount devices and diode arrays. The EDI product range is available in a wide range of voltage and current ratings, recovery times, case configurations, and terminations.
Rectifiers are available in single-phase and three-phase configurations and in standard, fast recovery and ultra-fast recovery. The night vision diodes and arrays feature ultra-low leakage, sub-miniature high voltage diodes and diode arrays.
- Bridge rectifiers: 1 ampere through 120 amperes, 50 volts through 1200 volts, single-phase and three-phase configurations.
- Axial lead rectifiers: 5 milliamperes through 6 amperes, 50 volts through 30,000 volts, in standard, fast recovery and ultra-fast recovery.
- Night vision diodes and arrays: Ultra-low leakage, sub-miniature high voltage diodes and diode arrays.
- Assemblies: Catalog and custom designed rectifier assemblies covering a broad spectrum of voltages (up to 250,000 volts), currents (up to 25 amperes), and package styles.
- Surface mount devices: Rectifiers, bridge rectifiers, UHF diodes, Zener diodes, Schottky diodes, switching diodes, transistors and junctions fets.
Electronic Devices Inc. (EDI)
Electronic Devices Inc. offers an extensive selection of bridges, low and high voltage rectifiers, high voltage fast recovery diodes, and high voltage assemblies that are available in a wide range of voltage and current ratings, recovery times, case configurations, and terminations.
Learn more about EDI products by getting in touch with GD Rectifiers.
Datasheet
10PH.PDF
