500MMTI HT In stock

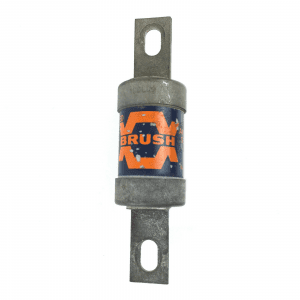

500MMTI High Speed British Standard Fuse 690V, 500A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

The 500MMTI is a high speed British standard fuse fitted with an indicator, designed and tested to BS88-4 and IEC 60269-4. It features excellent cycling capability and suited to power converters, rectifiers and reduced voltage starters.

  • Excellent cycling capability and DC performance
  • Low arc voltage and low energy let-through (I2t)
  • Low watts loss
  • Ideal for DC drives
  • Designed and tested to BS88 part 4
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Certifications & Approvals
RoHS Compliant, UL Recognised, IEC Rated, CE Marked

Typical Applications

  • DC common bus
  • DC drives
  • Power converters/rectifiers
  • Reduced voltage starters

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantUL RecognisedIEC Rated

Manufacturer

Applications

, , ,

Compliance

CE Marked, RoHS Compliant

Certifications

IEC Rated, UL Recognised

Standards

BS88-4 IEC 60269-4

Rated Current (A)

500A

Rated Voltage (V)

690V

Rated Switching Capacity

200kA

Type of Fuse Status Indicator

None

Fuse Category

aR (accompanied semiconductor protection)

Voltage Type

AC/DC

Breaking Capacity

200kA

Clearing (I2t)

300000 A2s

Product Type

British Standard Fuse, High Speed Fuse

Fuse Size/Group

BS88

Insulated metal gripping lugs (IMGL)

No

Fuse Shape

Center dual barrel bolted tags

Connection

Blade end x blade end

Mounting Method

Stud

Mounting Dimension

Other

Packaging Type

Standard
