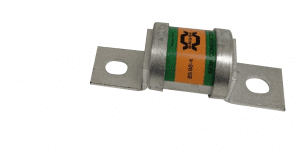

200FM HT (BRUSH) In stock

200FM High Speed British Standard Fuse 690V, 200A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

The 200FM is a high speed British standard fuse designed and tested to BS88-4 and IEC 60269-4. This fuse has the indicator fixed in and features excellent cycling capability and suited to power converters, rectifiers and reduced voltage starters.

  • Excellent cycling capability and DC performance
  • Low arc voltage and low energy let-through (I2t)
  • Low watts loss
  • Ideal for DC drives
  • Designed and tested to BS88 part 4
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The offset bolted tag design is compatible with many industrial distribution panels and fuse holders and provides a secure terminal connection. The FM Series HRC Fuses with bolted connections are for use in industrial and commercial installations and may be fitted in fuse units or fuse gear, two hole fitting. The fuse links comply with revised Standard BS88 and IEC 60269 Standards.

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Certifications & Approvals
RoHS Compliant, UL Recognised, IEC Rated, CE Marked

Typical Applications

  • DC common bus
  • DC drives
  • Power converters/rectifiers
  • Reduced voltage starters

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantUL RecognisedIEC Rated

Manufacturer

Applications

, , ,

Compliance

CE Marked, RoHS Compliant

Certifications

IEC Rated, UL Recognised

Standards

BS88-4 IEC 60269-4

Rated Current (A)

200A

Rated Voltage (V)

690V

Rated Switching Capacity

200kA

Type of Fuse Status Indicator

None

Voltage Type

AC/DC

Breaking Capacity

200kA

Clearing (I2t)

10500 A2s

Product Type

British Standard Fuse, High Speed Fuse

Fuse Size/Group

BS88

Insulated metal gripping lugs (IMGL)

No

Fuse Shape

Offset bolted tags

Connection

Blade end x blade end

Mounting Method

Stud

Mounting Dimension

Other

Packaging Type

Standard

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

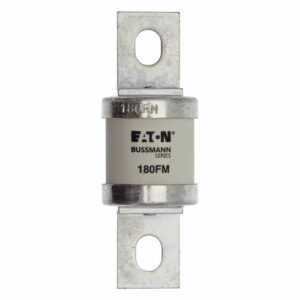

180FM High Speed British Standard Fuse 690V, 180A

180FM High Speed British Standard Fuse 690V, 180A

  • Download Datasheet
  • Parts List
  • Compare

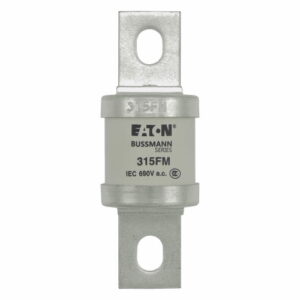

315FM High Speed British Standard Fuse 690V, 315A

315FM High Speed British Standard Fuse 690V, 315A

  • Download Datasheet
  • Parts List
  • Compare

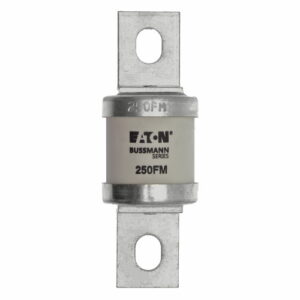

250FM High Speed British Standard Fuse 690V, 250A

250FM High Speed British Standard Fuse 690V, 250A

  • Download Datasheet
  • Parts List
  • Compare

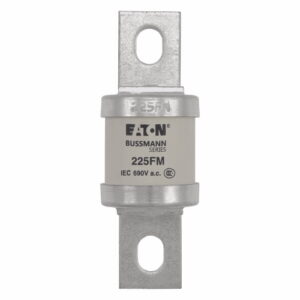

225FM High Speed British Standard Fuse 690V, 225A
