970302

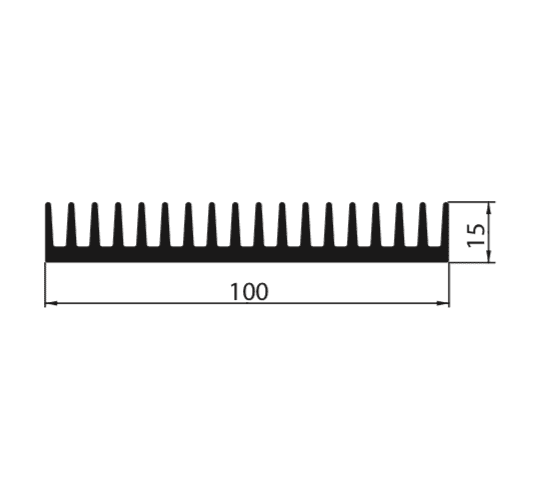

970302 Multipurpose Heatsink

The 970302 is a multipurpose heatsink profile designed for a wide range of applications. We stock and machine the UK’s largest range of heatsinks suitable for stud, modules and capsule semiconductors, alongside high power LED applications.

  • Profile dimensions – 15mm x 100mm
  • Suitable for multiple devices
  • Extrusion in stock
  • Cut to any length
  • Machined to order
  • Optional finishes

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

As one of the UK’s leading heatsink suppliers, we stock and machine a wide range of extruded aluminium heatsinks and offer custom designs to cater to customers drawings. We have been supplying heatsinks to customers for many years in the rail, LED lighting, solar, industrial, automotive and marine industries.

Profile Dimensions
15mm x 100mm

Compliance
ISO 9001:2015, RoHS Compliant

Typical Applications

  • Rail
  • LED Lighting
  • Solar
  • Electrical & Industrial equipment
  • Automotive
  • Marine

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , , , ,

Height (mm)

15mm

Width (mm)

100mm

Compliance

RoHS Compliant

Heatsink Drawing

GD Rectifiers 970302 Heatsink Drawing.pdf

With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.

The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.

The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.

GD Rectifiers

GD Rectifiers design and manufacture selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

We are one of the UK’s leading distributors of power electronic components and hold extensive stock of diodes, thyristors, IGBTs and MOSFETs from the world’s leading semiconductor manufacturers.

Learn more about our products by getting in touch with us.
