EMC Radio Interference Suppression Capacitors
Radio interference capacitors act as a noise barrier to reduce engine noise in the cabin of vehicles. Eichhoff Kondensatoren offers standard and two-pole radio interference suppression capacitors.
EMC Radio Interference Suppression Capacitors
Reliable capacitors designed by Eichhoff Kodensatoren

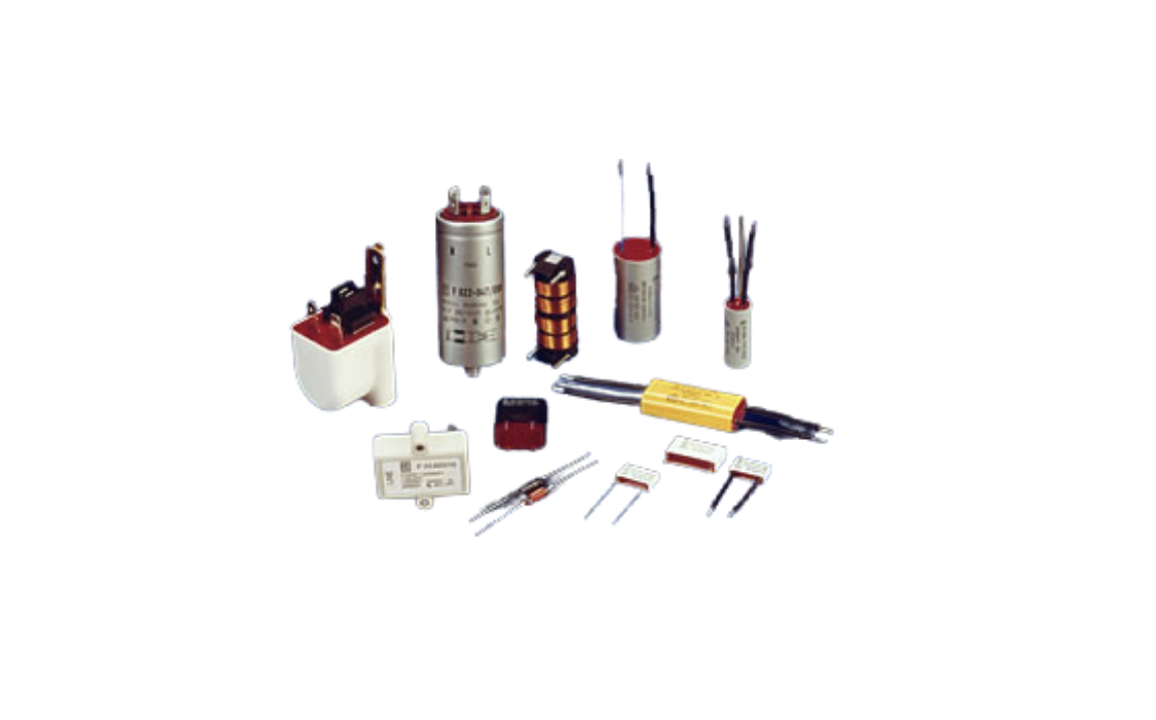

Eichhoff’s EMC suppression capacitors are reliable, high-quality devices used in electrical and electronic systems alongside customer-specific applications.
- X1 Capacitors / Paper, MP, MKT
- X2 Capacitors / Paper, MP, MKT
- Y2 Capacitors / Paper, MP, MKT
- X1Y2 Capacitors/ Paper
- X2Y2 Capacitors/ Paper / MKT
- DC capacitors
- 3-phase capacitors / X1, X2
Eichhoff Kondensatoren has more than six decades of experience in radio interference suppression and specialises in the design and manufacture of EMC radio interference suppression filters, EMC RFI capacitors, radio interference suppression chokes and RC combinations.
MKT Series Class X2 and Y2 AC Capacitors
Technical Characteristics
| Complies with: | DIN EN 60384-14 |
| Dielectric: | Polyester film |
| Armature: | Vapor-deposited aluminium |
| Encapsulation: | Flame-retardent plastic case and epoxy resin according to UL 94 V-0 |
| Connections: | Tinned copper wire
Copper wire with insulation H05V-U or AWG with a choice of quick connect terminals |
| Rated Voltage: | X2: AC 275V, 50/60Hz, Y2: AC 250V, 50/60Hz |
| Climatic category | 25/100/21 C (IEC 60068-1) |
| Letter indicating passive flammability category: | C DIN EN 60384-14/2 |
| Capacitance tolerances | ≤ 0.1µF = 20%
> 0.1µF = 10% |
| Dissipating factor tan (at room temp. +20°C) | <1.0% measured at 1kHz |
| Insulation resistance (at room temp. +20°C)
for C> 0.33µF: |
30,000 MΩ mean value
15,000 MΩ min value |
| Time constant (at room temp. +20°C)
for C>0.33µF: |
10,000s (MΩ x µF mean value)
5,000s (MΩ x µF min value) |
| Test voltage | X:DC 1200V, 2s Y2: DC 2700V, 2s |
| Pulse loading | du/dt = 100V/µs anch DIN EN 60384-14 |
| Approvals | See individual datasheets |
| Insertion loss | Measured in 50Ω system (approx. values) |
Class X1 – Two-pole Radio Interference Suppression Capacitors
Technical Characteristics
| Rated Voltage: | 250V |
| Capacitance tolerance: | ± 20% |
| Climatic category: | 25/100/21 (IEC 60068-1) |
| Letter indicating passive flammability category: | C (IEC 60384-14/2) |
| Leads: | Stranded copper wire type H05V-K 0.5 |
| Connections: | AWG 20 |
| Approvals: | Vde, EN 60384-14, UL recognised |
For further information on Eichhoff Kondensatoren’s complete range please contact us on 01444 243 452 / enquiries@gdrectifiers.co.uk.
