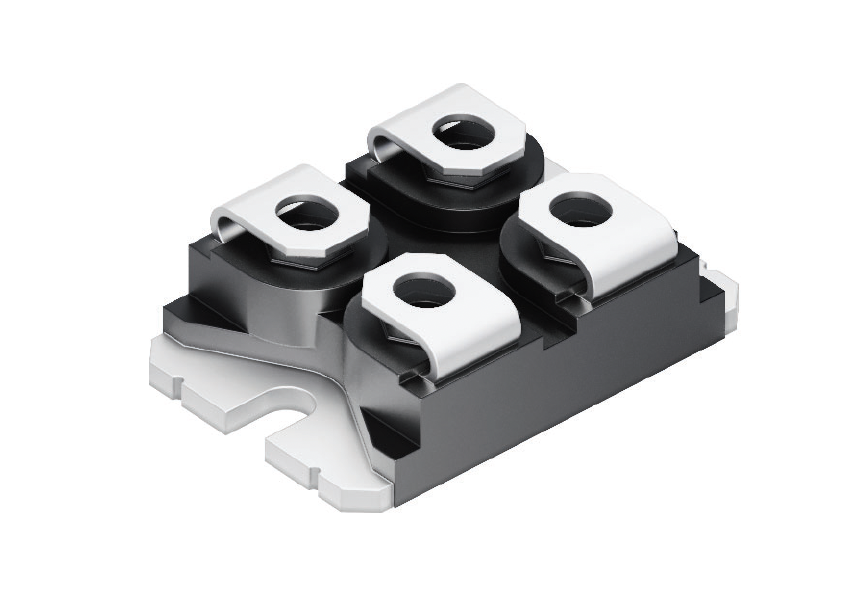

Images are for reference only, see product specifications for full details
DSS2X61-01A Schottky Diode 100V, 2x60A
The DSS2X61-01A schottky diode features extremely low switching losses, high reliability circuit operation and low voltage peaks for reduced protection circuits. This schottky low leakage series offers various packages with improved leakage currents and breakdown voltages up to 200V. This device is suitable for power management applications.
- Very low Vf
- Extremely low switching losses
- Low-noise switching
- Improved thermal behaviour
- High reliability circuit operation
Product Details
DSS2X61-01A features improved thermal behaviour and an isolation voltage of 3000V in the SOT-227B minibloc package type. It features an industry standard outline and Epoxy meets UL94V-0 specifications.
Approvals
RoHS Compliant
Typical Applications
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Free Wheeling Diodes, Rectifiers in Switch Mode Power Supplies (SMPS) |
| Maximum Repetitive Reverse Voltage (VRRM) | 100V |
| Configuration | Dual Isolated |
| Package/Case | SOT-227B |
| Forward Voltage Drop (VF) | 0.74V |
| Maximum Peak Surge Current (IFSM) | 700A |
| Threshold Voltage (VF0) | 0.49V |
| Operating Junction Temperature (TJ) | -55°C to +125°C |
| Reverse Current, Drain Current (IR) | 1mA |
| Mounting Style | Screw Mount |
| Slope Resistance (RF) | 3.5mΩ |
| Product Type | Diode, Schottky Diode |
| Compliance | epoxy meets UL 94V-0, RoHS Compliant |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
Learn more about IXYS products by getting in touch with GD Rectifiers.
Datasheet
DSS2x61-01A-Datasheet.pdf
Product Catalogues
IXYS IGBTs Product Catalogue
IXYS Product Catalogue 2022-2023
IXYS Selector Guide 2015
