PS190 heatsink
PS190 heatsink

Images are for reference only, see product specifications for full details

PS190 In stock

PS190 Small Isolated Device and LED Heatsink

The PS190 heatsink profile is designed specifically for small isolated devices and LED heatsinks. We stock and machine a large range of heatsinks suitable for stud, modules and capsule semiconductors, alongside high power LED applications.

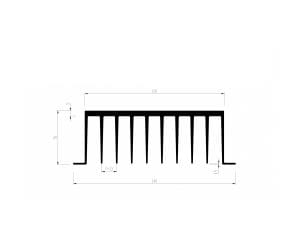

  • Profile dimensions – 50mm x 140mm
  • Suitable for small isolated devices and LED heatsinks
  • Extrusion in stock
  • Cut to any length
  • Machined to order
  • Optional finishes
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

As one of the UK’s leading heatsink suppliers, we stock and machine a wide range of extruded aluminium heatsinks and offer custom designs to cater to customers drawings. We have been supplying heatsinks to customers for many years in the rail, LED lighting, solar, industrial, automotive and marine industries.

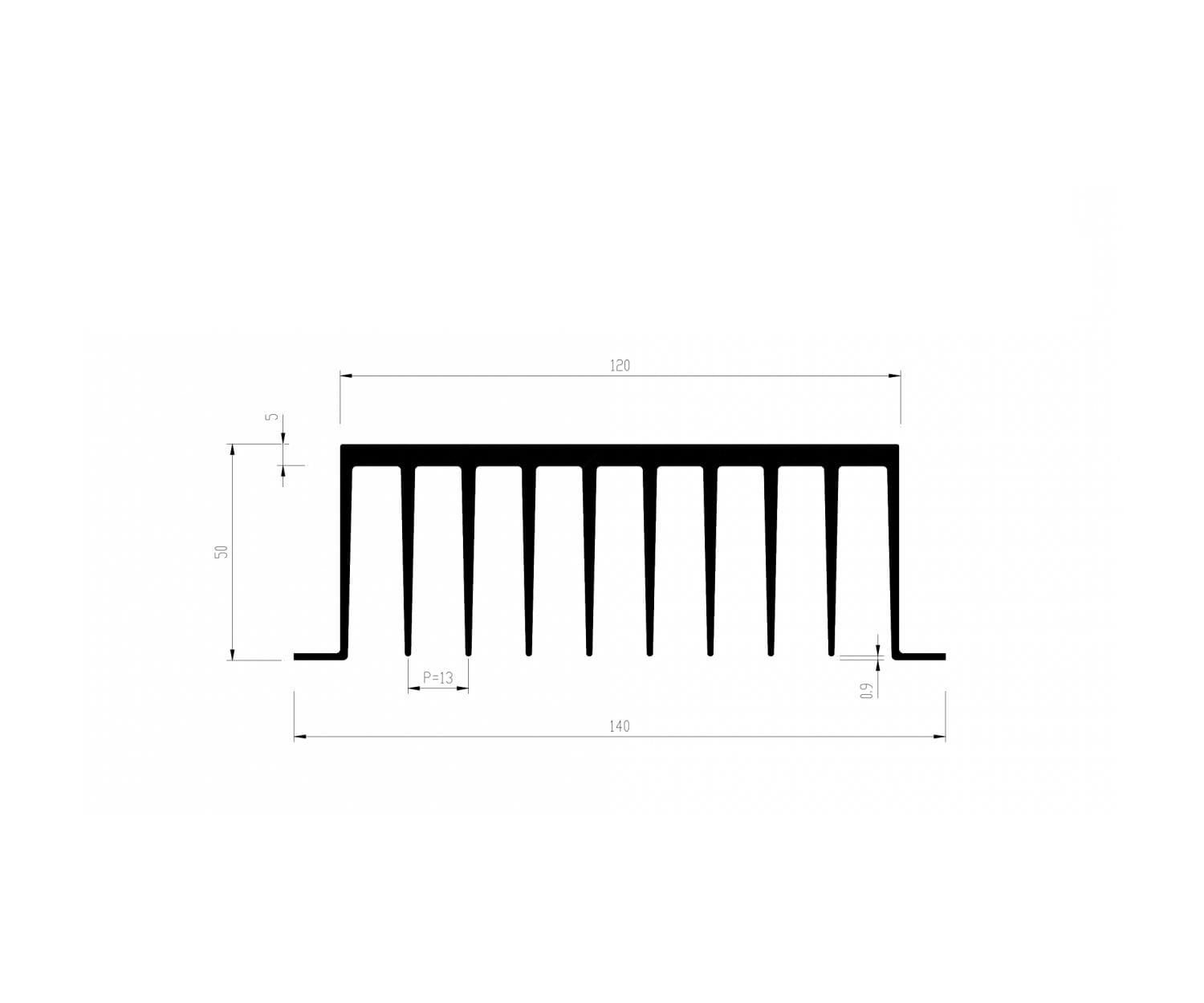

Profile Dimensions
50mm x 140mm

Thermal Data

Length C/W Bare C/W Ano
50 1.6 1.25
100 1.25 1
150 1 0.75
200 0.85 0.7
250 0.75 0.06
300 0.7 0.55



Comparison Guide
Browse the heatsink range by device type, part number or comparison guide. The comparison guide allows you to compare the various sizes of each device along with the thermal impedance.

PS190 Comparison Guide

Compliance
ISO 9001:2015, RoHS Compliant

Typical Applications

  • Rail
  • LED Lighting
  • Solar
  • Electrical & Industrial equipment
  • Automotive
  • Marine

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , , , ,

Height (mm)

50mm

Width (mm)

140mm

Compliance

RoHS Compliant
