Converters for Trams
KONČAR’s modernisation of tramcars includes integration of new main drive and auxiliary drive converters in the existing tramway vehicles. The result is a completely new and modernised vehicle characterised by high functionality and reliability with reduced maintenance costs.
Converters for Trams
High functionality and reliability with reduced maintenance costs
KONČAR design, manufacture and maintain electronic equipment for electric tramcars. KONČAR converters supply the main and auxiliary drives of trams.
They also offer the modernisation of the tramcars which includes integration of new main drive and auxiliary drive converters in the existing tramway vehicles. The result is a complete new and modernised vehicle which is characterised by high functionality and reliability with reduced maintenance costs.

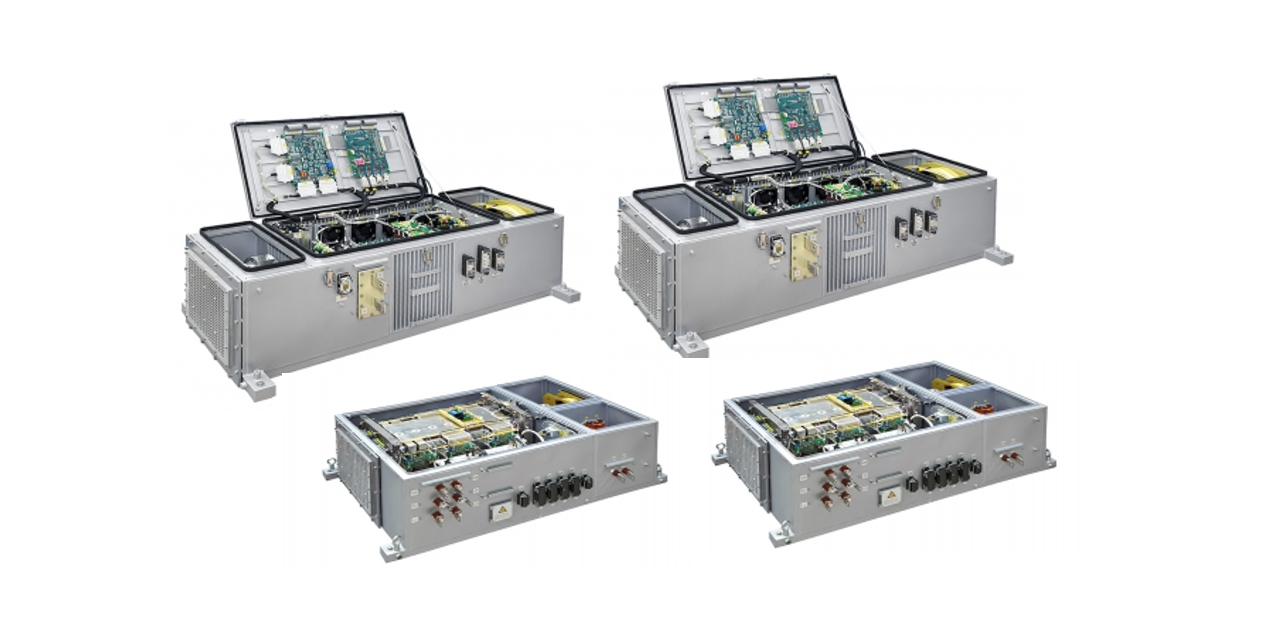

KONČAR’s range of converters for trams includes: KONTRAC GP170DC, KONTRAC PN35DC and KONTRAC PN25DC.
Propulsion Converter for Trams – KONTRAC GP170DC
KONTRAC GP 170 DC converts 600VDC or 750VDC line voltage into propulsion power to control and drive asynchronous traction motors on tram vehicles. The converter supplies two asynchronous traction motors connected in parallel. The electrical motor drive operates in two modes: traction mode and braking mode.
Download KONTRAC GP170DC Datasheet
Technical Data
| Input voltage | 600 / 750VDC |
| Propulsion output | 170kW |
| Braking chopper | 470kW |
| Cooling | Forced air-cooling |
| Size | 1550 x 1010 x 520mm |
| Weight | 328kg |
| Mounting position | Roof |
| Connecting interface | CAN / MVB / Ethernet |
Auxiliary Converter for Trams – KONTRAC PN 35 DC
KONTRAC PN35DC converts 600VDC or 750VDC line voltage into three-phase AC voltage which is intended to supply air conditioning units in tramcars, single-phase AC voltage for service purposes and DC voltage intended for charging batteries and supplying of all DC consumers on board the tram.
Download KONTRAC PN35DC Datasheet
Features
- Input line voltage 600VDC or 750VDC
- Latest IGBT technology
- Galvanic insulation input/outputs
- High-frequency resonant converter
- Easy maintenance
- Light and compact design
- Roof mounting
- Extended ambient temperature range from -40°C to +40°C
Technical Data
| Input voltage | 600 / 750VDC |
| AC outputs | 3 x 400V, 50HZ, 25kVA
230v, 50hZ, 2,2kVA |
| DC output | 24VDC 12kW |
| Cooling | Forced air-cooling |
| Size | 1770 x 700 x 520 mm |
| Weight | 300kg |
| Mounting position | Roof |
| Connecting interface | CAN / MVB / Ethernet |
Auxiliary Converter for Trams – KONTRAC PN25DC
KONTRAC PN25DC is used as the auxiliary power supply converter in tram vehicles, it converts 600VDC or 750VDC line voltage in to three-phase AC voltage intended for supplying the tramcars air conditioning unit.
Download KONTRAC PN25DC Datasheet
Features
- Input line voltage 600VDC or 750VDC
- Latest IGBT technology
- Galvanic insulation input/output
- High frequency resonant converter
- Easy maintenance
- Light and compact design
- Modular design of power unit and control electronic
- Roof mounting
- Extended ambient temperature range from -40°C to +40°C
Technical Data
| input voltage | 600 / 750VDC |
| AC output | 3 x 400V, 50Hz, 30kVA |
| Cooling | Forced air-cooling |
| Size | 1560 x 605 x 520 mm |
| Weight | 246kg |
| Mounting position | Roof |
| Connecting interface | CAN / MVB / Ethernet |
For further information on KONČAR’s traction converters for trams please call us on 01444 243 452 or email: enquiries@gdrectifiers.co.uk.
