New IXYS Junction X4-Class 200V Discrete Power MOSFETs IXT400N20X4

Introducing IXYS’ latest addition to the 200V ultra junction X4-class power MOSFET IXTN400N20X4.

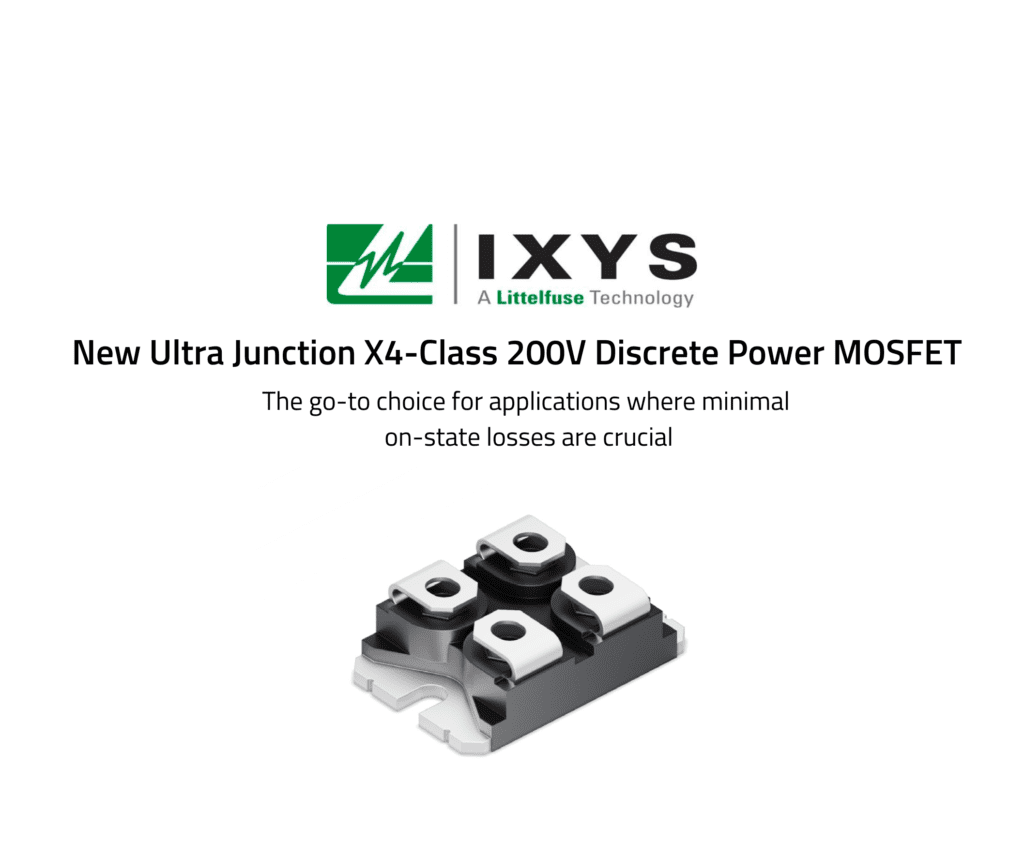

In today’s fast-paced world, power efficiency and reliability are more crucial than ever. Electronic designers face the challenge of creating high-performance, energy-efficient systems without sacrificing reliability. The latest IXTN400N20X4 is in the SOT-227B package and features a low on-state resistance and is the go-to choice for applications where minimal on-state losses are crucial. The high nominal current rating of 340A reduces the need for device paralleling and simplifies gate driver design. These advantages enable designers to achieve higher system efficiency and enhanced power density.

IXT400N20X4 Features

• On-state resistance: RDS(ON) = 3mW @Tvj=25°C
• High nominal current rating: 340A @Tc=25°C
• Low gate charge: Qg=348nC
• Low thermal impedance: RthJC=0.18K/W
• Aluminium-nitride ceramic-based isolated SOT-227B package

Benefits

• Low conduction losses
• Minimised parallel connection effort
• Simplified driver design, minimal driver losses
• Simplified thermal design
• Increased power density

Applications

• Battery energy storage systems (BESS)
• DC load switch
• Battery chargers
• Battery formation
• Power supplies

GD Rectifiers is an authorised distributor for IXYS, now acquired by Littelfuse. IXYS is a global supplier of power management semiconductors with a comprehensive range of diodes, thyristors, power MOSFETs and mixed signal ICs. GD Rectifiers has partnered with IXYS, a Littelfuse Technology for 28 years, providing customers with pioneering semiconductors to service the power electronics industry.

GD Rectifiers is your custom power specialist with access to a wide range of power electronic components from power semiconductors to passives, power supplies, transformers and circuit protection devices.

Discover GD Rectifiers wide range of IXYS semiconductor components in stock on the website here.

For further information on the new IXYS Power MOSFET, or to discuss an enquiry with our sales team, please contact us on 01444 243 452 or email [email protected].
