Littelfuse SM8S Series TVS Diodes

Littelfuse’s SM8S series of bidirectional TVS diodes offer a clamping voltage lower than alternative technologies such as MOVs and GDTs. With 7000W peak pulse power rating, SM8S provides voltage transients protection for DC power buses that may be induced by lightning or inductive switching. The compact surface mount SMTO263 package is footprint compatible with DO-218AB while enabling high power density designs and aids compliance to surge requirements like IEC 61000-4-5 (level 4).

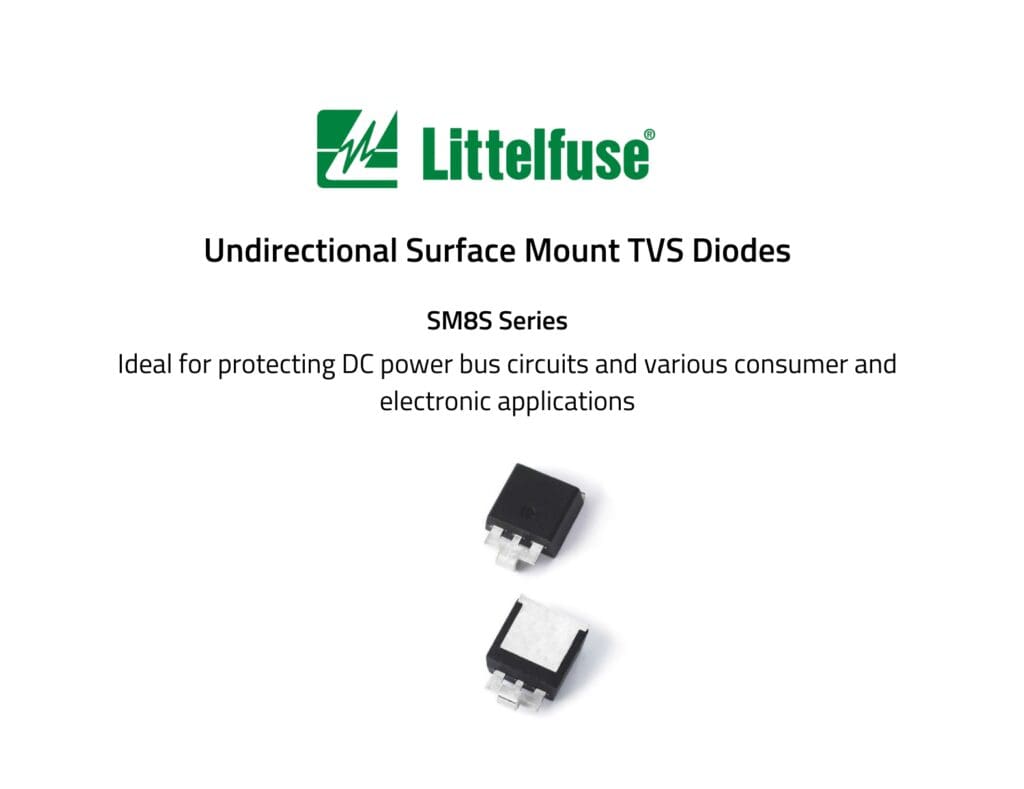

SM8S Series TVS Diode

Features

• 7000 W peak pulse power capability at 10/1000 μs
• SMTO-263 low-profile, surface-mount package minimising PCB footprint and is compatible with industrial popular DO-218AB

Benefits

• Lower clamping voltage versus alternative technologies
• Compact surface mount SMTO-263 package is compatible with automated PCBA processes

Markets/Applications

• I/O interfaces protection
• VCC bus and other circuits used in telecom and computer
• Industrial and consumer electronic applications

SM8S Series Datasheet

GD Rectifiers is an official IXYS distributor and stocks a large range of IXYS power semiconductors in stock. GD Rectifiers also has access to the Littelfuse portfolio of TVS Diodes.

For further information on Littelfuse SM8S TVS diodes or to discuss an enquiry with our sales team, please contact us on 01444 243 452 or email [email protected].
