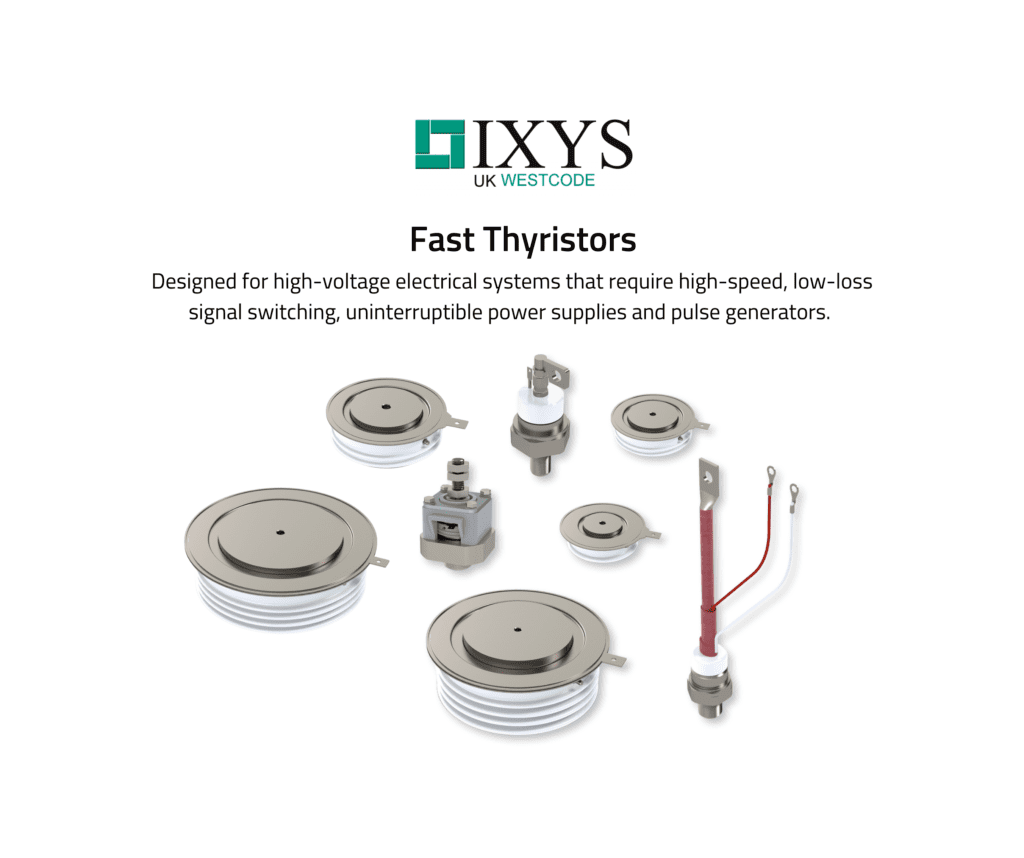

IXYS UK Westcode’s Fast Thyristors

IXYS UK Westcode’s range of Fast Thyristors are based on advanced distributed gate geometry and bonded die technology for optimum performance.

IXYS’ fast thyristors represent the most comprehensive offering available with parts featuring voltage up to 4.5kV and current ratings to >5kA, with tq from 10µs.

GD Rectifiers is the UK’s leading Westcode distributor, with a partnership spanning back over twenty-five years. GD Rectifiers offers customers Westcode’s complete range of thermal solutions, passive components, power semiconductors, circuit protection devices, including: heatsinks, power assemblies, AC capacitors, DC capacitors, fast recovery diodes, distributed gate thyristors, fast turn-off thyristors, IGBTs, gate turn-off thyristors, medium voltage thyristors and fuses.

Alongside their partnership with Westcode, GD Rectifiers is also an authorised distributor for IXYS Corporation (both now part of the Littelfuse group), and distributes their extensive range of: diodes, IGBTs, MOSFETs, rectifier bridges, SiC power MOSFETs, SiC schottky diodes, switchable current regulators, thyristors, thyristor module accessories, IGBT & MOSFET gate drivers, RF and renewable energy.

Asymmetric – Capsule Type

Asymmetric Thyristors

VDRM (V): 2400, 2800

VRRM (V): 10, 30

ITAV @ Tk=55°C (A): 516, 1237

View Part Datasheets

Distributed Gate – Capsule Type

Distributed Gate Thyristors

VDRM (V): 800, 1000, 1200, 1400, 1600, 1800, 2000, 2100, 2200, 2400, 2500, 2600, 2800, 3200, 3400, 3600, 4200, 4500

VRRM (V): 800, 1000, 1200, 1400, 1600, 1800, 2000, 2100, 2200, 2400, 2500, 2800, 3200, 3400, 3600, 4500

ITAV @ Tk=55°C (A): 472, 487, 577, 633, 717, 736, 809, 830, 878, 929,

View Part Datasheets

Fast Turn-off – Capsule Type

Fast Switching Thyristors

VRRM (V): 400, 600, 800, 1200

ITAV @ Tk=55°C (A): 295, 327, 366, 367, 389, 515, 848, 1007, 1110

ITSM 10ms Half Sine Wave (A): 2700, 3250, 3600, 4700, 5000, 6500, 8750, 9500, 12300

View Part Datasheets

Fast Turn-off – Stud Type

Fast Switching Thyristors

VDRM – VDRM (V): 400, 600, 800, 1000, 1200, 1600

ITAV @ Tk=55°C (A): 128, 240, 248, 273, 306, 311, 330, 431

View Part Datasheets

Pulse Power – Capsule Type

Pulse Thyristors

VDRM (V): 2500

VRRM (V): 2000

VDC [Thy] (V): 1500

View Part Datasheets

For further information on IXYS UK Westcode’s range of Fast Thyristors, please contact GD Rectifiers on: 01444 243 452 or email: [email protected].
